In this 96 step mega-tutorial, you will go through all the motions necessary to construct a complete, photorealistic kitchen scene in Blender, and then render it with Yafaray (a free ray tracing, open source rendering engine). Make sure that you have Yafaray and Python 2.5 installed. For more information on installation check out www.yafaray.org.
Model, Texture, and Render a Photorealistic Kitchen in Blender and Yafaray
Jul 8th in 3D Art, Blender, Tutorials, Yafaray by Karan Shah

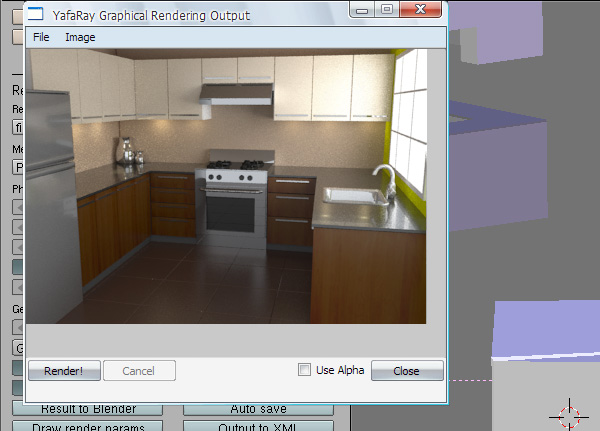

Final Effect Preview
Step 1

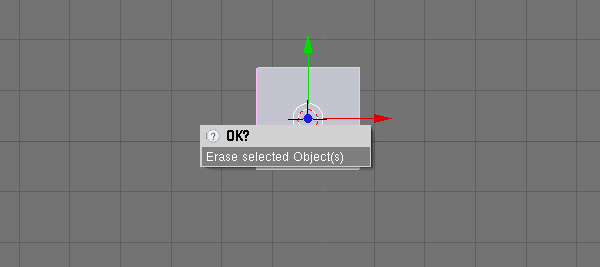

Press "a" to select all default objects (cube, camera, and light) and then press delete.
Step 2

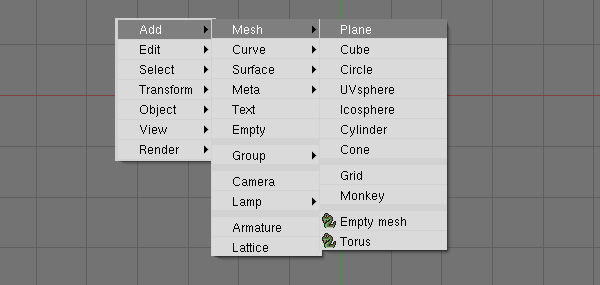

With the mouse in the 3D view, press "Space", and add a plane.
Step 3

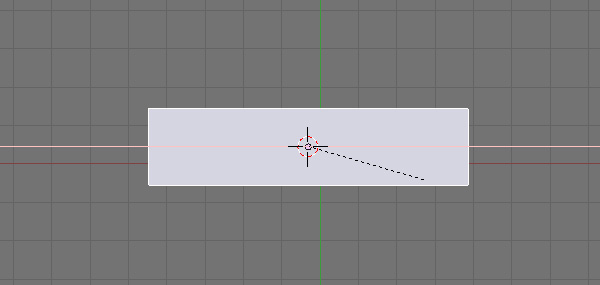

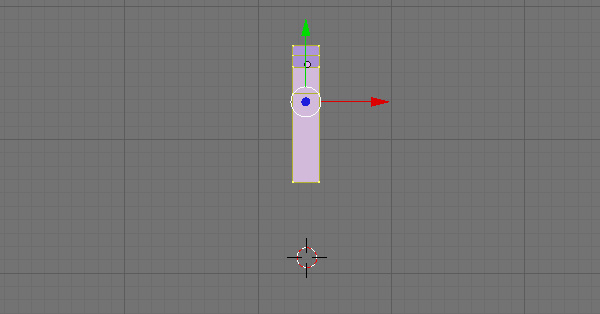

Scale the Plane along the 'X' axis, by pressing "S", then "X", and moving the mouse. Left click the mouse to release.
Step 4

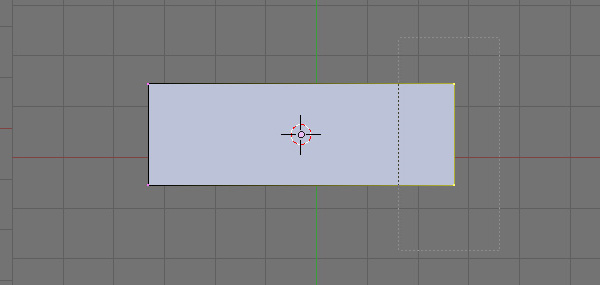

Press "TAB" to enter into 'edit' mode. Then press "B", and drag select the vertices on the right.
Step 5

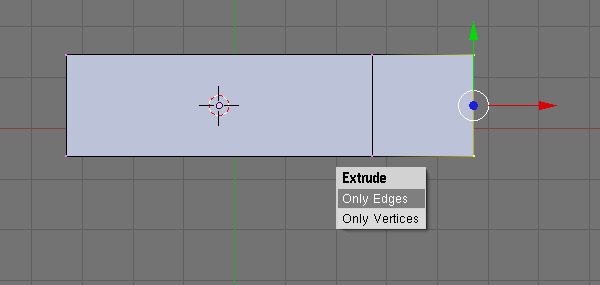

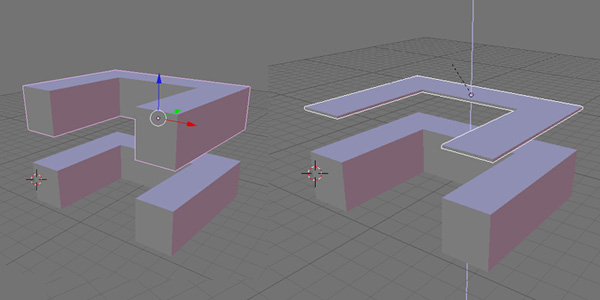

Press "E" to extrude the selected edge. Move the mouse along the 'X' axis, and press "ctrl" while moving. You can also use the widget arrows to move.
Step 6

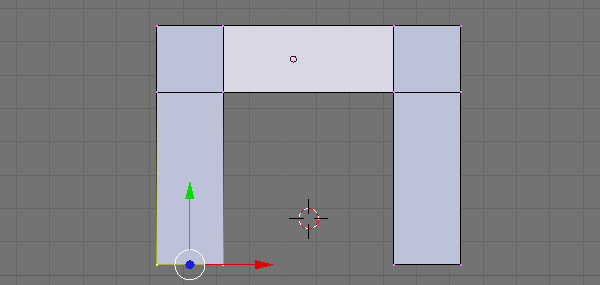

Extrude the edges of the plane to get the "C" shape as shown.
Step 7

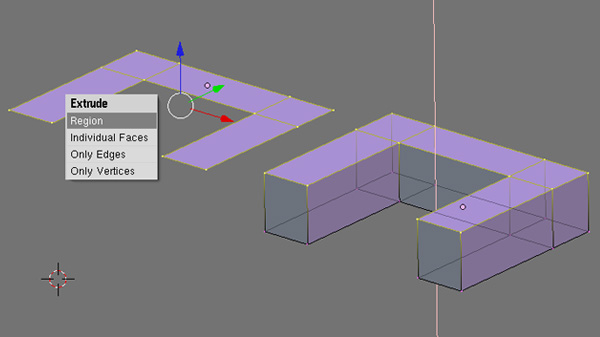

Select all of the vertices by pressing "A", and extrude the region to an adequate height.
Step 8
Press "TAB" to get out of 'edit' mode, then select the mesh, and press "shift + D" to duplicate it. Scale it down along the 'Z' axis. This new object will be the top slab.
Step 9

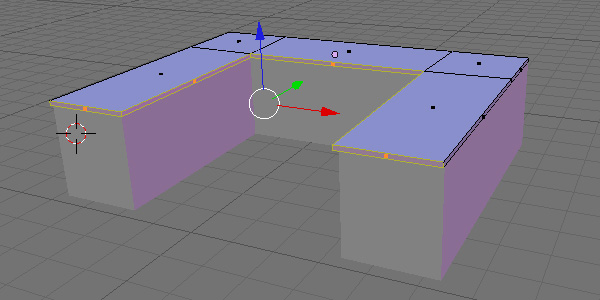

Place the slab right on the top of the base. Pull out the faces a bit to make it slightly bigger than the base, then press "Tab" to exit 'edit' mode.
Step 10

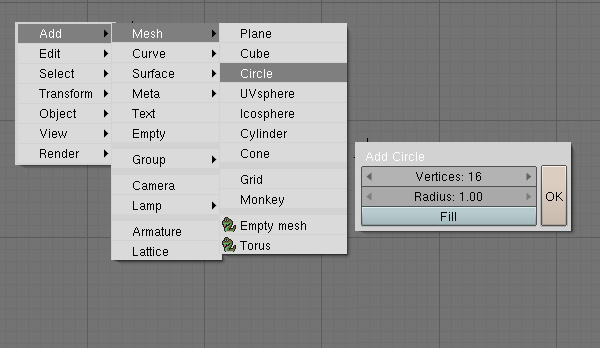

For the sink, add a cylinder with 16 vertices. Make sure you are in the top view.
Step 11

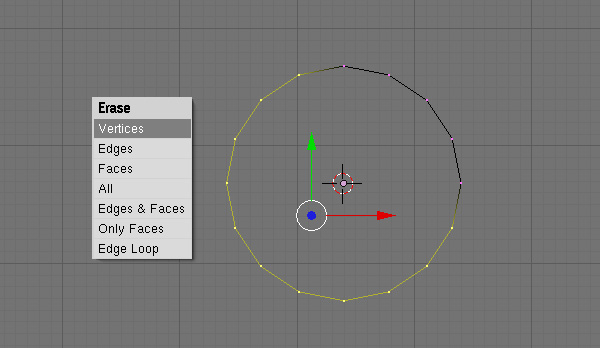

In 'edit' mode, select all of the vertices, as shown, and delete them.
Step 12

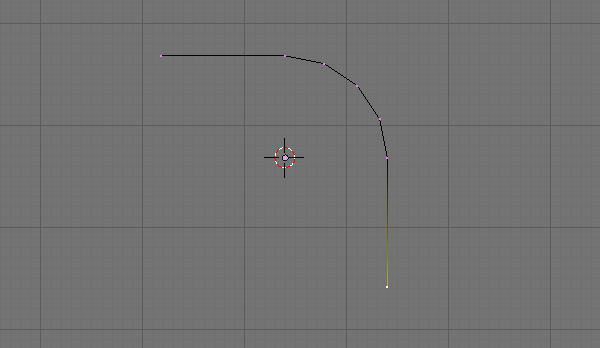

Extrude the vertices. This will be the corner of the sink.
Step 13

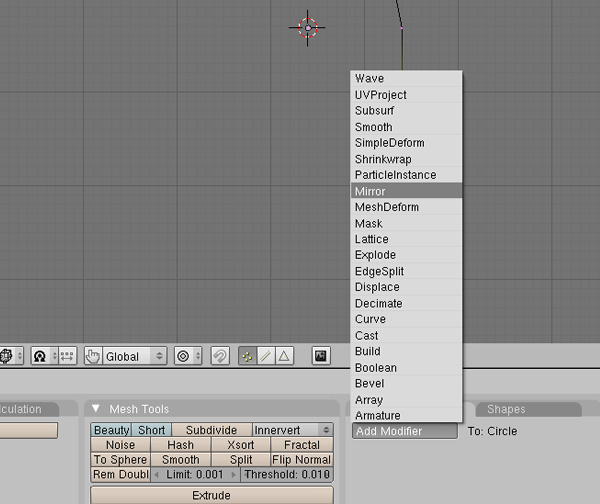

Press "F9" to bring out the "Editing" panels. Add a "Mirror" modifier.
Step 14

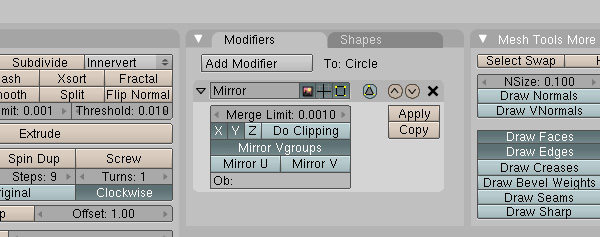

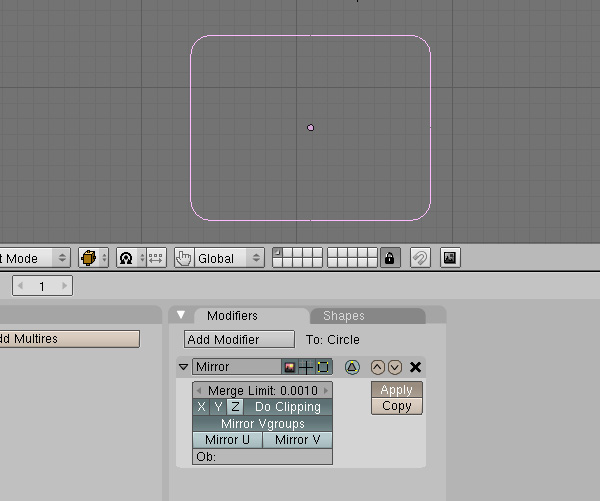

Enable both 'X' and 'Y' "Mirror" settings.
Step 15

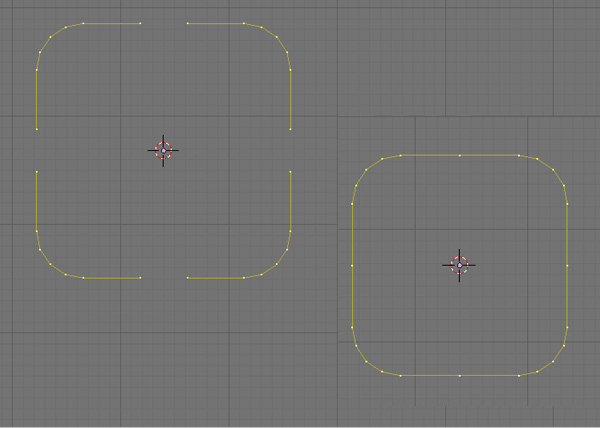

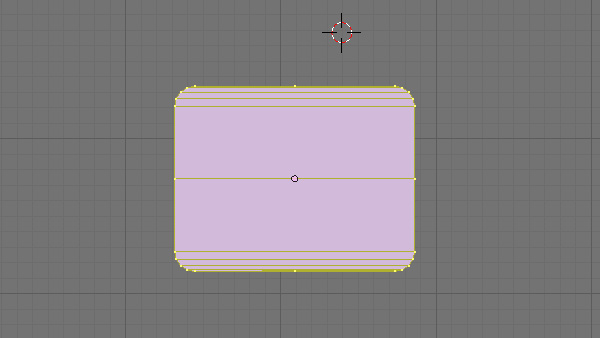

In 'edit' mode, adjust the position and scale of the vertices, to form a base for the sink. Bring the extreme vertices together, and press "Do Clipping" in the "Mirror" modifier panel. This will make the center vertices stick together.
Step 16
Press "Tab" to get out of 'edit' mode, then press "Apply" in the "Mirror" modifier panel.
Step 17
Again, in 'edit' mode, select all of the vertices ("A"), and press "shift + F" to fill the mesh. Then press "alt + J" to make quad faces.
Step 18

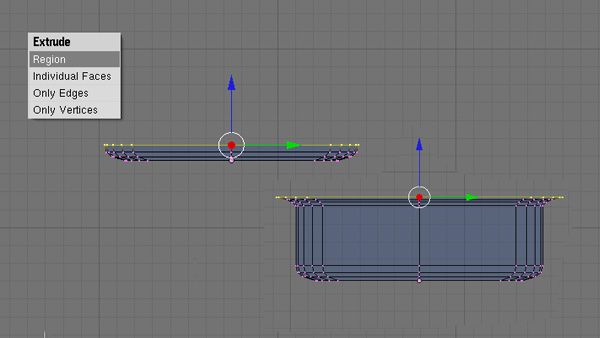

Select all of the vertices and extrude them, shaping it into a sink.
Step 19
Select the topmost faces and delete them.
Step 20

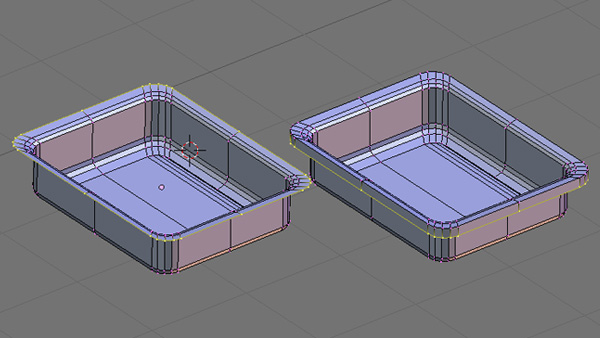

Hit "alt + Right click" on the last edge to select an edge loop. Extrude it downwards, and then exit 'edit' mode.
Step 21

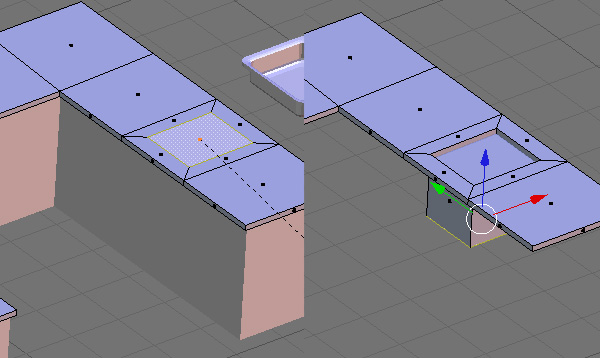

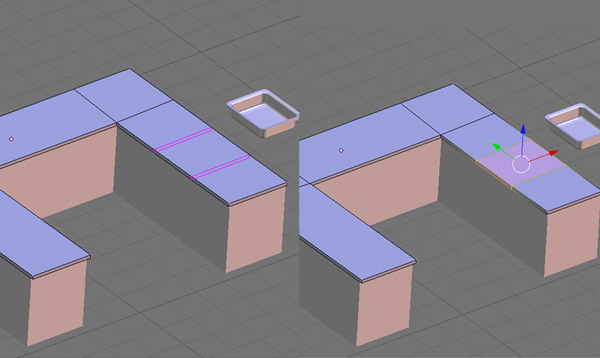

Cut a hole in the slab for the sink, by selecting the slab, entering 'edit' mode, and pressing "ctrl + r" to loop cut. Cut it twice.
Step 22
Select the new top face, and press "e" to extrude. Now press "Esc" to exit extrude, and leave the new face in place. Extrude this face downwards.

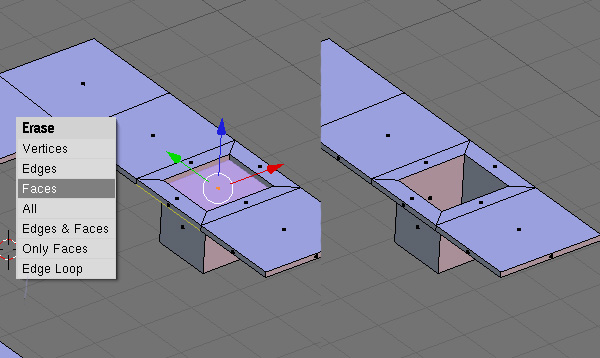

Step 23

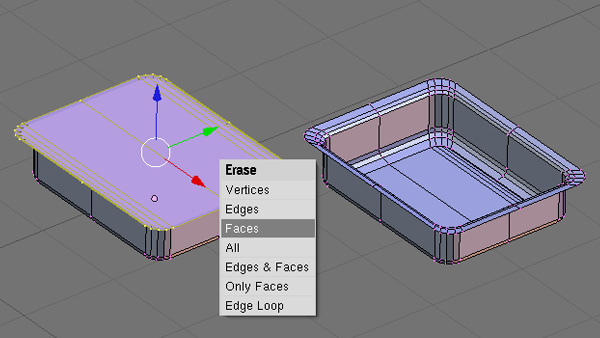

Select the unwanted face (the lower face of the slab) and delete it.
Step 24

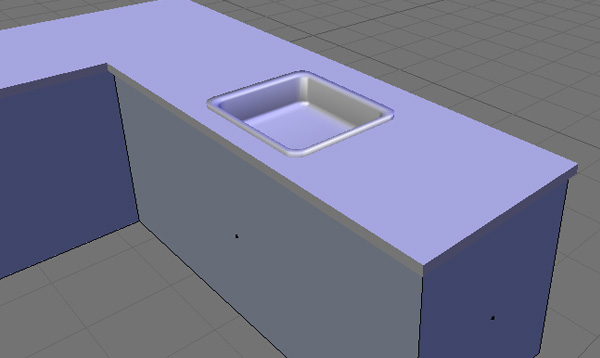

Place the sink on to the slab. Adjust the vertices of the slab accordingly, and delete the unwanted face of the base mesh.
Step 25

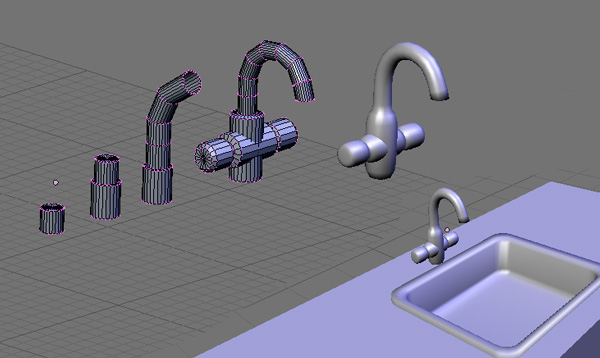

Create the tap as shown, and then add a "subsurf" modifier to it. Place it near the sink.
Step 26

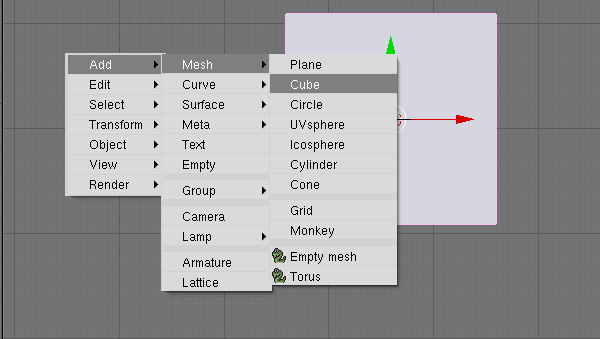

For the stove, start with a cube.
Step 27

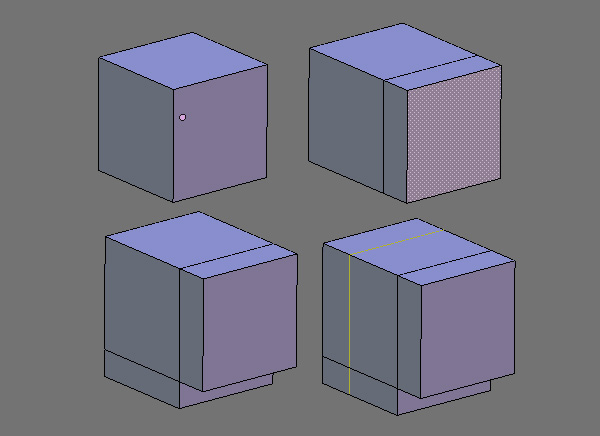

Extrude the front and bottom face. Loop cut the cube once.
Step 28

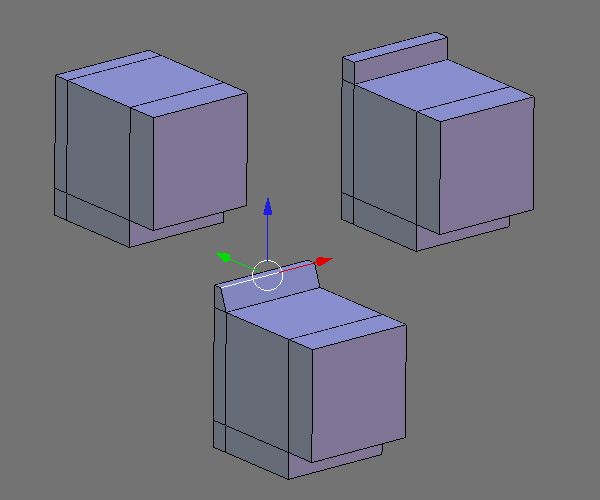

Extrude the new face at the top, and translate the edge to get the shape right.
Step 29

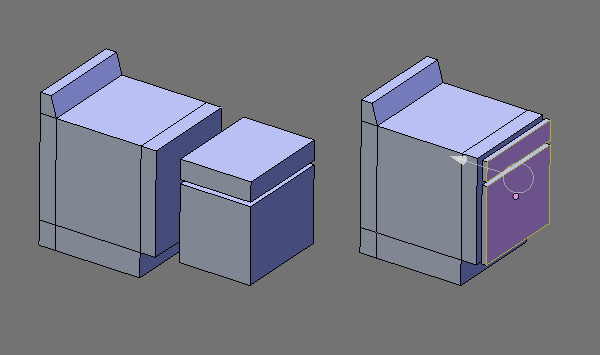

Add two new cubes, scale them, and then move them closer to the main body.
Step 30
Extrude the front face of the lower cube, and then scale it down.
Step 31
Extrude this same face again, and push it slightly inward.
Step 32

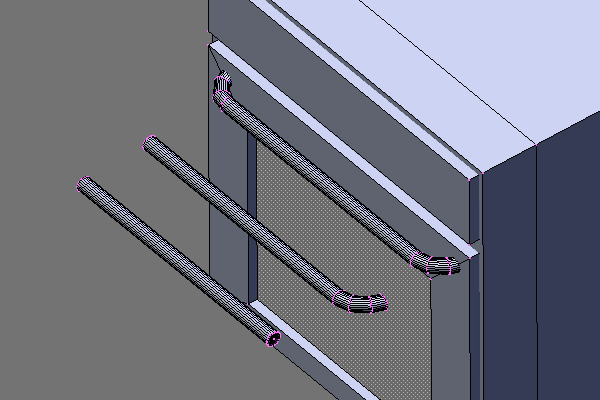

Construct the handle from a cylinder as shown, and then move it into position.
Step 33

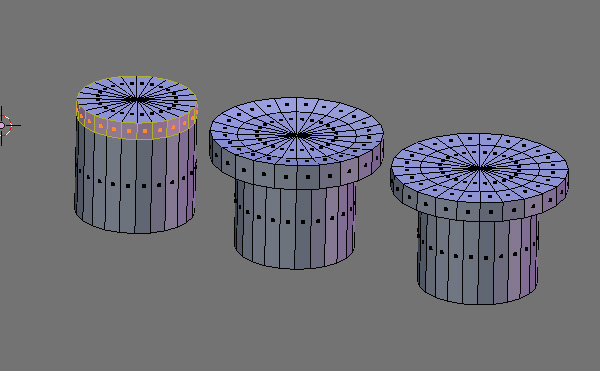

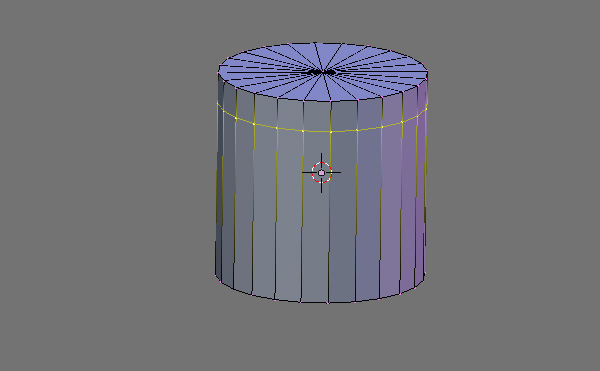

Add a cylinder, and loop cut it once.
Step 34
Select the new faces, by pressing "alt + right click" to loop select, and then extrude them.
Step 35
Build the following shape from a box as shown.
Step 36
In the top view ( num pad 7), place the 3D pointer in front of this new shape.
Step 37

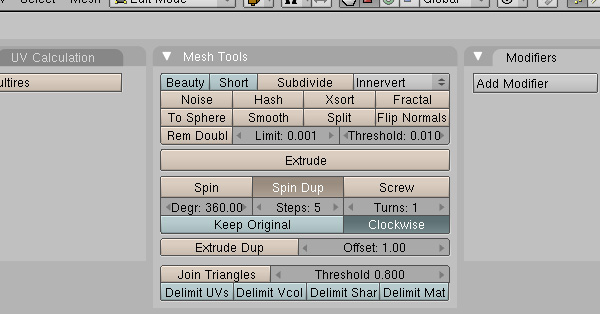

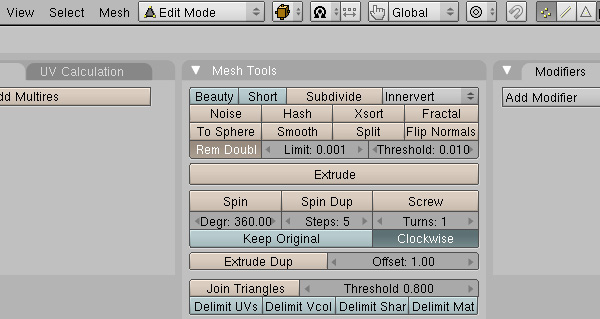

Press "F9" to bring up the "Edit" buttons. In the 'Mesh Tools' panel, increase the "Degr" value to '360', the "Steps" to '5', enable "clockwise", and finally press the "Spin Dup" button.
Step 38

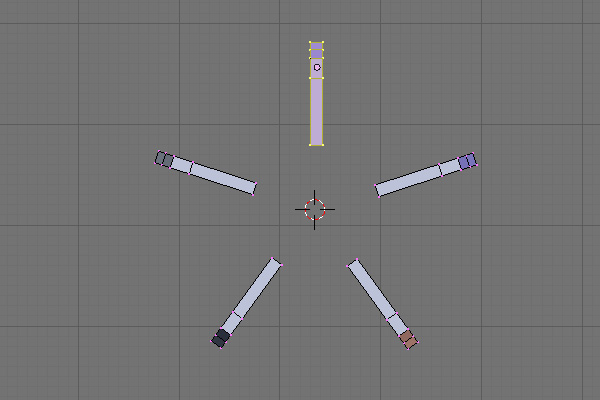

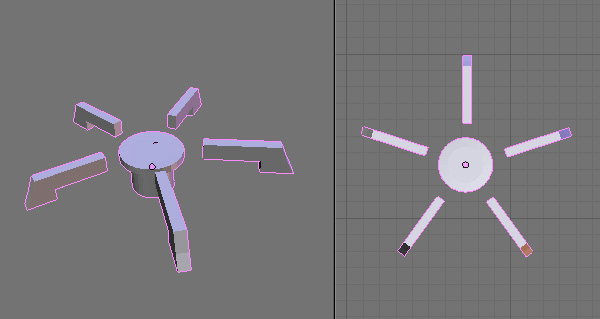

Click on the 3D view, and there will be five duplicates in a circular pattern. Make sure you are in the top view.
Step 39
Select all of the vertices by pressing "A", and then press the "remove double" button to remove any extra duplicated vertices.
Step 40
Place the two parts together as shown.
Step 41

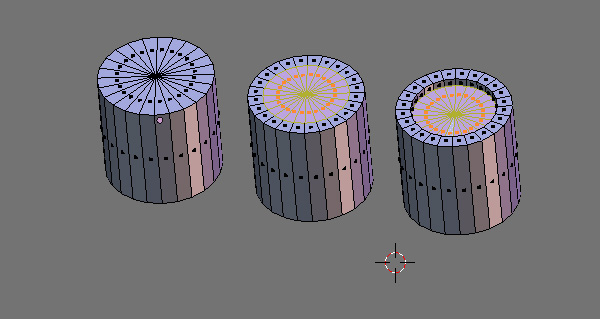

Add a cylinder. Extrude its top, scale it down, and then extrude it inwards.
Step 42
Put all of the parts together, and then re-size the cylinder. Press "ctrl + j" to combine the parts, and make them one single object.
Step 43

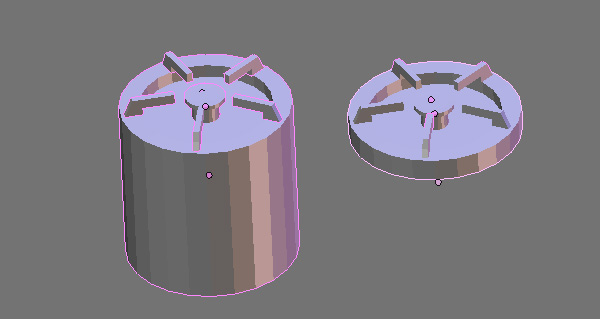

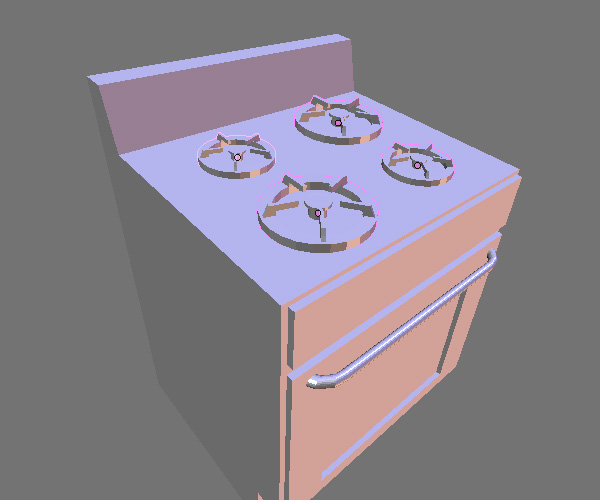

Place this new piece on the top of the stove (it will be the burner...if you hadn't already noticed:P). Duplicate it three times and place the burners accordingly. Scale two of them down.
Step 44

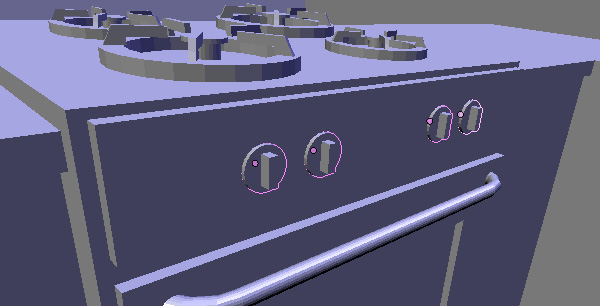

Construct the knob using a cylinder and a cube joined together. Duplicate it three times.
Step 45

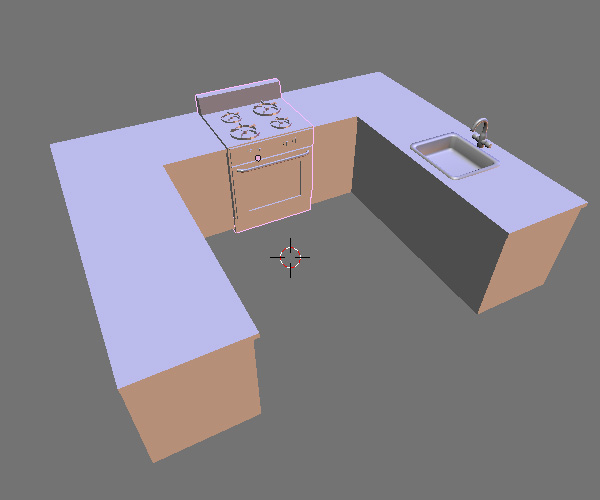

Place the stove into position, and scale it accordingly.
Step 46
Duplicate the base, and move the vertices to make it thinner.
Step 47

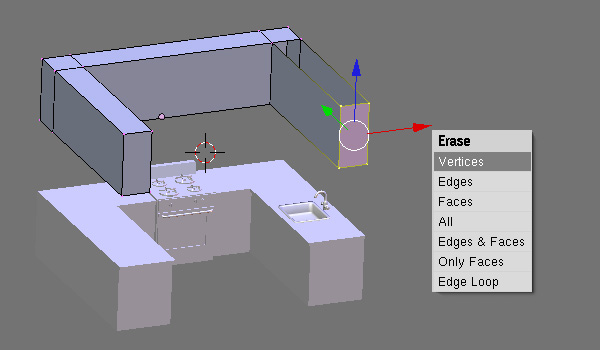

Delete the four vertices as shown.
Step 48

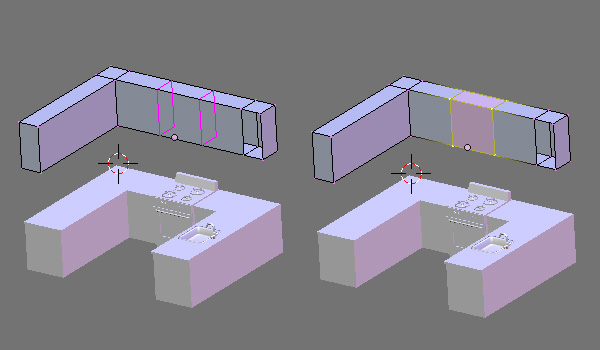

Loop cut the front portion twice.
Step 49

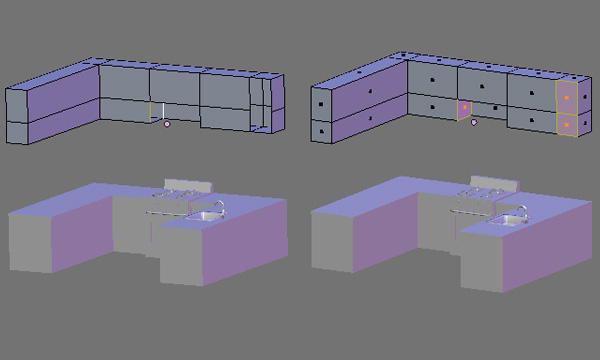

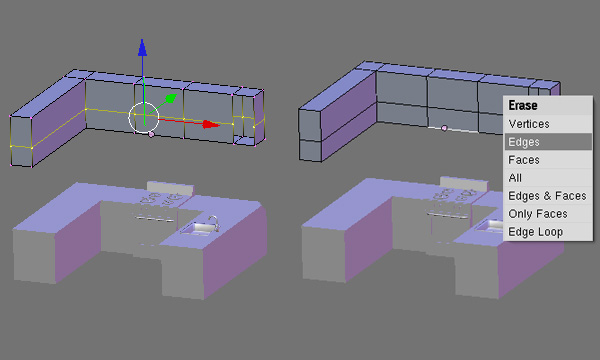

Loop cut it again horizontally, and delete the edge as shown. This will be the space for exhaust.
Step 50
Select four Vertices, or two opposite edges, and then press "F" to a make face.
Step 51

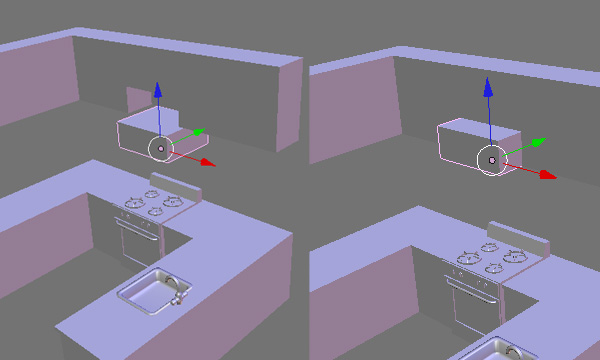

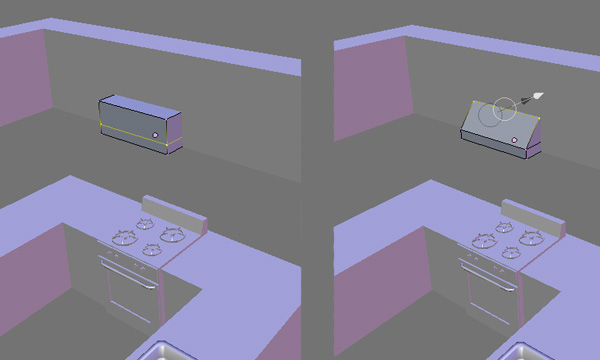

Add a cube, scale it down vertically, and place it above the stove.
Step 52
Loop cut the cube, and then push the top vertices in.
Step 53

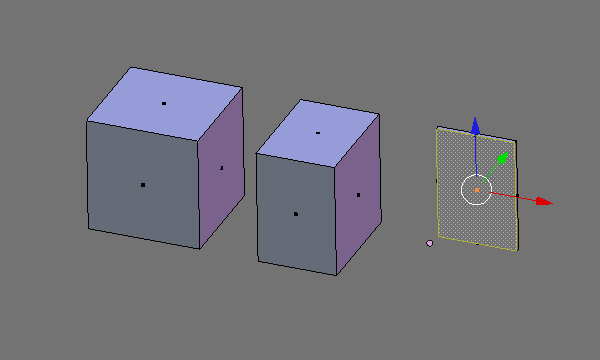

Add another cube, and scale it in on one axis. This will become the doors of the cabinets.
Step 54

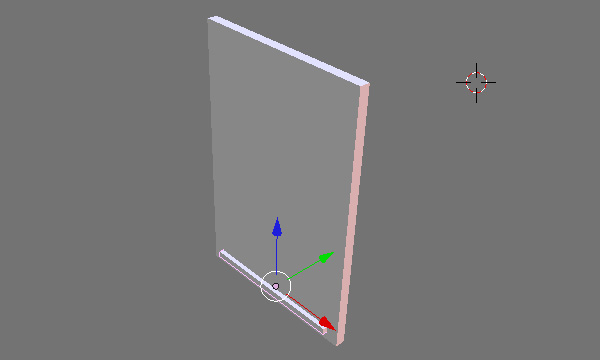

Add another cube, and scale it to make the handle. This should be a separate object.
Step 55
Press "B" to activate the "select" tool. Now drag select both objects, and then press "shift + D" to duplicate and place them around the upper shelf. Scale them accordingly.
Step 56

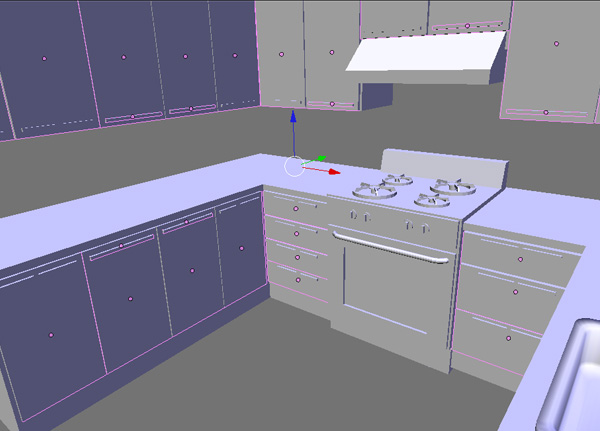

Duplicate them again to make the doors for the lower base. You can make drawers too if you like. The handles should be at the top for the doors on the lower base.
Step 57

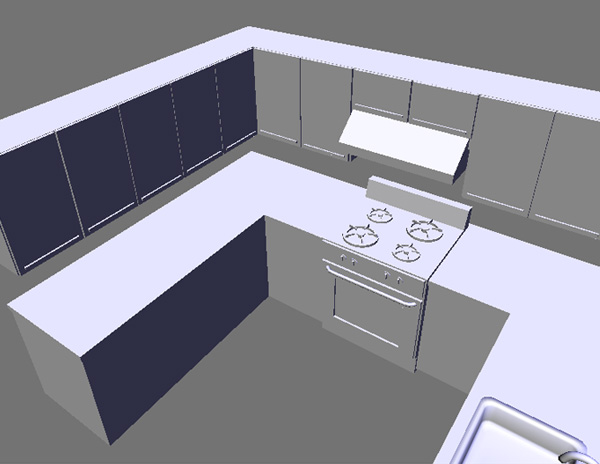

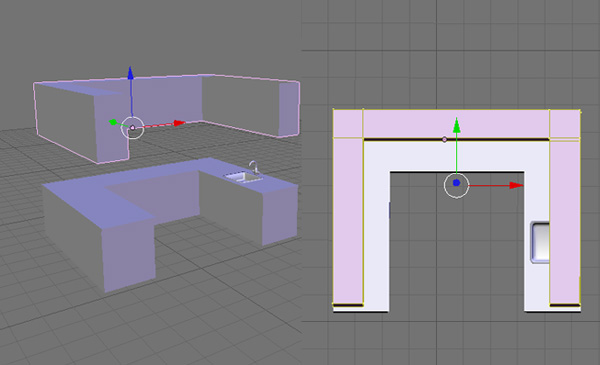

Start adding walls. Add a plane, and re-size it accordingly.
Step 58
Extrude the edges of the plane.
Step 59

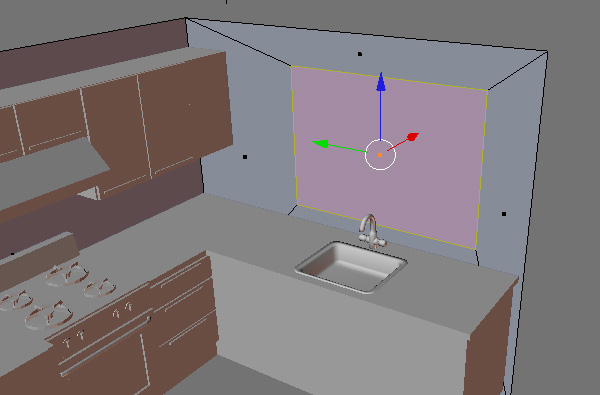

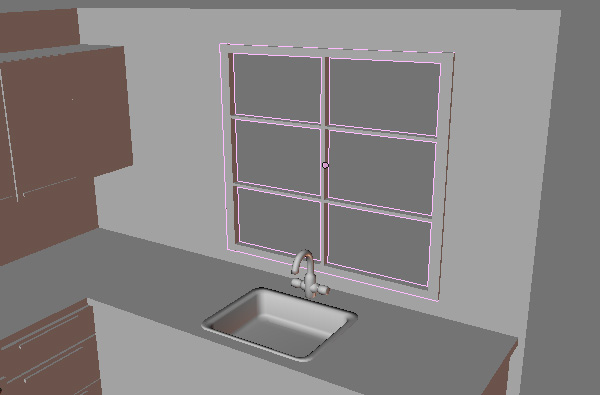

To cut a window, select the face of the wall and extrude it, by pressing "E" to extrude, then immediately pressing "esc", and then scaling it down. Position it where you want the window.
Step 60
Delete the face.
Step 61

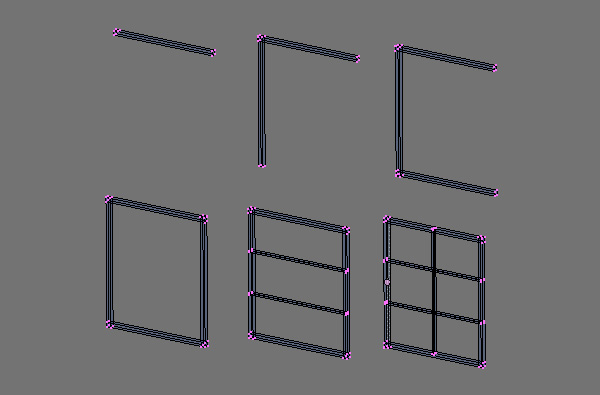

Construct the window frame from boxes as shown.
Step 62
Now place it onto the wall.
Step 63

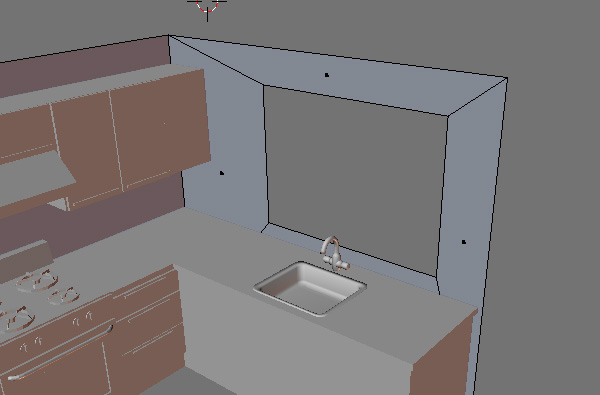

Add more planes for the floor and ceiling.
Step 64

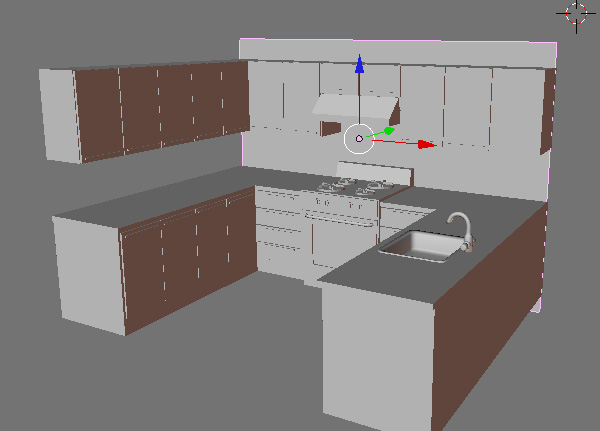

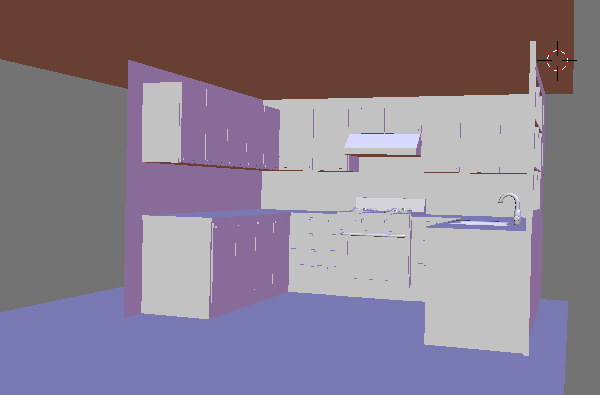

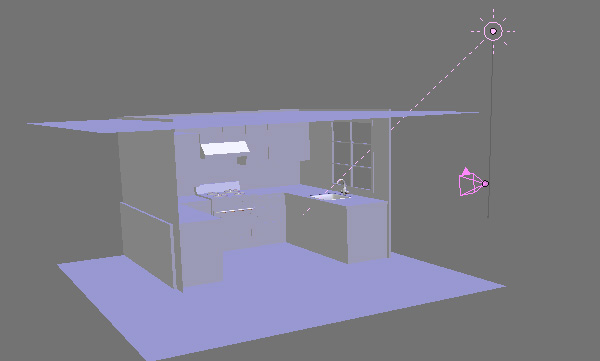

Add a camera, and a "sun light". Point the light direction as if it were entering through the window.
Step 65

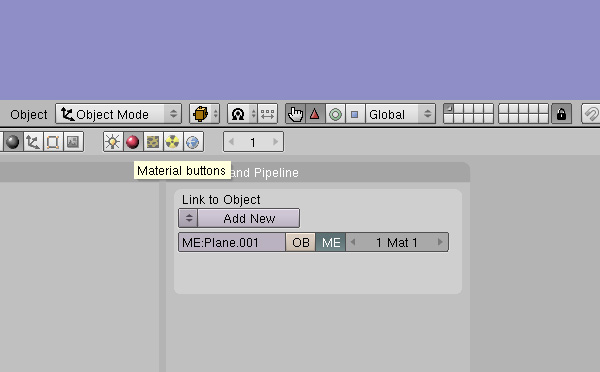

Time to start adding materials. Press "F5" to bring out the "materials" panel in the "button" window.
Step 66

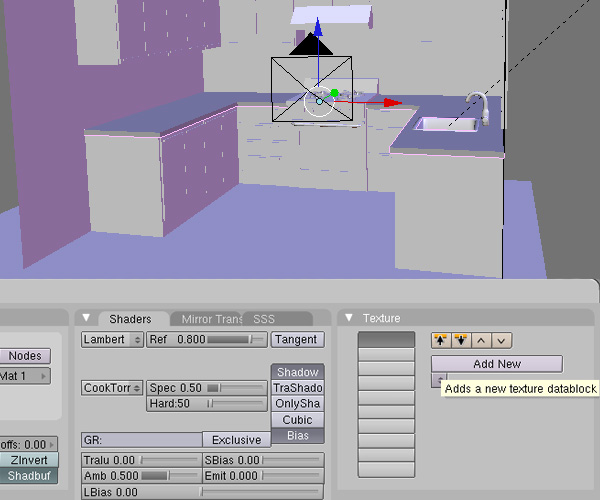

Select the slab, and press the "Add New" button, in the "texture" panel. Don't bother about editing the color, or any of the other details for the material settings. There are separate material settings under the "Yafaray" rendering options. Colors, gloss, and other attributes will be defined there. Just add an image texture in the Blender materials, and name this material "slab".
Step 67

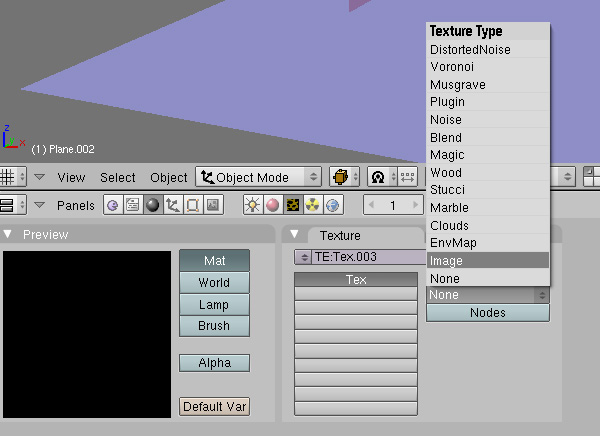

Press "F6" to bring out the "texture" panels. Select "Image" under "Texture Type".
Step 68

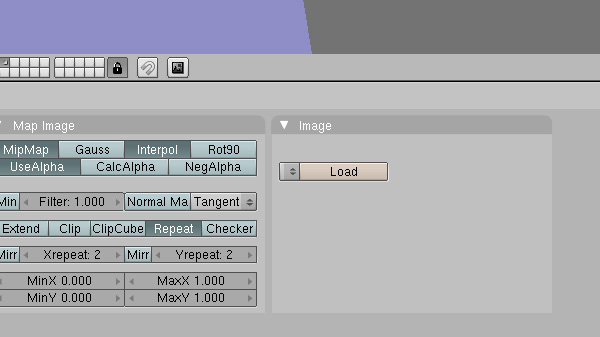

Load the image you want to assign for the slab. A Dark green marble will be good.
Step 69

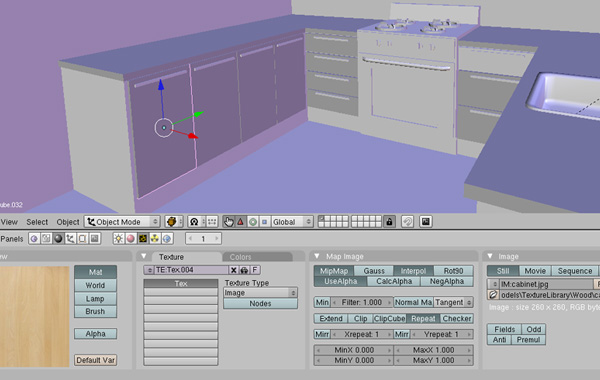

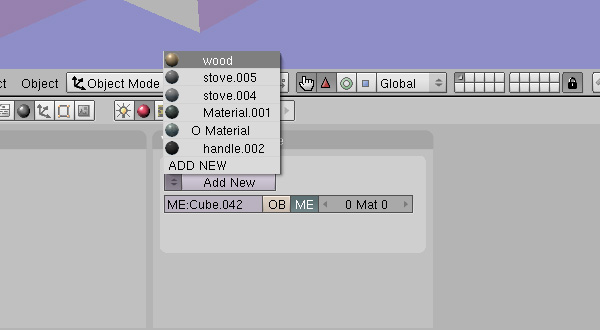

Similarly, assign a wood texture image to the cabinet, and name the material "wood"
Step 70
To assign the same material to different objects, select the object, and in the "material" panel, press the arrow button on the left hand side of the "Add New" button, and then select the texture from the list to assign it.
Step 71

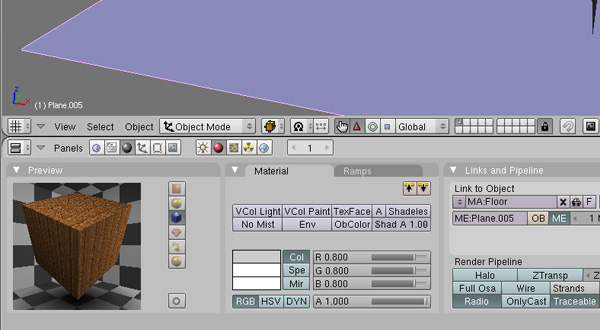

Assign a different wood image texture to the floor, and name it "Floor". For the rest of the objects (like metal) where no images are required, the materials will be assigned under the "Yafaray" material settings.
Step 72

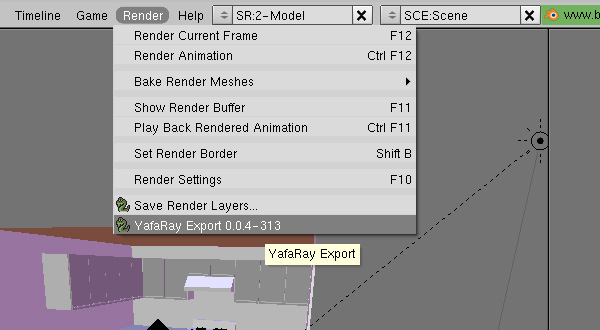

Split the 3D view in two. From the "Render" menu, select "YafaRay Export", and you should get the "Yafaray" button window.
Step 73

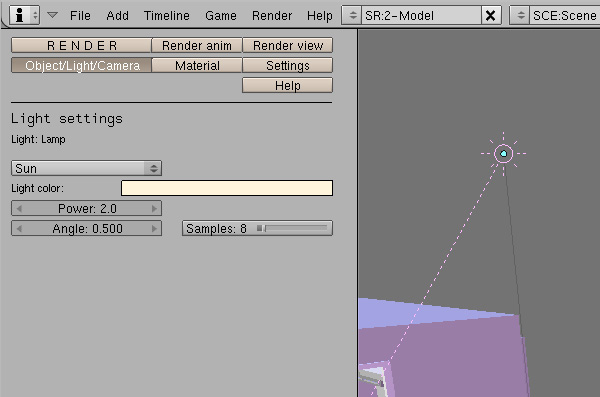

Select the "Sun Lamp" in the 3D view. Press the "Object/Light/Camera" button in the "YafaRay" button panel. Select "Sun", increase the power to 2.0, and change the color.
Step 74

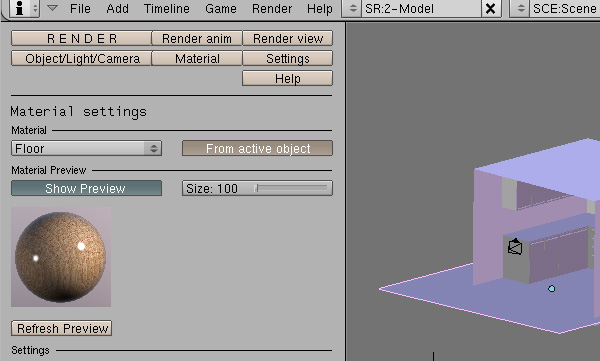

Select the floor mesh, then press the "Material" button in the "Yafaray" button window, and press "From active object".
Step 75

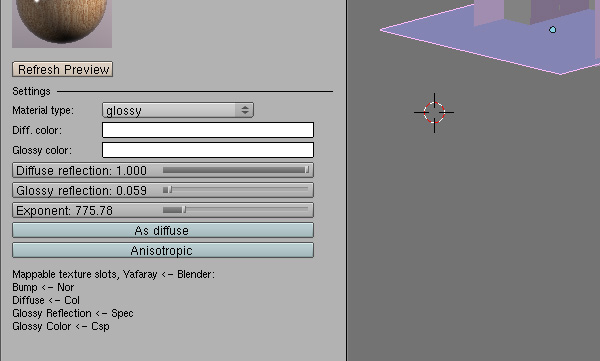

Bellow the "Refresh Preview" button, under the settings panel, select "Glossy" as the material type. Turn the "Glossy reflection", and "Exponent" sliders up a bit.
Step 76

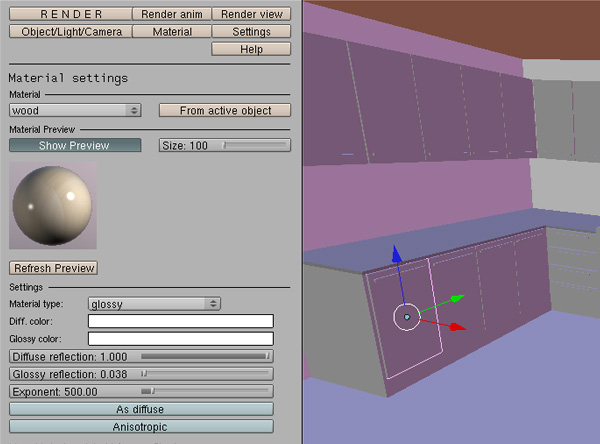

Similarly, set the materials for all of wooden cabinets.
Step 77

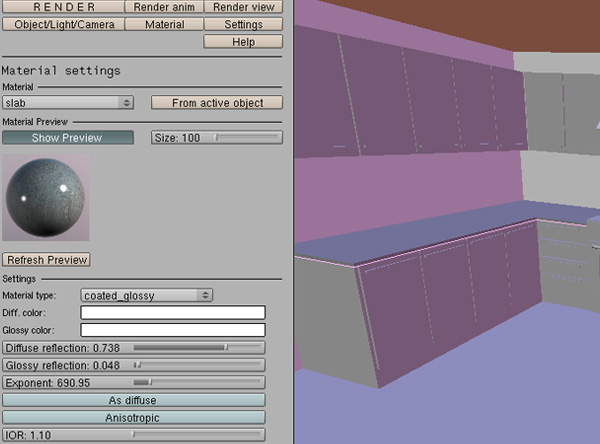

Use a "coated_glossy" material for the slab. The new "IOR" value will give it a mirror like reflection, in addition to the gloss. Always be sure to add and name the materials in Blender first, and then press "From active object" in the "Yafaray options", so the material will be added using the same name in the "Yafaray" material list.
Step 78

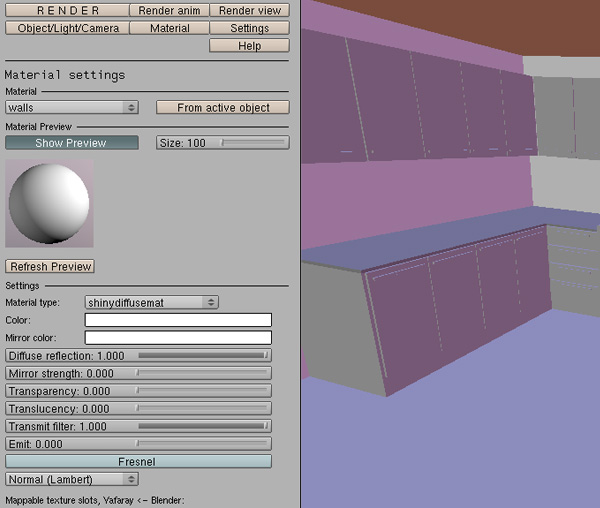

Add a "shinydiffusemat" material for the wall.
Step 79

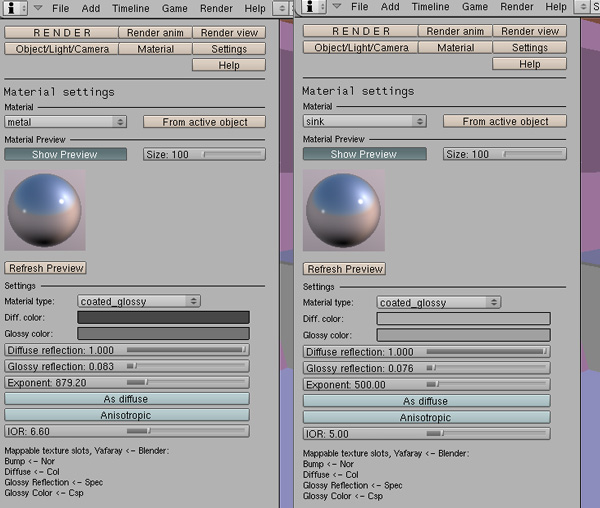

Set a "coated_glossy" material type for the sink, tap, chimney, cabinet handles, and stove (but a lighter one for the the sink and tap).
Step 80

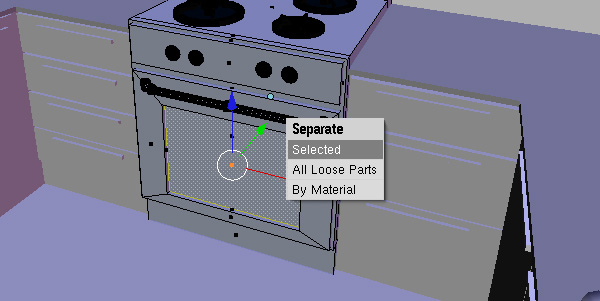

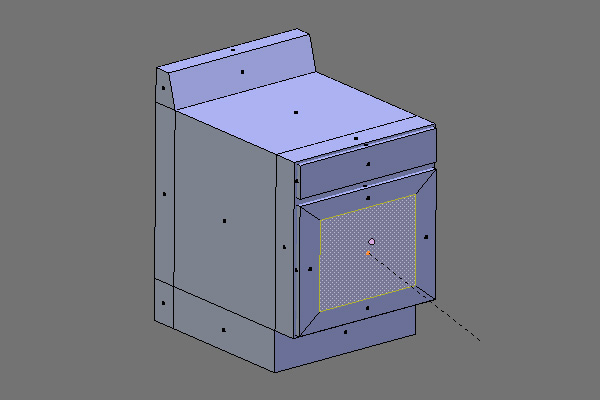

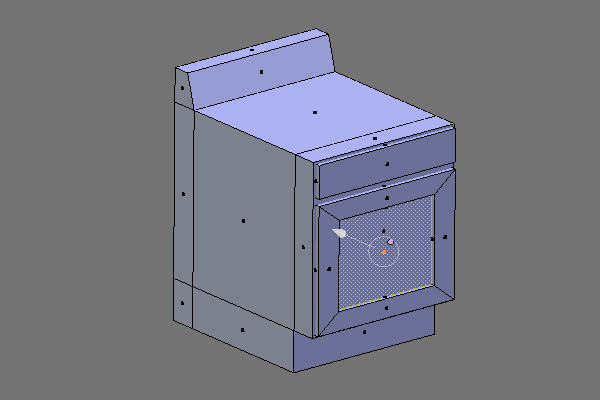

Select the front face of the oven in 'edit' mode, and press "P" to make it a separate object.
Step 81

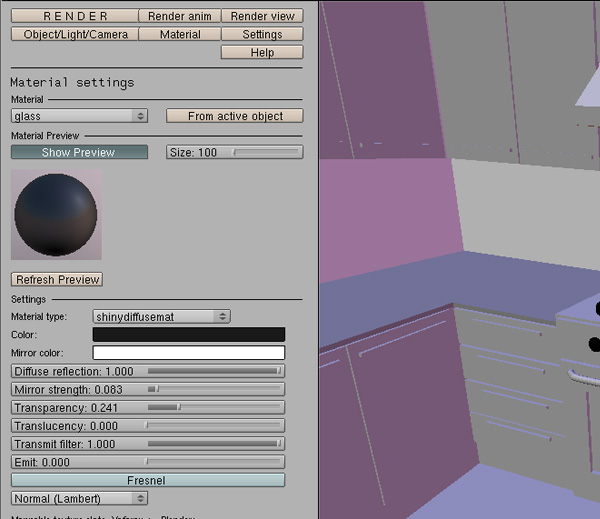

Add new material in the Blender "material" panel, and name it "glass". Select the new object, and press "From active object" in the "Yafaray" material settings. Use "shinydiffusemat" as the material type, and give it a dark colour, and a bit of mirror strength and transparency.
Step 82

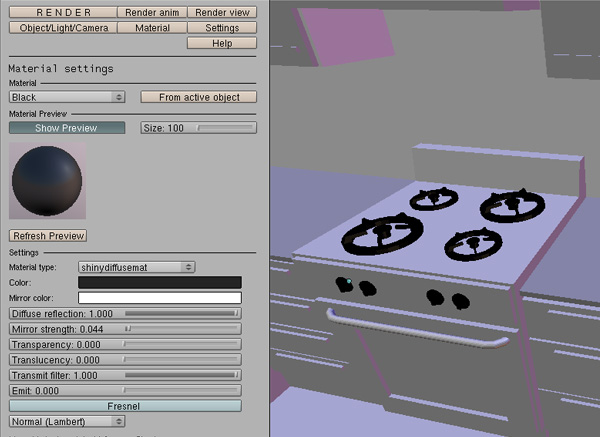

Add a black material to the stove burner and knobs.
Step 83

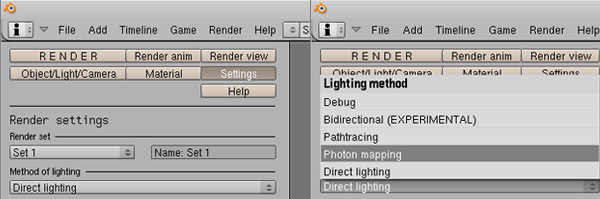

Press the "Settings" button in the "Yafaray" window, and change "Direct mapping" to "Photon mapping".
Step 84

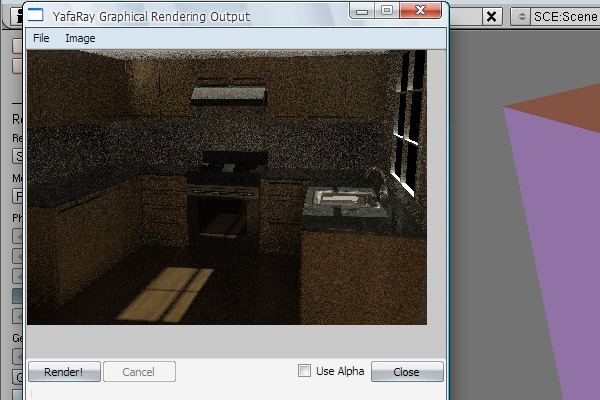

With the rest of the settings untouched, press the "Render" button in the "Yafaray" window. This is just to check the results we get with the default settings of photon mapping. You should get something noisy, as depicted below.
Step 85
Under the "Photon settings", enable "Use background". This will use the background's light and colour values. Under the "Background settings" select "Single Color", and choose a sky blue color.

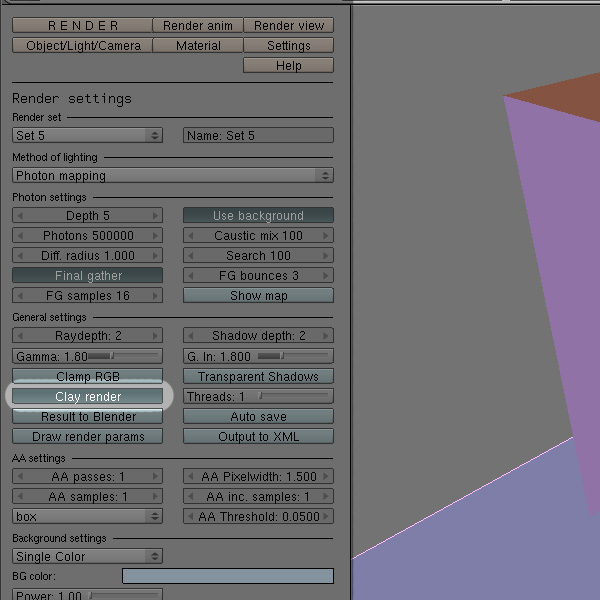

Step 86

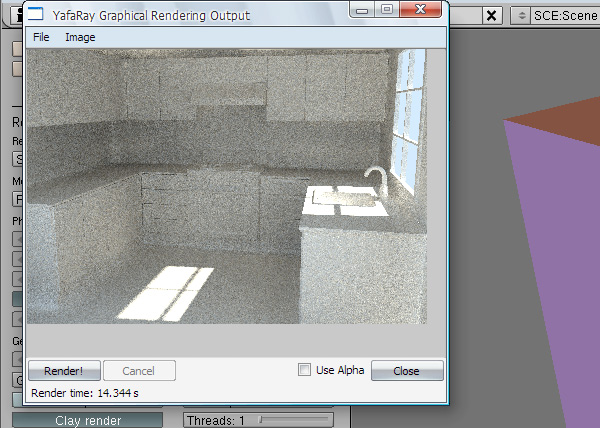

Before rendering any other image, enable "Clay Render" under the general settings options. This will discard all of the material options, and render all objects with one single material, which will make the rendering a bit faster, and help you to check your lighting and shadows before doing the final render.
Step 87
Push "Render" to see the difference. "Yafaray" should now use the color and light values from the background, but it should still have noise.
Step 88

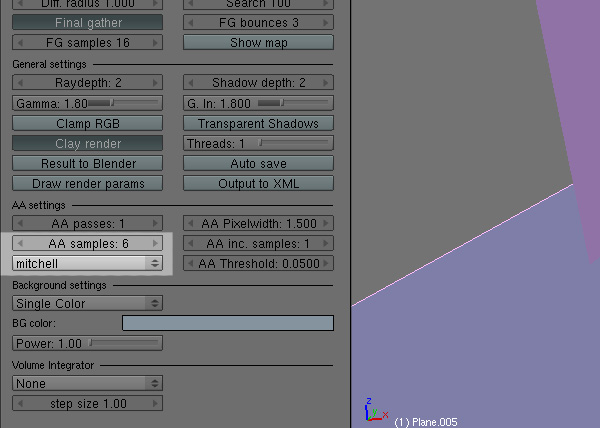

Under the "AA settings" increase the "AA sample" to '6', and set the type to "mitchell".
Step 89
Press "Render", and the results should look much better.
Step 90

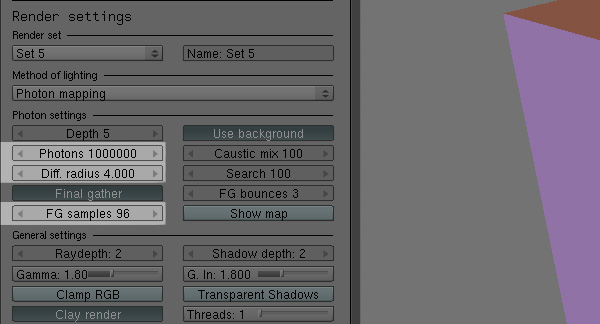

To correct the light leaks in the corners, increase "Photons" to '1000000' or more, and "Diff.radius" to '4'. To further reduce the noise, increase the "FG samples" to '96'.
Step 91

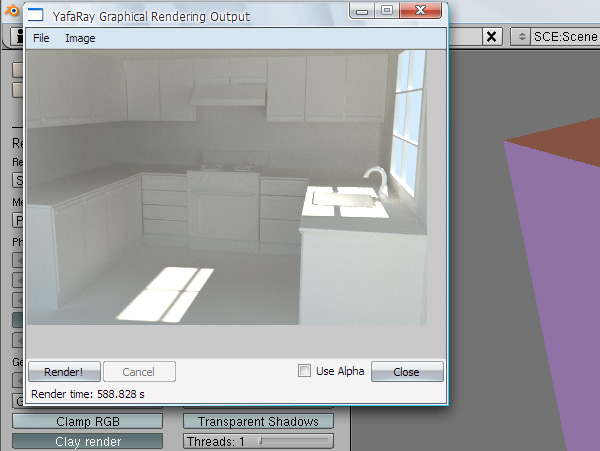

Now the result should be much richer, and less noisy.
Step 92

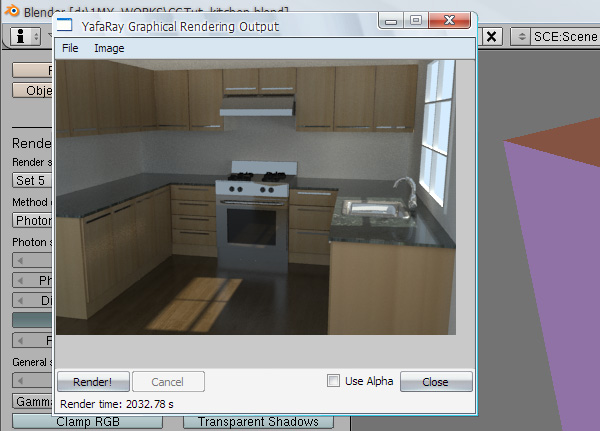

Turn off "clay render", and render again.

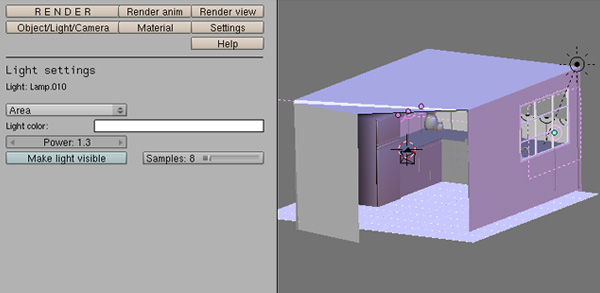

Step 93
Add an 'Area Light' just outside the window, facing inwards, and few 'lamps' under the top cabinets.
Step 94

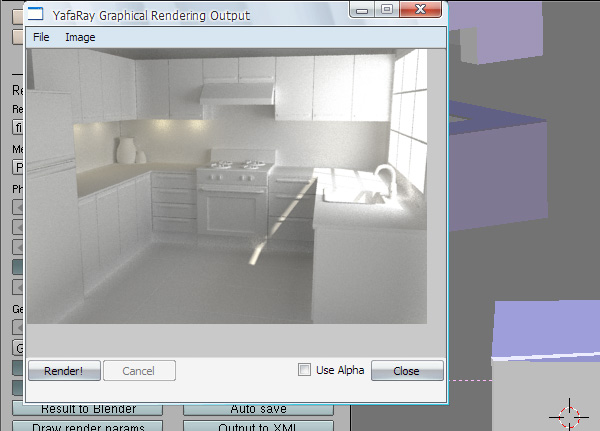

Do a quick clay render, and notice the difference between this image and the last clay render.
Step 95
Turn off "Clay render" to see the new results with the materials applied.
Step 96
Now you can play with the different materials, colors, and light settings...
Step 97
until you are totally happy with your results!
Final Effect
Hope you enjoyed this tut!!
