Tutorial Details
- Software: Cinema 4D with Advanced Render and Mograph modules.
- Difficulty: Intermediate.
- Completion Time: 30 min - 1 hour.
- Additional Files/ Plugins: Scene Files.
Final Product What You'll Be Creating
In this tutorial you will discover how easy it can be to create compelling abstract CG images with Cinema 4D. Follow along as Konstantin Muromtsev demonstrates how he created his animated Disco Ball scene, using primitives, structure tools, the Mograph Cloner object, and random effectors. Adding post effects like Caustics and Glow, and rendering the scene with Advanced Render will also be discussed.
Step 1
Create sphere object with a Radius of around 180m (Objects > Primitive > Sphere), and make it editable (Functions > Make Editable or C on keyboard).
Step 2

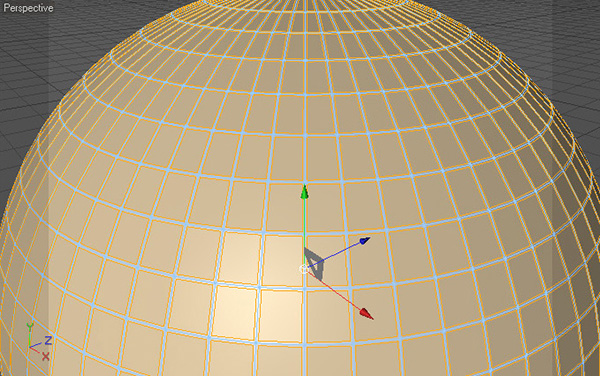

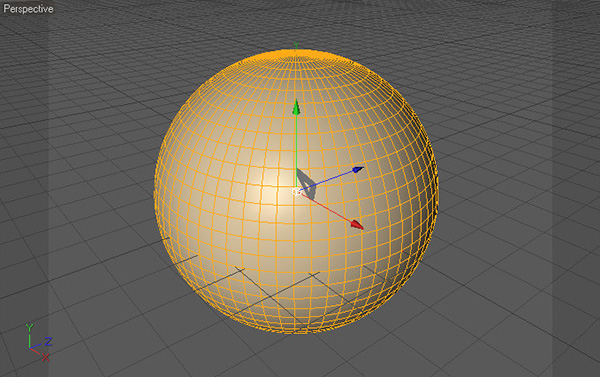

Select all polygons (ctrl+A), and use Extrude Inner (I on keyboard) with an Offset of 0.75m and the Preserve Groups option unchecked.
Step 3

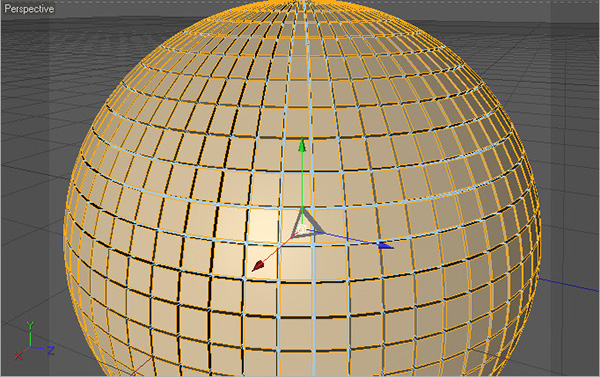

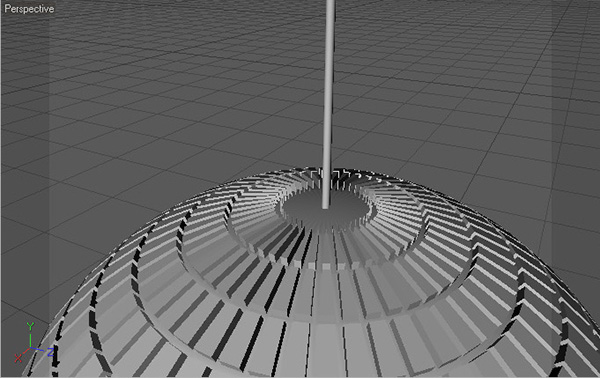

Extrude the selected polygons with offset of around 4m. Press Selection > Set Selection.
Step 4
Create a Cylinder object (Create > Primitive > Cylinder) with a Radius of 2m, and the height around 1000m. Move it above the sphere. Make the sphere a parent object to the cylinder (in the object manager, drag the cylinder object into the sphere).
Step 5
Create a plane object (Create > Primitive > Plane), with a Width and Height of 3800m, and +Y orientation. Move the Sphere object upward a bit.
Step 6

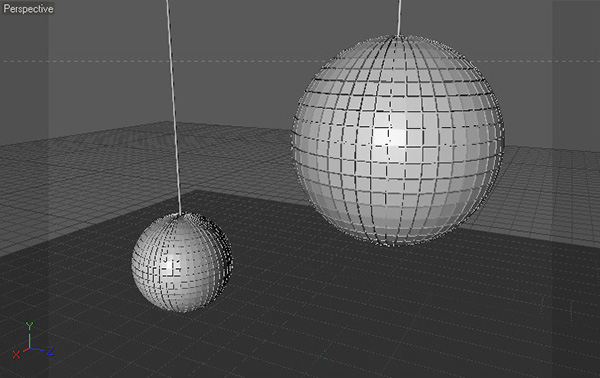

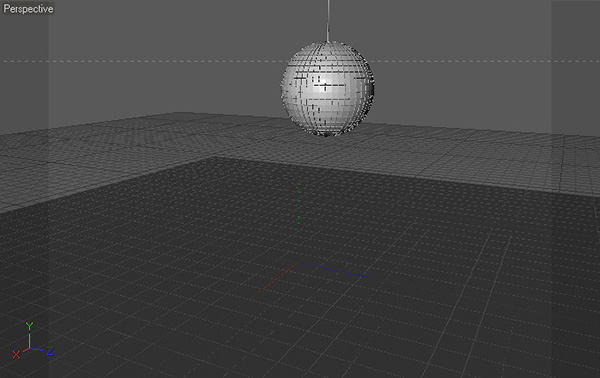

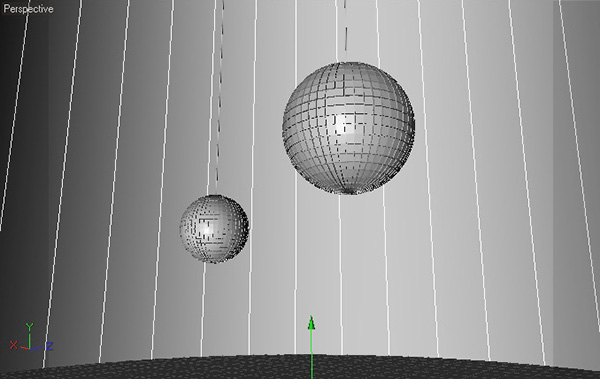

Duplicate the Sphere object, and scale it down until it has a 100m Radius.
Step 7
Create a very tall Cylinder object, with a Radius of around 1500m.
Step 8

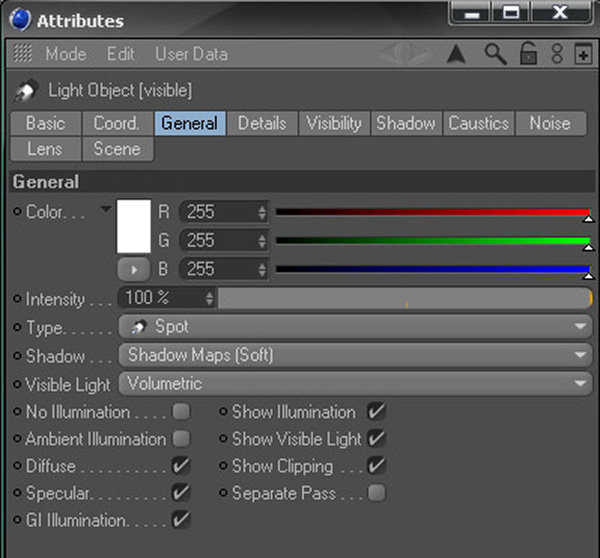

Create a Spotlight object (Create > Scene > Spot Light), and under the “General” tab, change “Shadow” to “Shadow Maps (Soft)”, and “Visible Light” to “Volumetric”.
Step 9

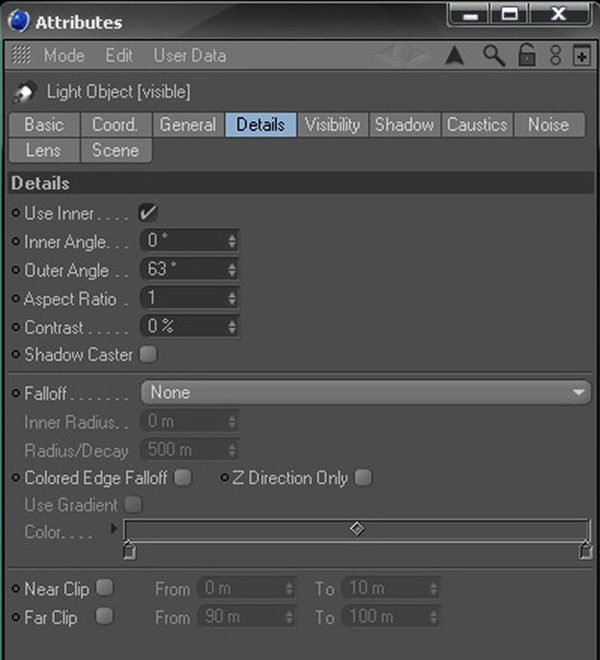

Under “Details”, change the “Outer Angle” to 63 degrees.
Step 10

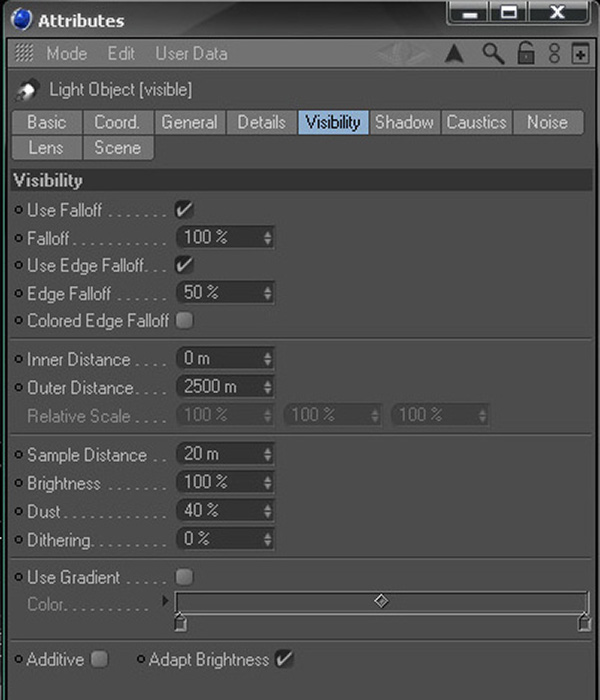

Under “Visibility”, change the “Outer Distance” to 2500m, the “Sample Distance” to 20m, and “Dust” to 40%.
Step 11

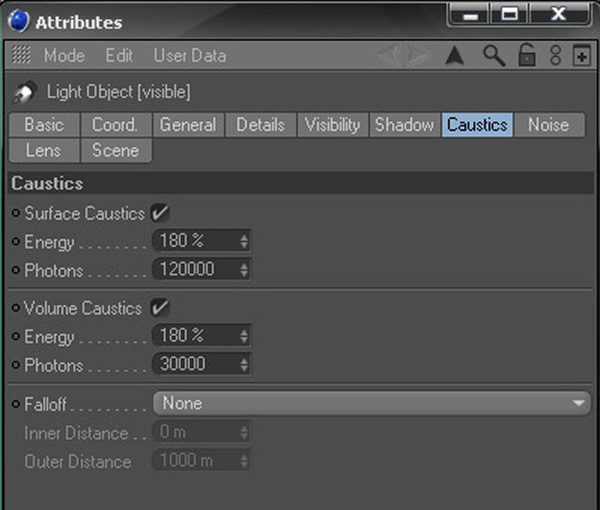

Under “Caustics”, check both “Surface Caustics”, and “Volume Caustics”. Change the “Photons” for “Surface Caustics” to 120,000, and to 30,000 for “Volume Caustics”. Change both “Energy” values to 180%.
Step 12

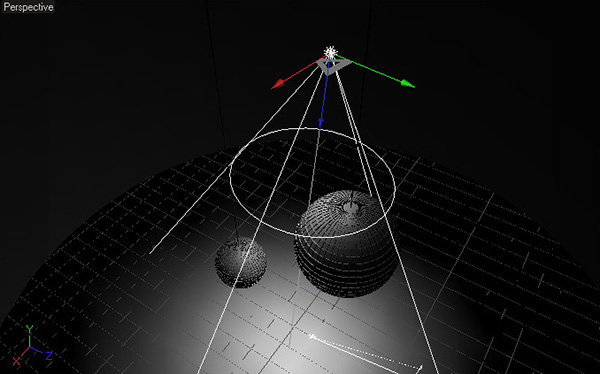

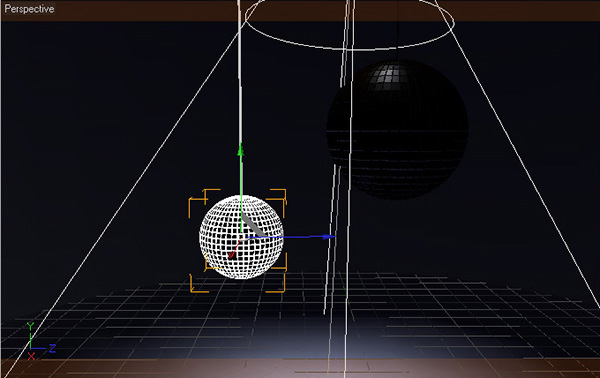

Place Light objects above both Spheres.
Step 13
Create a new Light object (Create > Scene > Light), make it Blue (79, 89, 255), and set the “Intensity” to 10%. Place it under the big Sphere.
Step 14

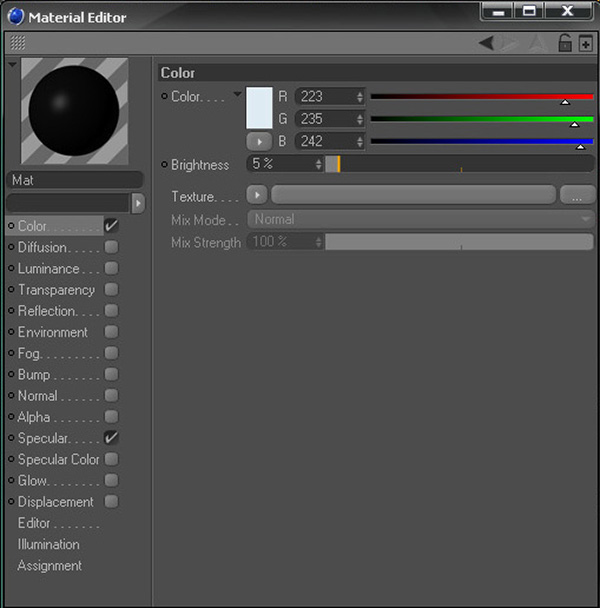

Create a new material by double clicking the material manager. Under “Color”, change the “Color” to light Blue (223, 235, 242), and “Brightness” to 5%.
Step 15

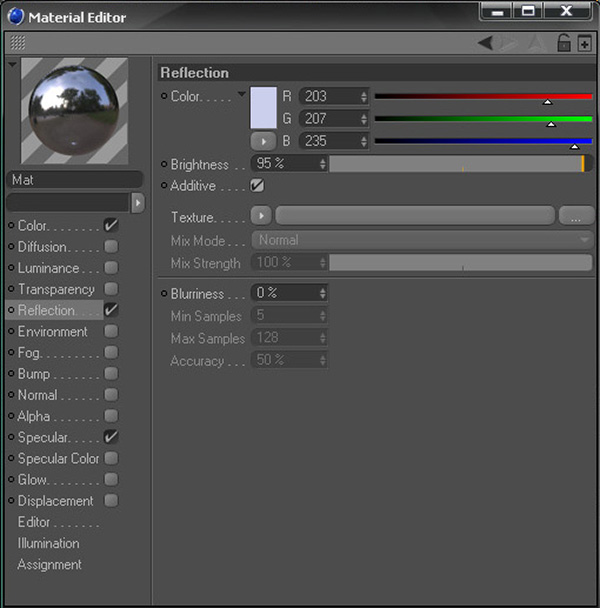

Under “Reflection”, change the “Color” to light Blue (203, 207, 235), the “Brightness” to 95%, and check the “Additive” option.
Step 16

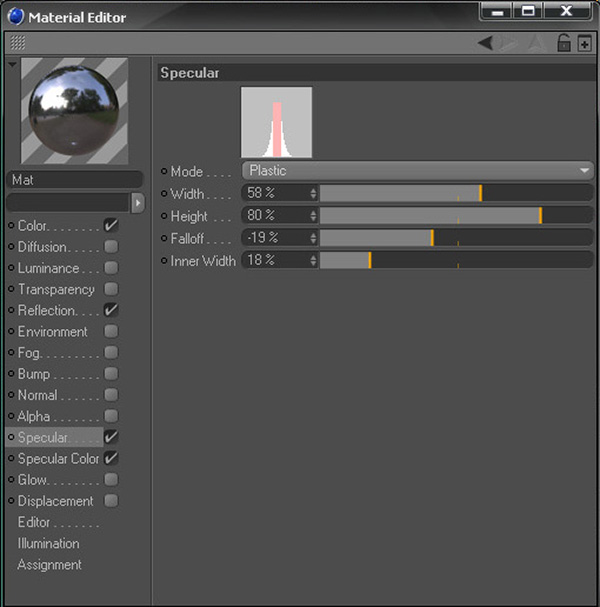

Under “Specular”, change the “Width” to 58%, the “Height” to 80%, the “Falloff” to -19%, and the “Inner Width” to 18%.
Step 17

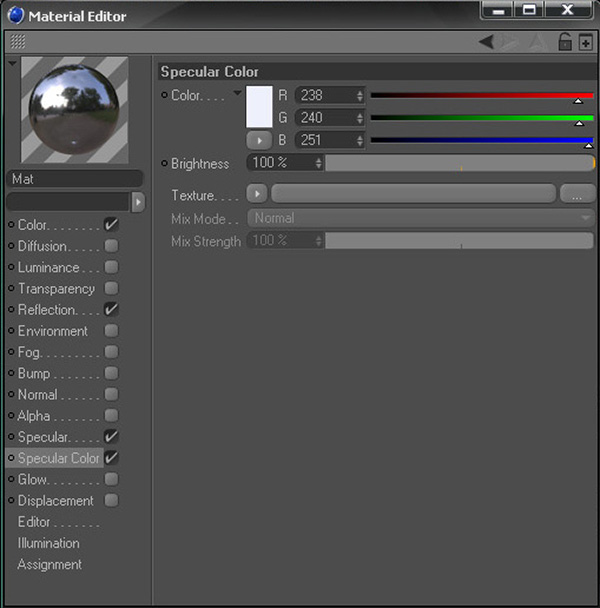

Under “Specular Color”, change the “Color” to (238, 240, 251).
Step 18
Duplicate this material, and change the “Color” and “Reflection” to an Orange hue.
Step 19

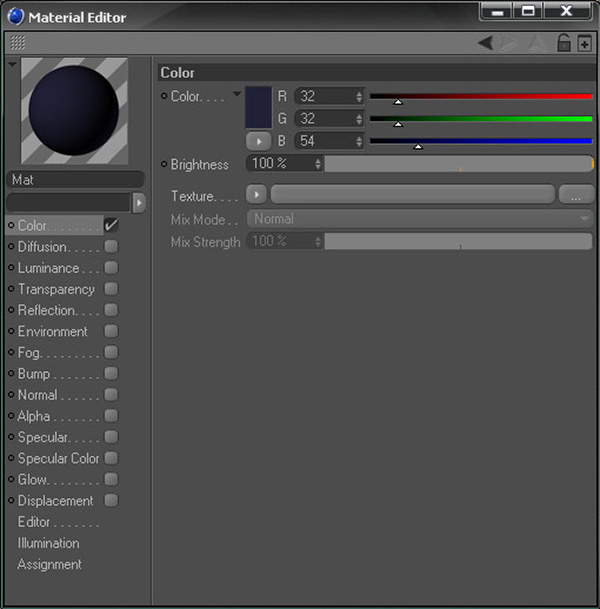

Create a new material. Under “Color”, change the “Color” to dark Blue (32, 32, 54), and un-check “Specular”.
Step 20

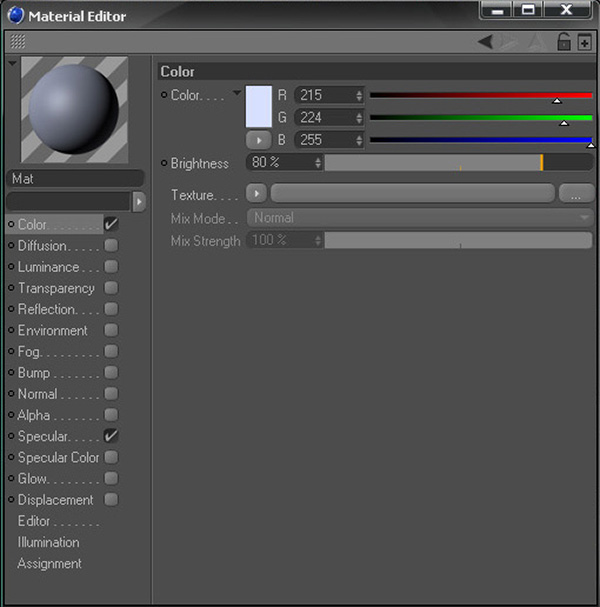

Create a new material. Under “Color”, change the “Color” to light Blue (215, 224, 255).
Step 21

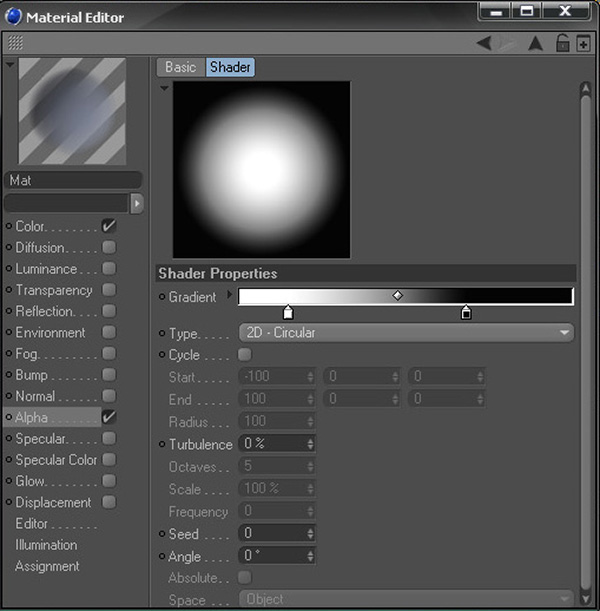

Under “Alpha”, use a Gradient as the texture, set the “Gradient Type” to “2D Circular”, and uncheck “Specular”.
Step 22

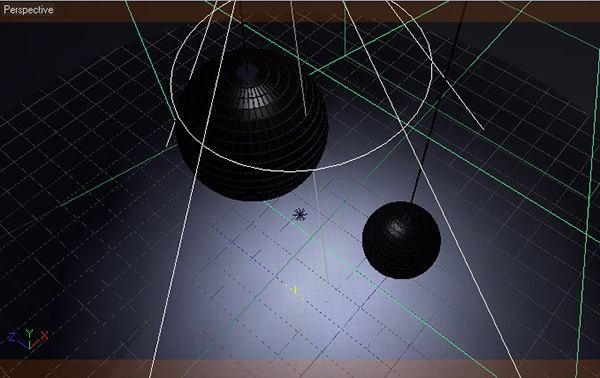

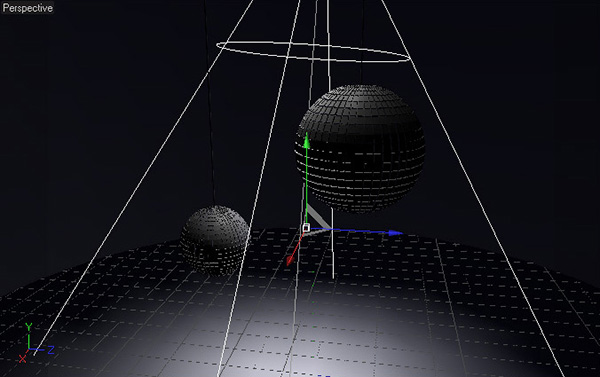

Assign the dark Blue material to both Spheres and Cylinders. Assign the Orange, reflective material to the selection on the big Sphere, and the Blue, reflective material to the selection on the small Sphere. Assign the material with the alpha channel to the Plane.
Step 23
Create a Cloner object (Mograph > Cloner object), and under “Object”, set the “Mode” to “Grid Array”, “Clones” to “Random”, “Count” to (5,5,5), and “Size” to 900m in all dimensions. Add both Spheres (without the Cylinders) to the Cloner object, and scale them down.
Step 24
While the Cloner object is selected, add a Random Effector (Mograph > Random Effector). Under the “Transform” parameters, tweak the “Position” to match your needs (values around 100m), and set the “Scale” to “Uniform Scale” 0.5.
Step 25

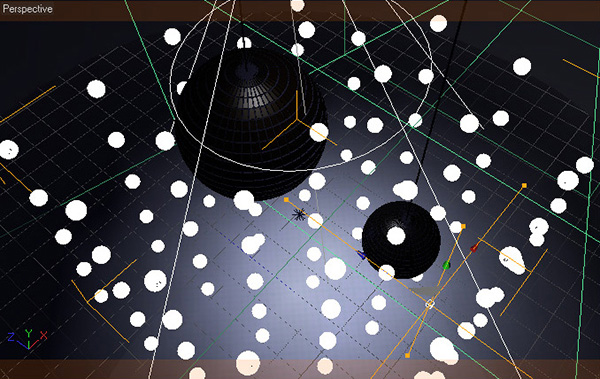

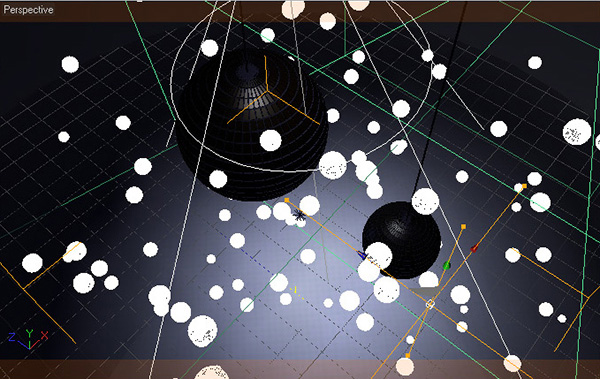

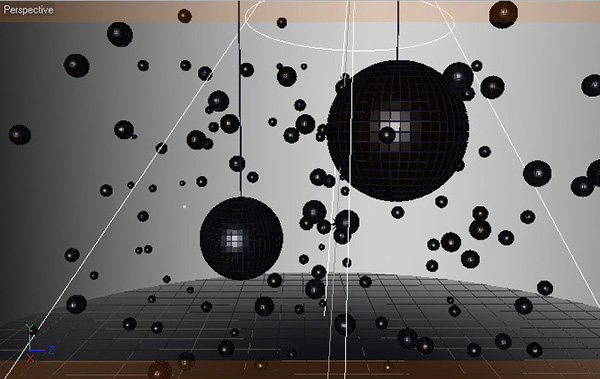

Find a good camera angle, and add a Camera object (Create > Scene > Camera).
Step 26

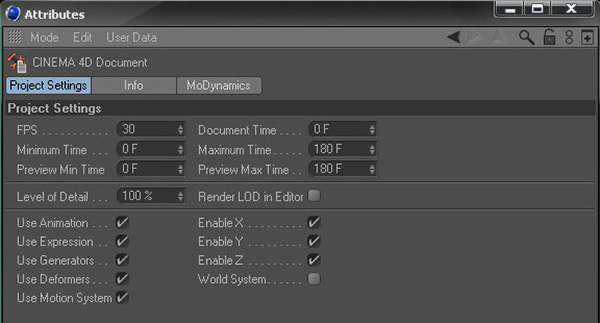

Under “Project Settings” (Edit > Project Settings or ctrl+D) change the “Maximum Time” to 180 F.
Step 27

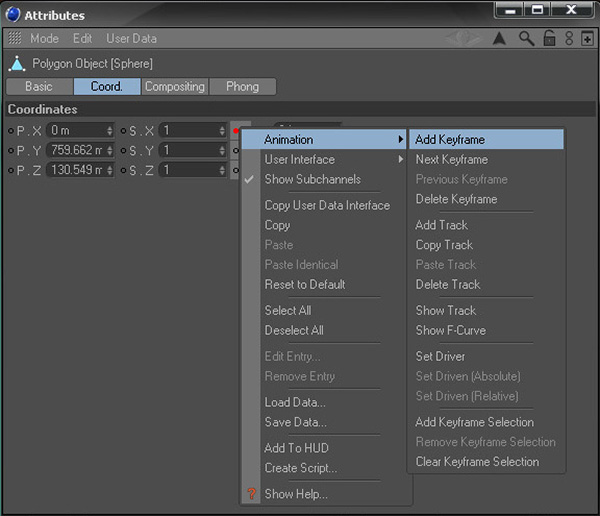

Select frame 0, then select the big Sphere, and go to the “Coord” tab. Right-click R. H, and go to (Animation > Add Keyframe). Under the “Keyframe Properties”, un-check “Auto Tangents”. *To open the keyframe properties, click on the keyframe in the timeline.
Step 28

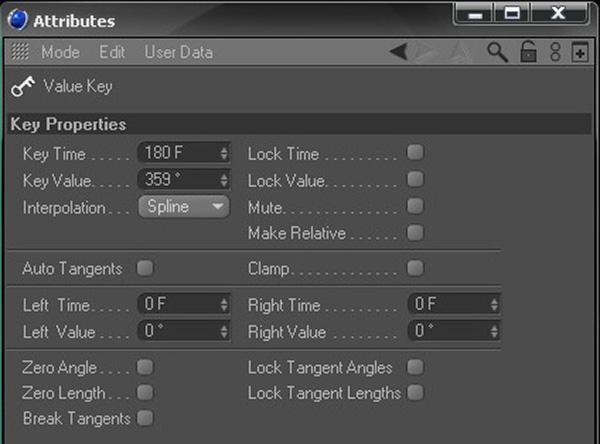

Select frame 180, set R. H to 359, and press “Add Keyframe”. Under “Keyframe Properties”, un-check “Auto Tangents”.
Step 29
Select frame 0, then select the small Sphere and go to the “Coord” tab. Right-click on R. H, and got to (Animation > Add Keyframe). Under “Keyframe Properties”, un-check “Auto Tangents”.
Step 30

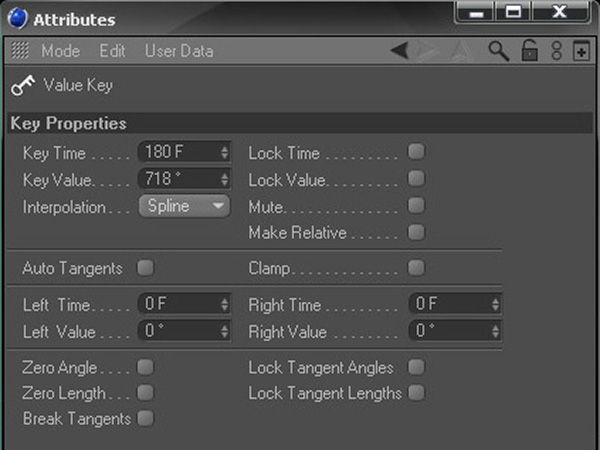

Select frame 180, set R. H to 718, and press “Add Keyframe”. Under the “Keyframe Properties”, un-check “Auto Tangents”.
Step 31

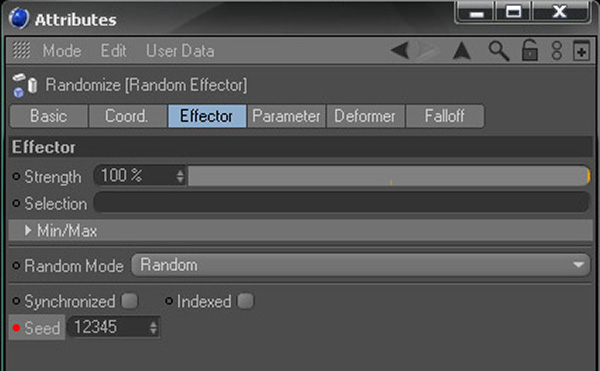

Select the “Random Effector”, then select frame 0, and under “Effector” add a keyframe to “Seed”. Under the “Keyframe Properties”, un-check “Auto Tangents”, and change the “Right Time” to 7 F. *The “Left Time” value will be changed to -7 F.
Step 32

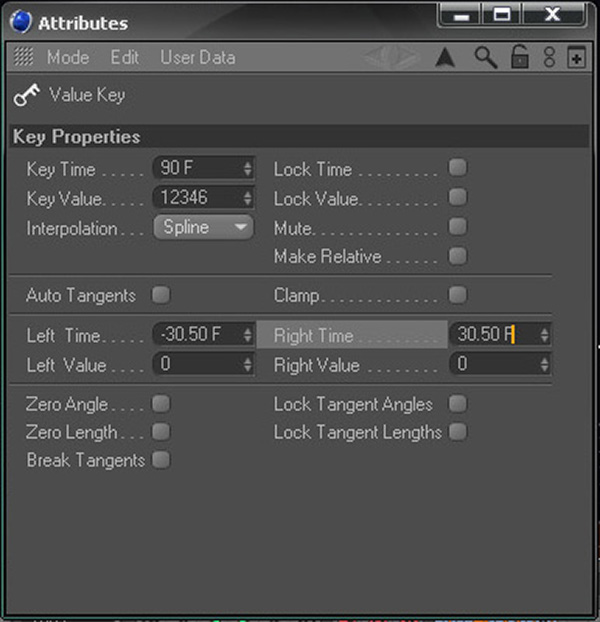

Select frame 90, and change the “Seed” to +1 (ie. if your value was 12345 make it 12346). Add a keyframe. Under “Keyframe Properties”, un-check “Auto Tangents”, and change the “Right Time” to 30.50 F. *The “Left Time” will be changed to -30.50 F.
Step 33

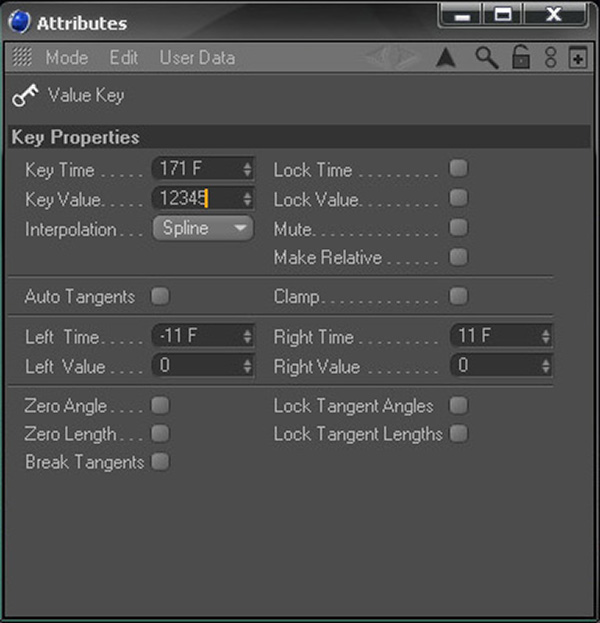

Select frame 171, and change the “Seed” back to the first value. Under “Keyframe Properties”, un-check “Auto Tangents”, and change the “Right Time” to 11 F. *The “Left Time” value will be changed to -11 F.
Step 34

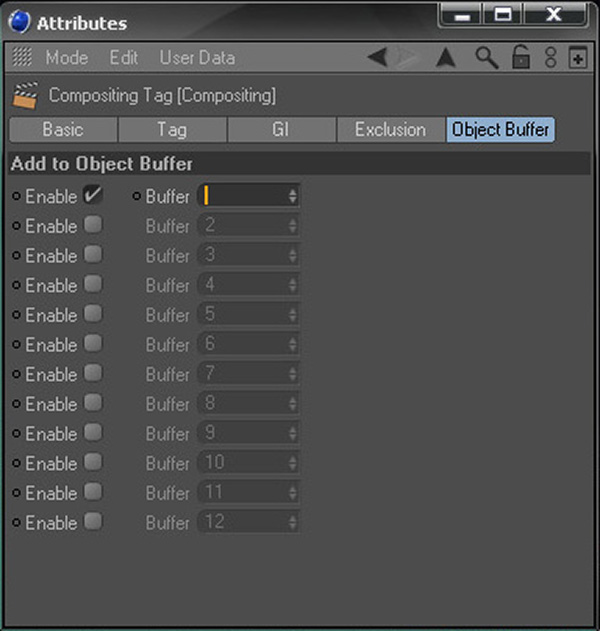

Add a “Compositing” tag to the Cloner object, Cylinder, Plane, and both Spheres, and set a unique “Object Buffer” number for every object.
Step 35

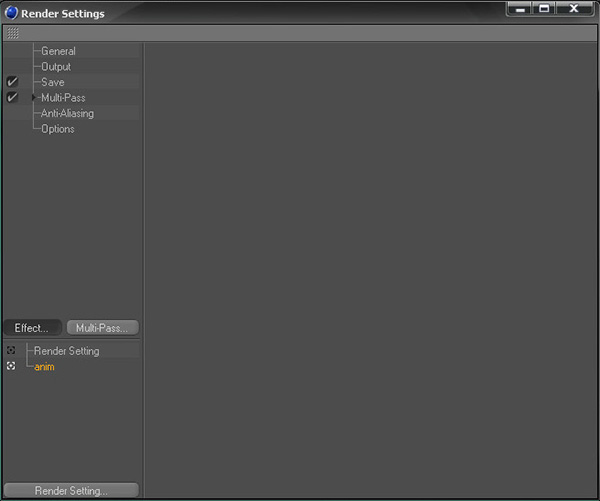

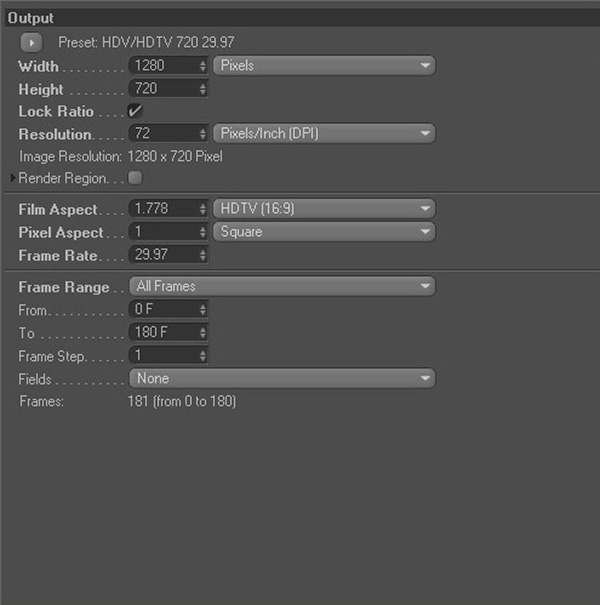

Open the “Render Settings” (ctrl+b or Render > Render Settings..). Under “Output”, change the settings to meet your needs (in my case its 1280×720, square pixel aspect, 29,97 fps), and change the “Frame Range” to “All Frames”.
Step 36

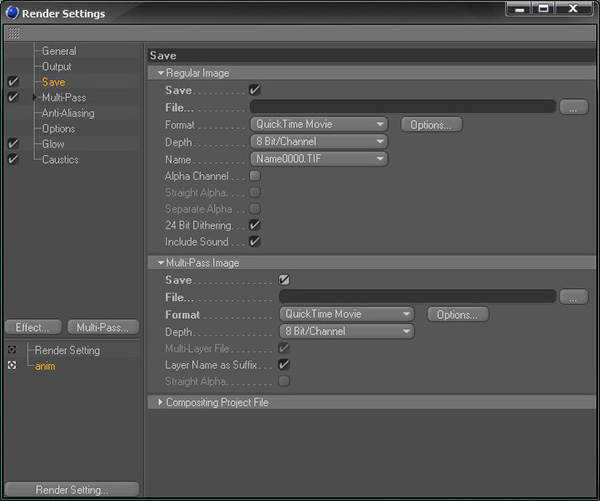

Under “Save”, select the appropriate format, and check “Save” under “Multi Pass Image”.
Step 37

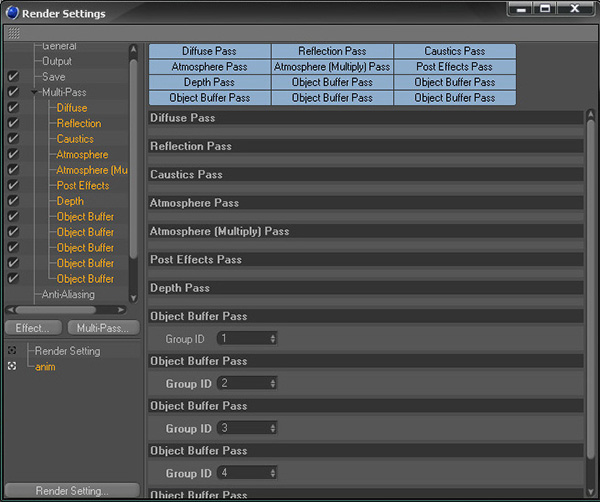

Under “Multi-Pass”, add “Diffuse”, “Reflection”, “Caustics”, “Atmosphere”, “Atmosphere (Multiply)”, “Post Effects”, “Depth” and all used “Object Buffers”.
Step 38

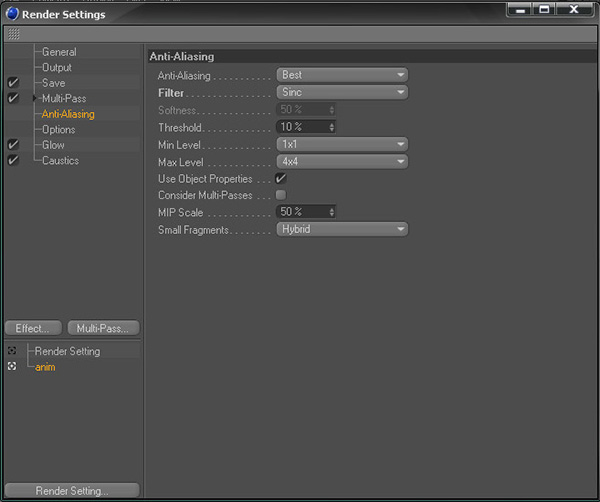

Under “Anti-Aliasing”, change “Anti-Aliasing” to “Best”, and “Filter” to “Sinc”.
Step 39
Add “Glow” and “Caustics” effects.
Step 40

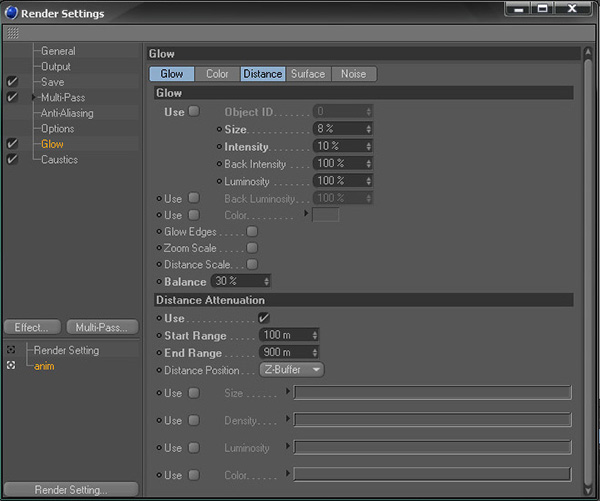

Under “Glow”, in “Glow Settings”, change the “Size” to 8%, the “Intensity” to 10%, and the “Balance” to 30%. Under “Distance”, check “Use”, and change the “Start Range” to 100m and the “End Range” to 900m.
Step 41

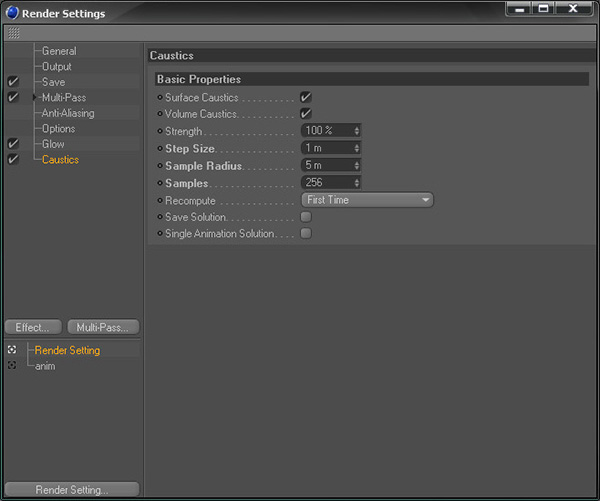

Under “Caustics”, check “Volume Caustics”, and change the “Step Size” to 1m, the “Sample Radius” to 5m, and the “Samples” to 256.
Render, and you’re done! Hope you learned something new!!
