Model a Photorealistic Swiss Army Knife in Modo – Day 3

on Oct 21st 2009 with 14 comments
Tutorial Details
  • Software: Luxology Modo
  • Difficulty: Intermediate
  • Estimated Completion Time: 3+ Hours
This entry is part 3 of 3 in the series Photorealistic Swiss Army Knife in Modo

Subdivision modeling is an extremely powerful tool that can allow you to add high levels of detail to your models in a relatively short amount of time. In order to use it effectively, however, one must know when, and more importantly, when not to use it.

In this three part, beginner to intermediate tutorial series, professional Modo artist, Matt Braeley, will demonstrate how to model a photorealistic Swiss Army knife, using polygonal and subdivision modeling in Luxology’s Modo 302.

On day 1 Matt covered the creation of the main body, and on day 2 he began to add in the tools. Now, on Day 3, he will finish up with the final details.

Additional Files/ Plugins:

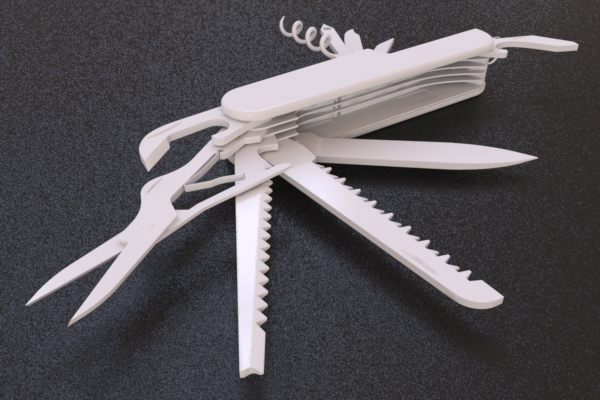

Final Effect Preview

Video 1

Download

Note: click the ‘Monitor’ icon to view tutorial in full-screen HD.

Video 2

Download

Note: click the ‘Monitor’ icon to view tutorial in full-screen HD.

Video 3

Download

Note: click the ‘Monitor’ icon to view tutorial in full-screen HD.
