Create a Rocky Video Game Terrain in Blender – Day1

on Sep 2nd 2009 with 50 comments
Tutorial Details
  • Software: Blender
  • Difficulty: Intermediate
  • Estimated Completion Time: 1 Hour
This entry is part 2 of 9 in the Best of Blender Session
« PreviousNext »
This entry is part 1 of 4 in the series Rocky Video Game Terrain

In this series of tutorials you will learn how to create a finished environment for Blender’s Game Engine. The main focus of the series will be texturing and lighting, with the use of some custom 2d filters to enhance the result.

Day 1 will deal primarily with sculpting the model. Since we want to start with texturing as soon as possible, we’ll use the sculpt mode in Blender to quickly create the shape with the upcoming clay brush, and adding the main details we’ll use for the environment’s textures with the layer brush.

In Day 2, while following the premise of skipping as much of the modeling work as we can, we will create a low poly mesh by basing it off a lower multires level of the sculpted model, and then applying a decimate modifier to it. We will then use this low poly mesh to bake tangent space normal map and an approximate ambient occlusion map.

Before starting you should gather all the reference you can. I’ve ended up editing out from the screencast the part where I show the images I’ve used for reference because I’ve followed them quite loosely. However, you can see a composite of some of them here. I’ve also made a test sculpt before starting the real one that can be seen here.

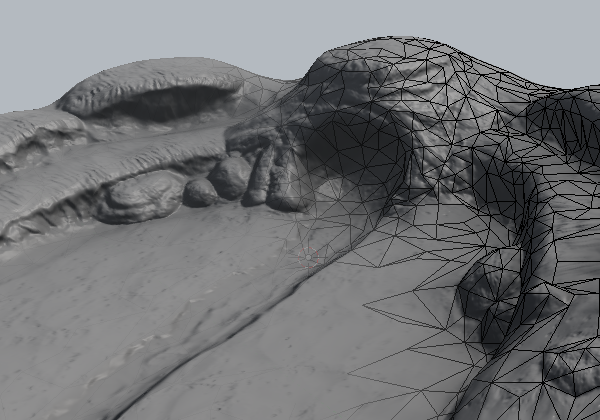

Final Effect Preview

Full Video

Download

Note: click the ‘Monitor’ icon to view tutorial in full-screen HD.
