Tutorial Details
- Software: Autodesk Maya 2009 (or newer)
- Difficulty Level: Easy
- Completion Time: 15 - 30 min
- Additional Files/ Plugins: None

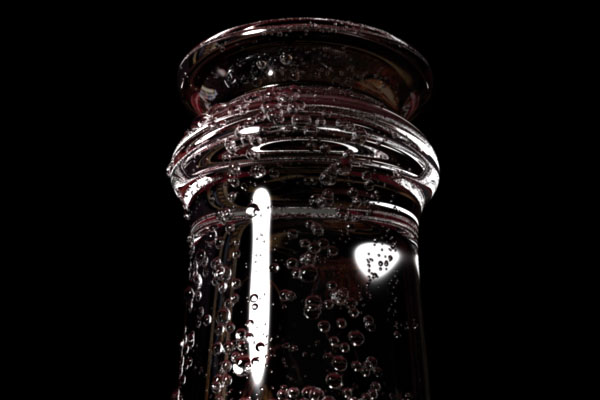

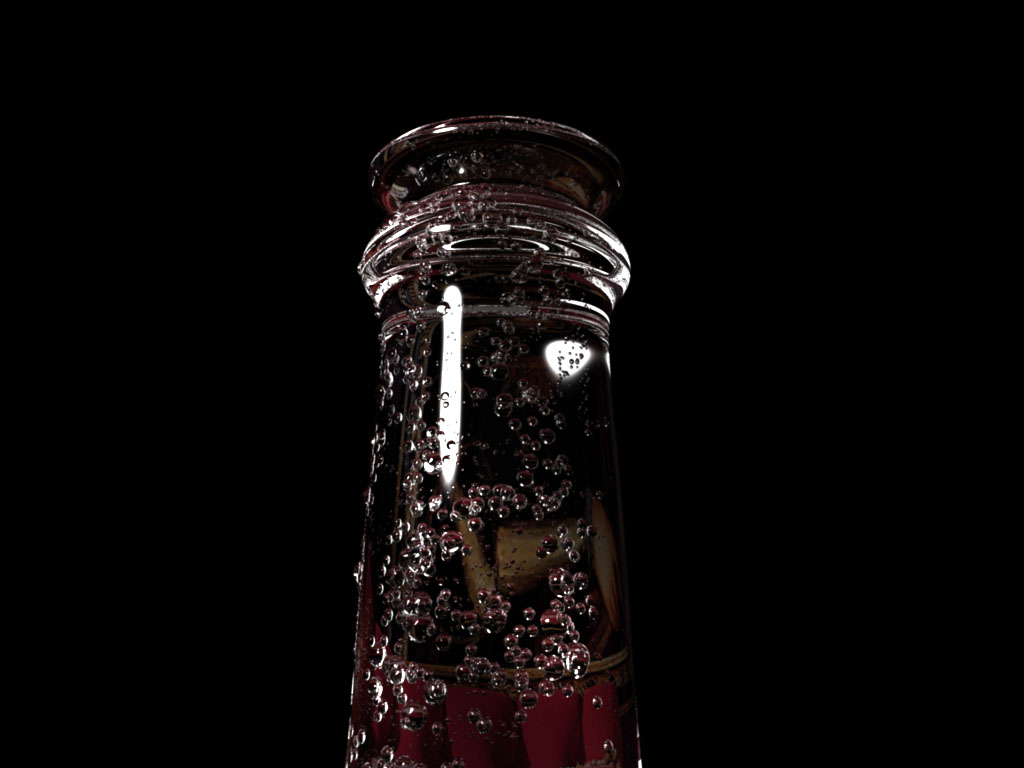

Final Product What You'll Be Creating
.jpg)
In this Maya Quick Tip tutorial, you will learn how to create realistic looking condensation any object, specifically cold glass, and then quickly render it for a nice polished final effect using Maya Paint Effects.
Step 1
Model your glass object. It could be a bottle, window, or anything that gives you the feeling of coldness.
Step 2

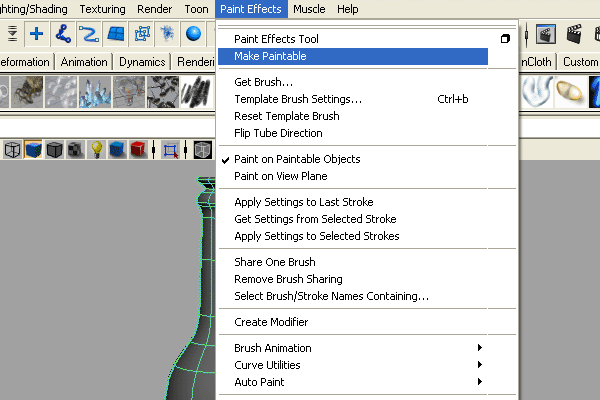

Switch to the “Rendering Menu” by pressing “F6″ on your keyboard, select the object, and then go to “Paint Effects > Make Paintable”.
Step 3

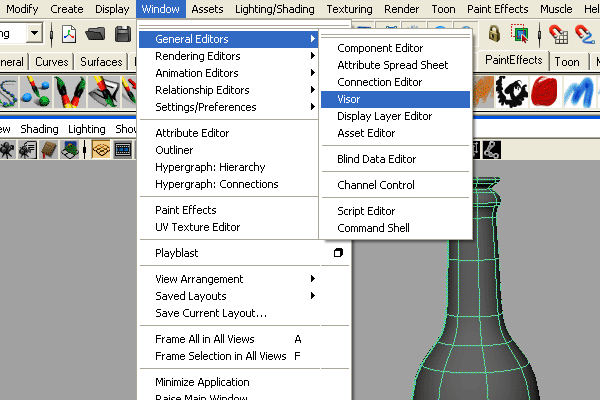

Open “Visor” by going to “Window > General Editors > Visor”.
Step 4

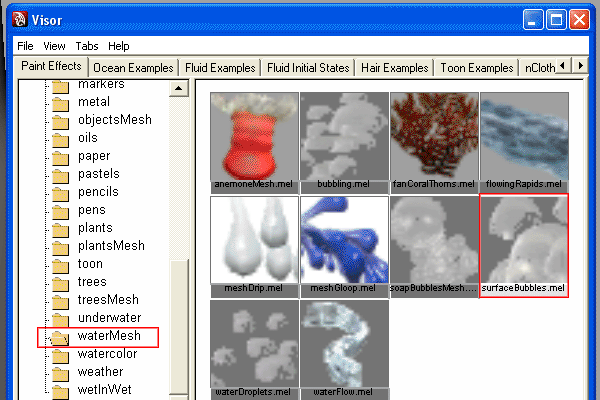

Select “Surface Bubbles” from the list.
Step 5

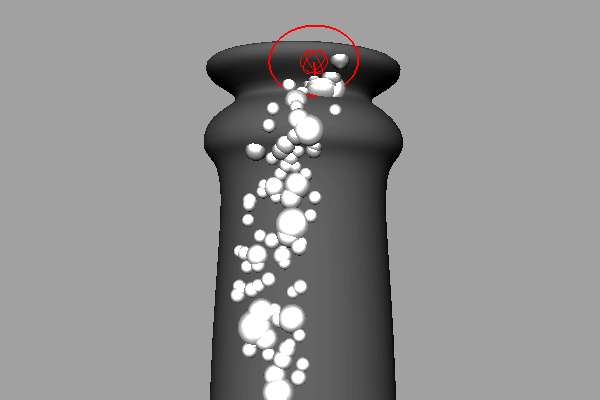

Start drawing the bubbles on the object’s surface. If the bubbles direction is reversed, simply undo, select the object, then go to “Edit NURBS > Reverse Surface Direction”, or “Normals > Reverse” if the object is made with Polygons. Now draw again. Note: To control the brush size, press “b” and hold while moving your mouse Left or Right.
Step 6

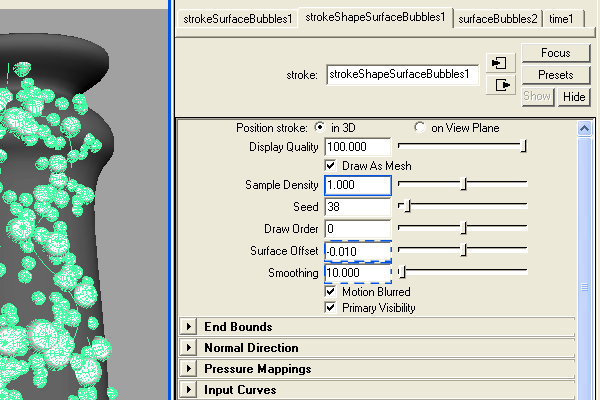

When you have finished drawing your bubbles, you may need to edit the following properties:
For me, the Density = 0.6, the Surface Offset = -0.010, and the Smoothing = 10.
Step 7

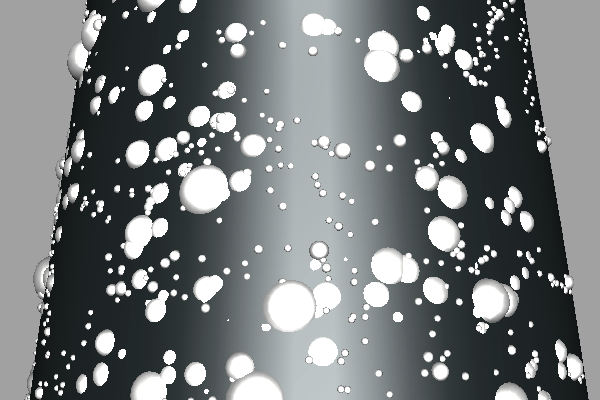

After that you can also add some tiny bubbles to fill in the empty area.
Step 8
Now you can render you scene using “Maya Software” or “Mental Ray”.

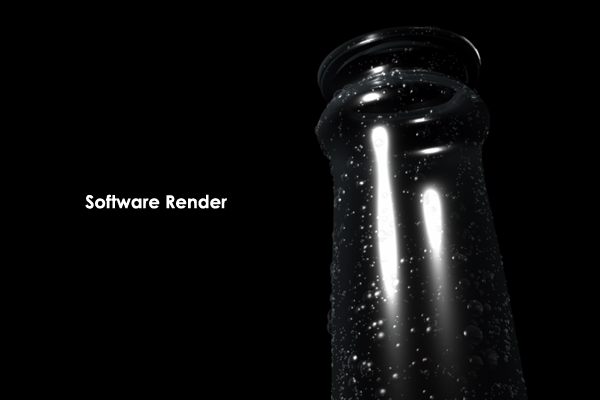

For Maya Software Render, adjust the “Specular” and “Depth Shadow” attributes in the “Attribute Editor”. This will allow the “strokeSurfaceBubbles” brush to get a better render.

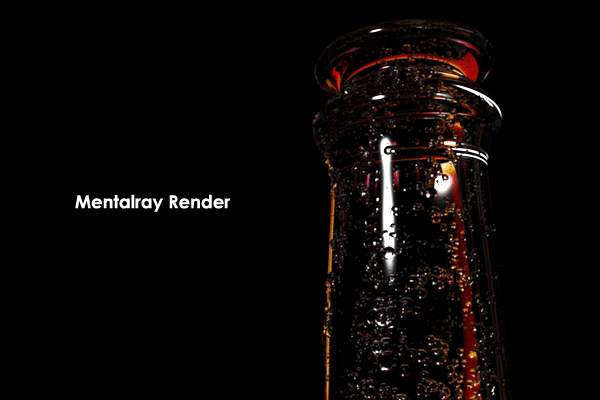

For Maya Mental Ray Render, convert the Paint Effects to Polygons, and use “Mia_Material > Glass Presets” for the bubbles on the surface. You can use IBL to give reflections too if you like.
Enjoyed this Post?
Subscribe to our RSS Feed, Follow us on Twitter or simply recommend us to friends and colleagues!
By Abed Ibrahim
Join our newsletter!
Create a Tutorial, Get Paid!
Have something to teach the world? Want to earn money doing it? Tutorials, screencasts, and articles published here on Cgtuts+ are largely contributed by readers just like you! We'll pay you great money for good content. Find Out More
Cool ! So the bubbles are mesh
The first thing that came to my mind when watching this tut was :
Export from 3Ds Max > Import into MAYA > Paint bubbles > Re-Export to MAX > Apply Mats. > RENDER !
:)
Would be wonderful if you could do a similar tutorial for 3ds or C4D. Regardless, great tutorial very helpful.
Cool! Thanks for tut!
So simple yet so good looking, great tut. I will try this when I get home :D
Nice tip, thanks !
How can u create the same in MAX?
This is so amazing, I had no idea! Thanks
Is it possible to Animate this?
I’m thinking about a Window where Raindrops coming down.
possibly with keyframes if you do this in sections,
never tried but you can
Hi
you can animate them gradually from “End Bounds > Min & Max Clips”.
or other types of animation from “Behavior” in the attributes editor.
Great work :) tnx
How do you do this in 3dsmax?
Unfortunetely I could see anything here. It seems to be an error when getting the images on the page.
Thanks to all for the nice comments…
Thanks a lot for this tutorial.
can u tell atributes for Mia_Material cause all i get is black scene with bubbles and lil spec
Make sure that you turn “Raytracing” on from Raytracing Quality in Maya Software render. And also turn on “Raytracing” in
Mental Ray.
Thanks for the Great tutorial Abdo , I hope you will make more tutorials like that , and I also think that it would be very cool if you make it like a weekly video tips ..
Thanks hakem : )
hope i can find time to do what you said.
Peace,
Abed
Great tutorial, but yes as stated above your hypershade settings would also be a welcome addition.
great post, for a long time i modeling this drops and it take
a few hour to finish,but now…thanks man .
