Step 1

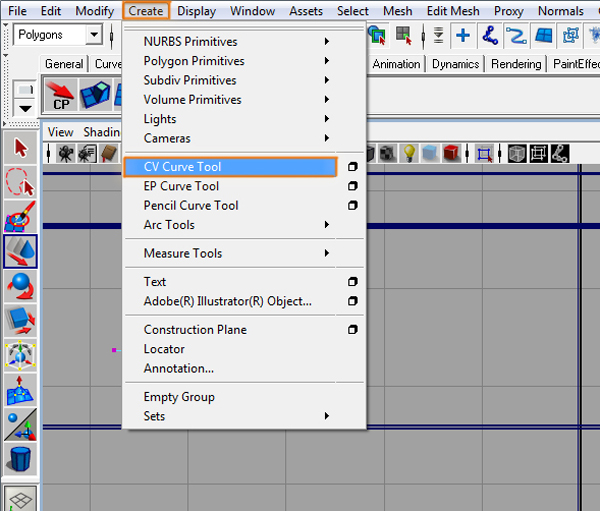

Go to “Create > CV Curve”.

Step 2

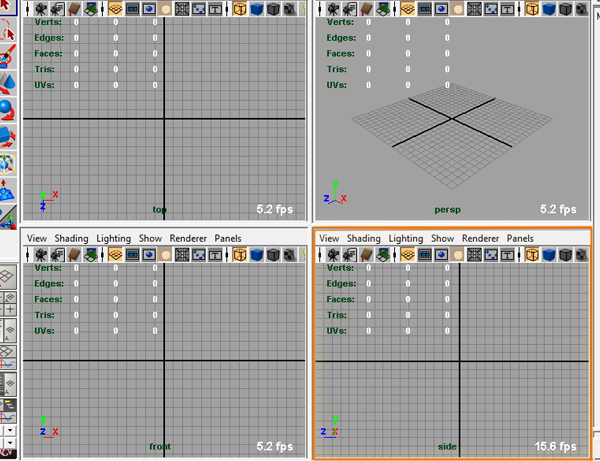

Press the space bar and change to the side view camera.

Step 3

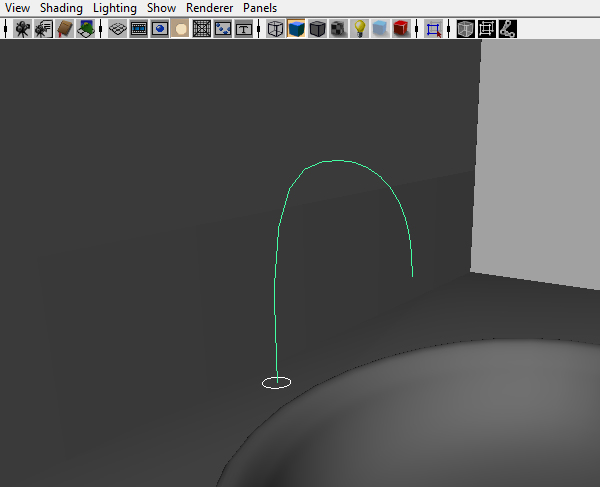

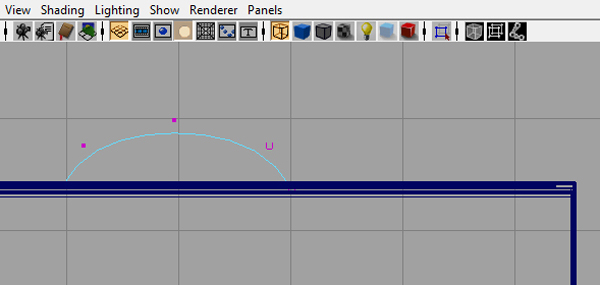

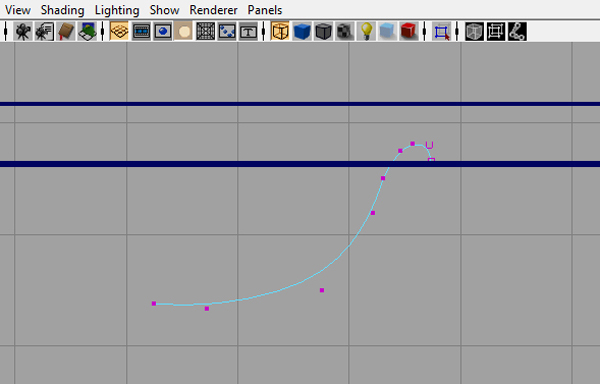

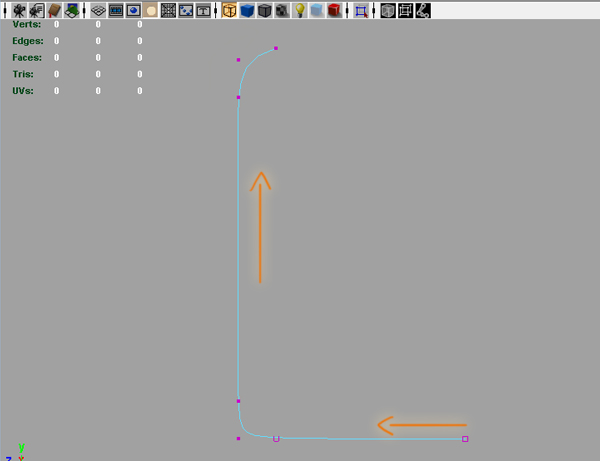

Create a curve with the same shape as in the image. Note: The curve needs to be created from bottom to top.

Step 4

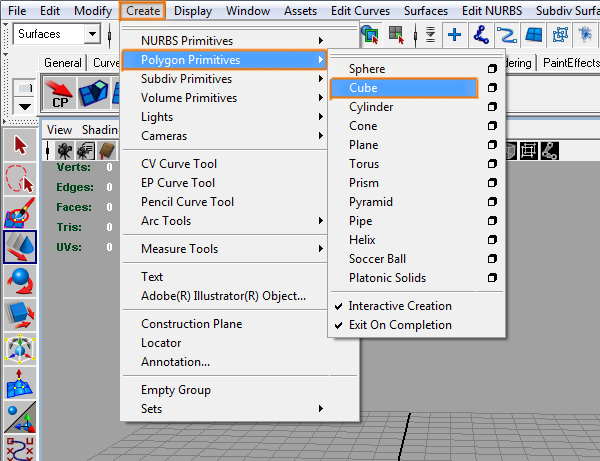

Switch back to perspective view, go to “Create > Polygonal Primitives > Cube”, and create a cube.

Step 5

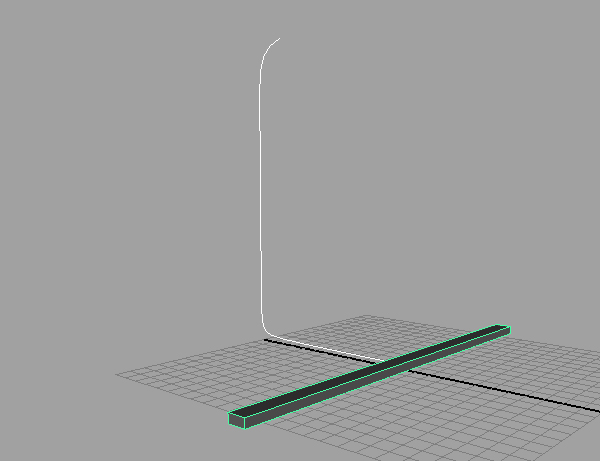

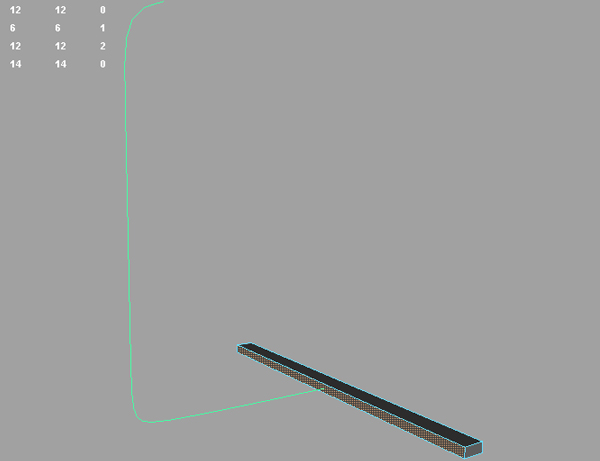

The cube needs to be at the bottom of the curve.

Step 6

Select the back face of the cube and THEN the curve. Note: The order of selection is crucial.

Step 7

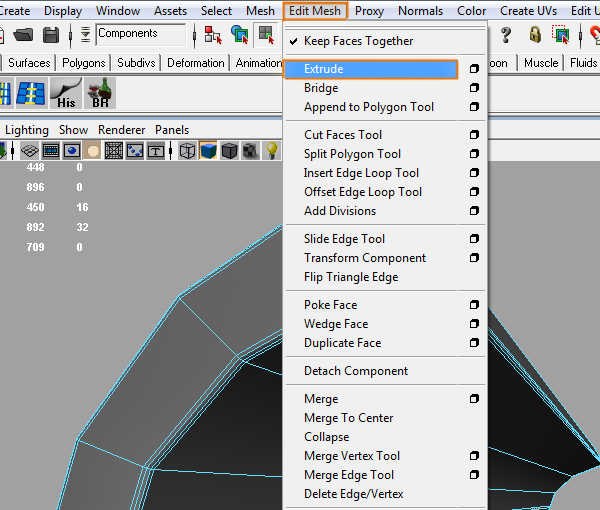

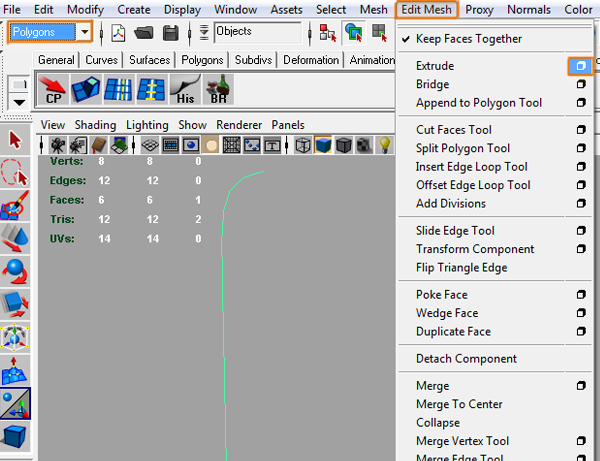

With the selection still active, go to “Edit Mesh > Extrude (option box)” under the “Polygons” menu.

Step 8

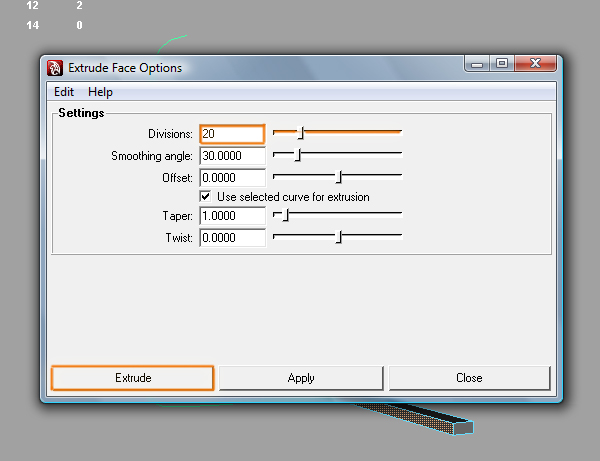

Inside the option box, change the “Divisions” to 20 and click on “Extrude”.

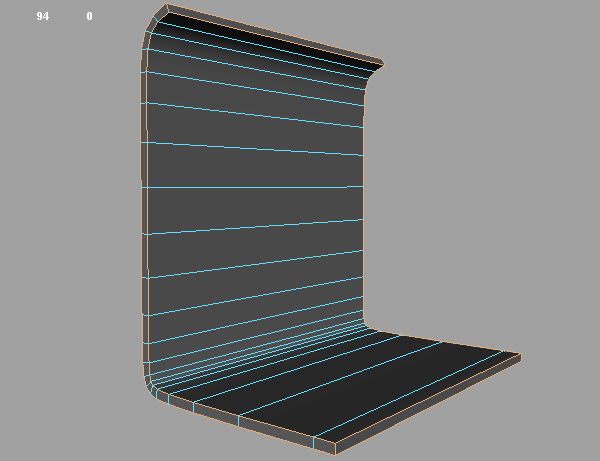

Step 9

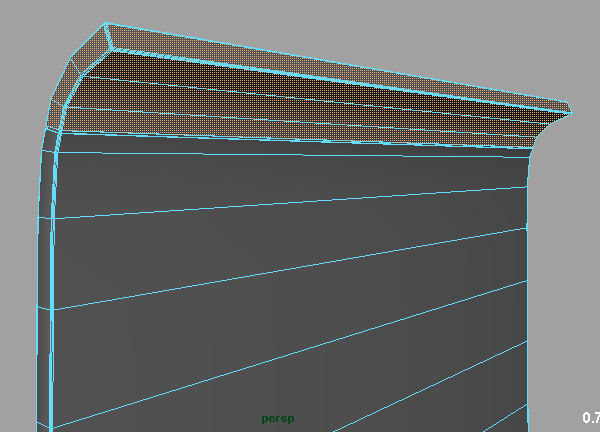

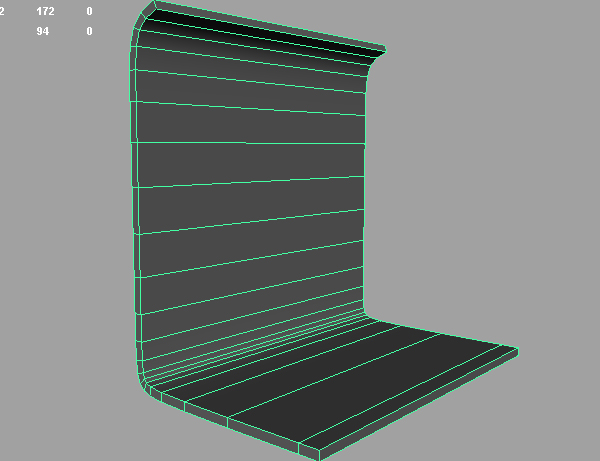

A polygonal object with the shape as the curve should be created (see image).

Step 10

The object has very sharp edges which create an unrealistic look. To solve that problem, select all of the edges you want to smooth.

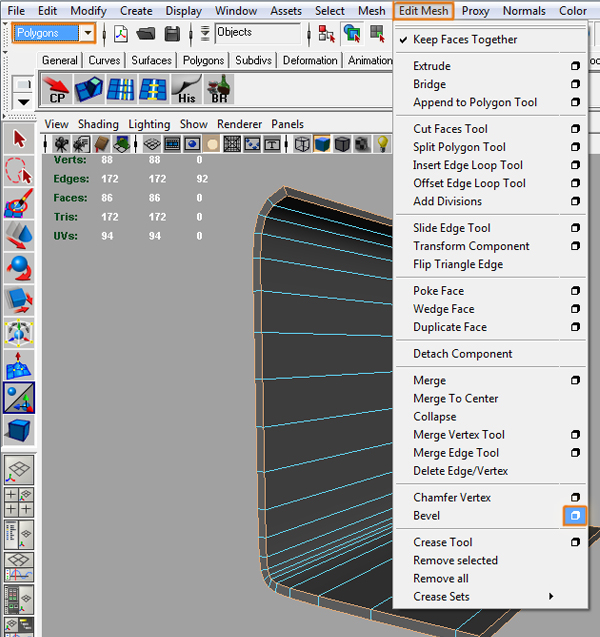

Step 11

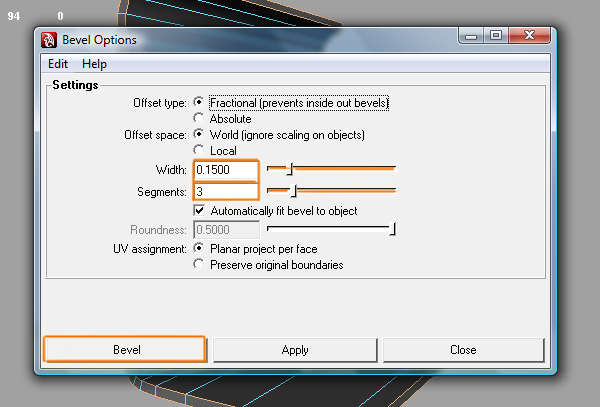

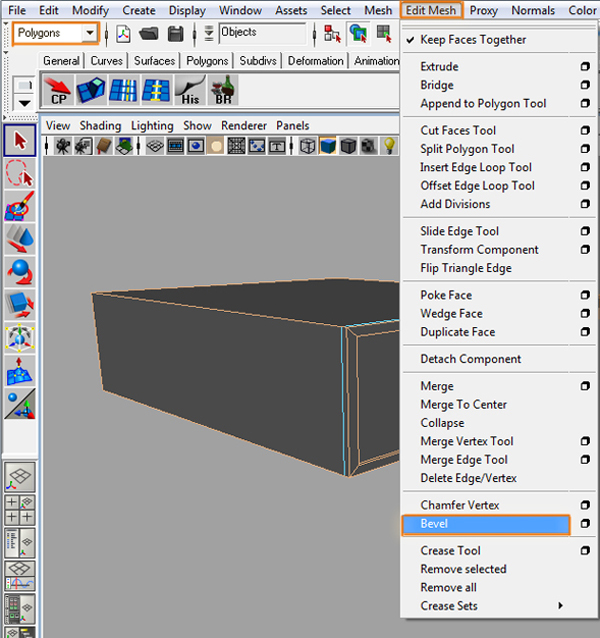

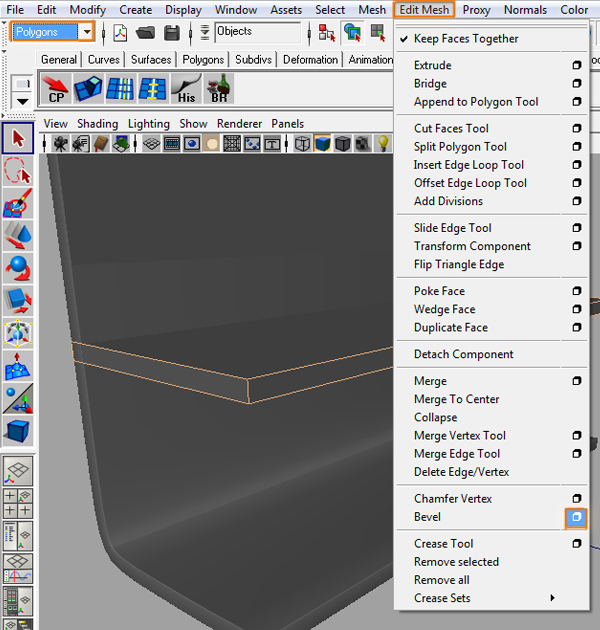

Under the “Polygons” menu, go to “Edit Mesh > Bevel (option box)”.

Step 12

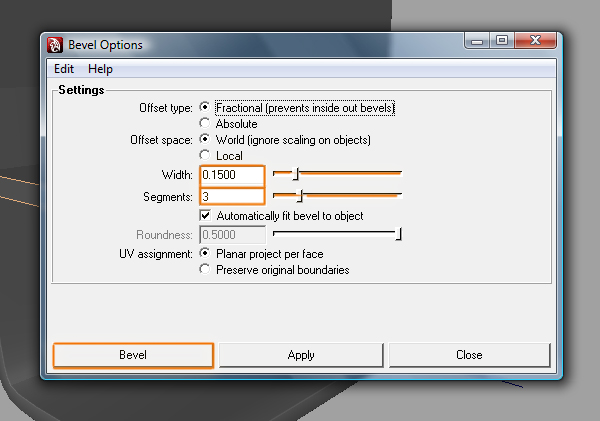

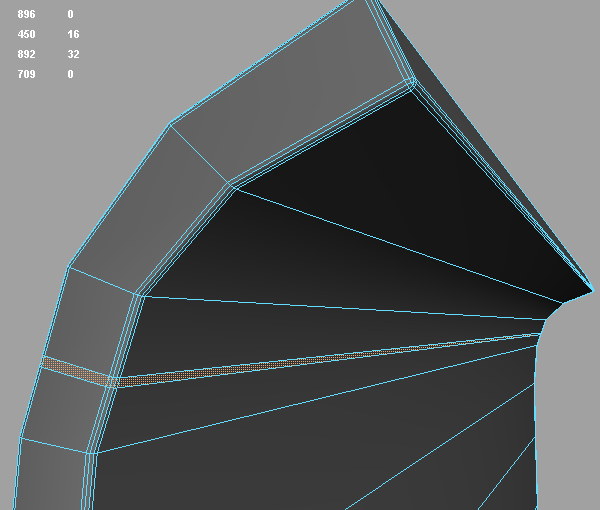

Inside the option box, change the “Segments” to 3 and the “Width” to a value that works for you (in my case 0.1500), then click “Bevel”.

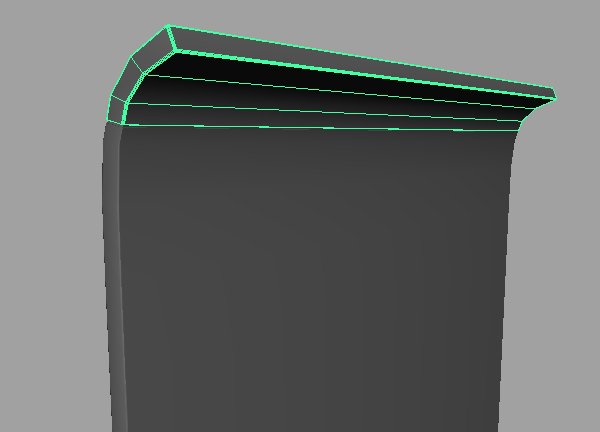

Step 13

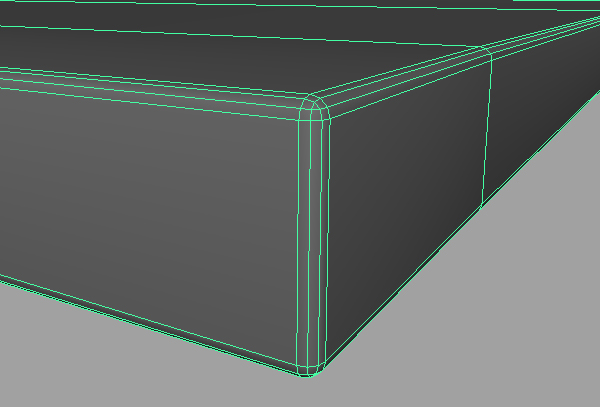

When the option box closes you will see all of the edges that you selected become nice and smooth.

Step 14

Now you need to create the light. Under the “Polygons” menu, go to “Edit Mesh > Insert Edge Loop Tool”.

Step 15

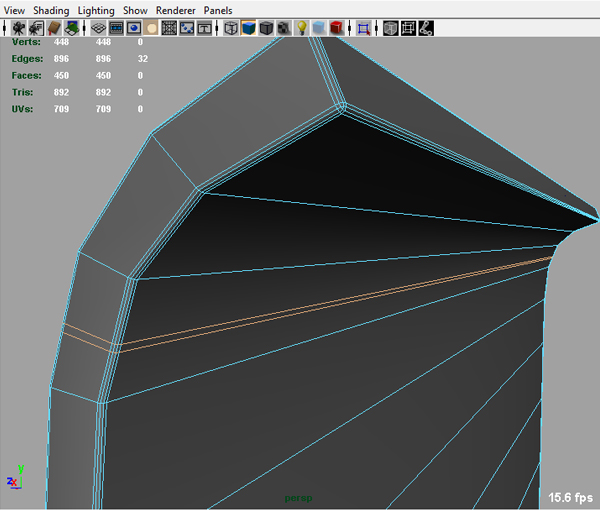

Create 2 edges around the object.

Step 16

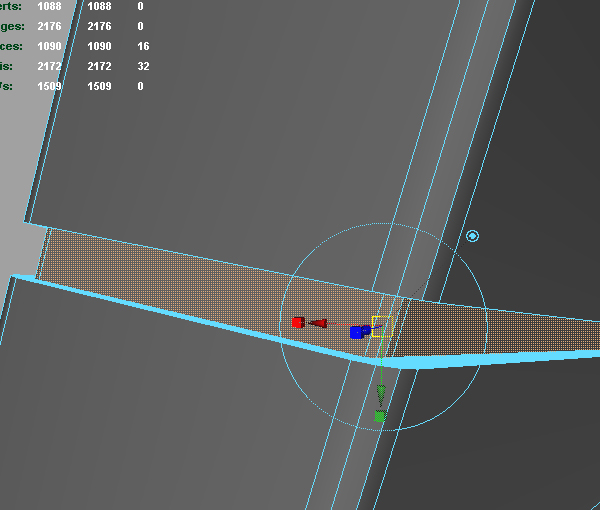

Select all of the faces between the edges you created.

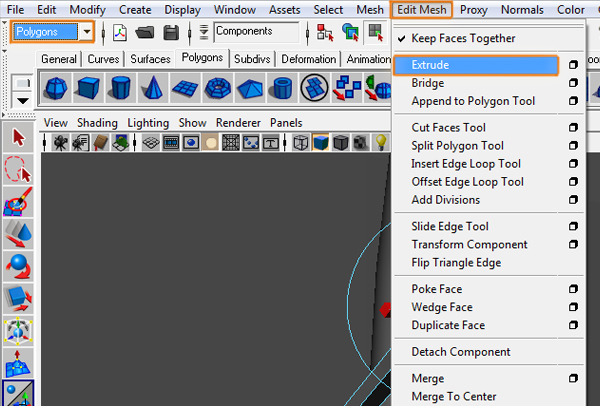

Step 17

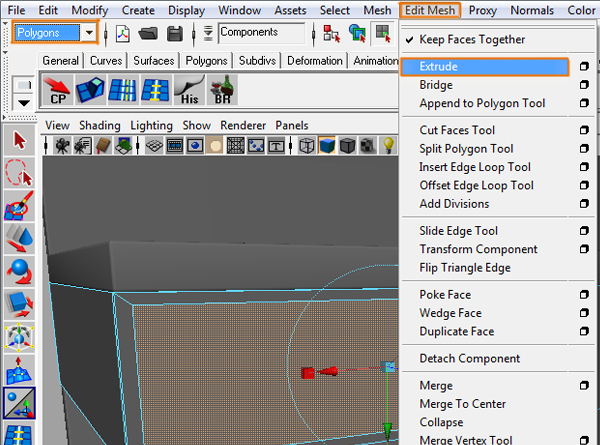

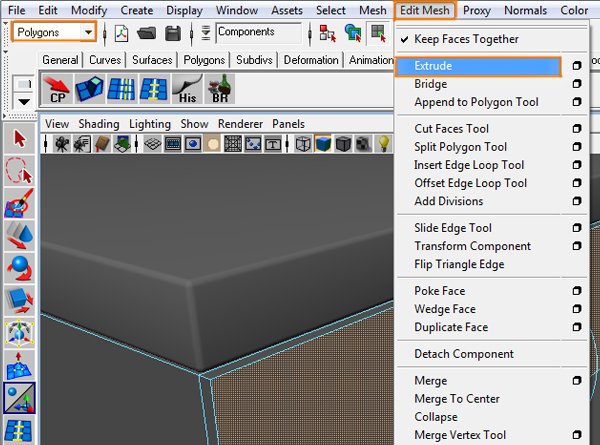

With those faces selected, go to “Edit Mesh > Extrude”.

Step 18

Extrude the faces to the inside of the object.

Step 19

With these past steps you created a division for the light. Now you only need to extract the geometry on top of the object.

Step 20

Select all of the faces you want to extract.

Step 21

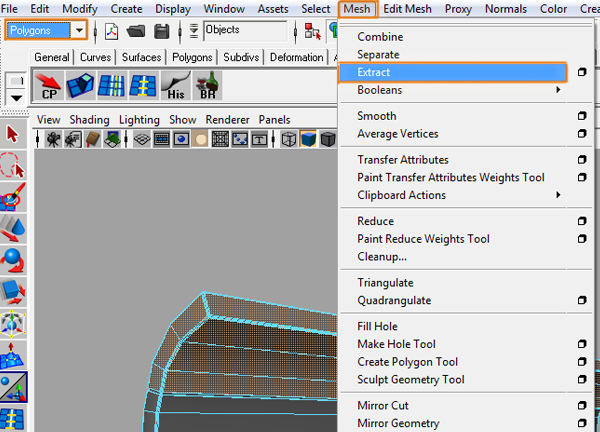

Under the “Polygons” menu, go to “Mesh > Extract”.

Step 22

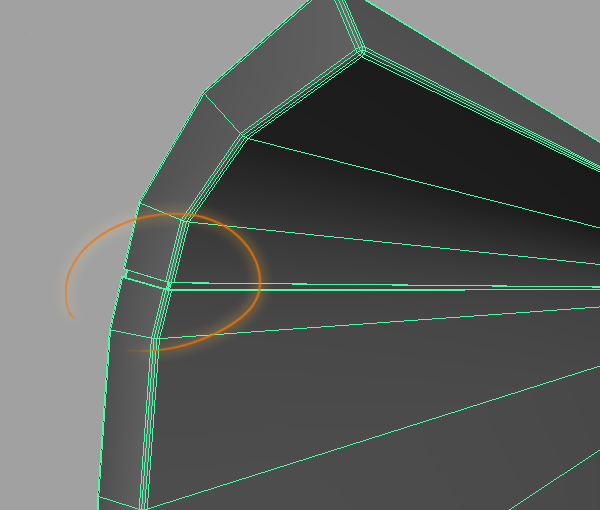

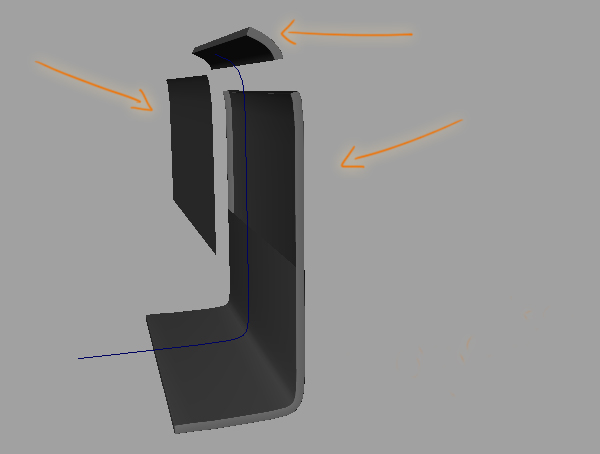

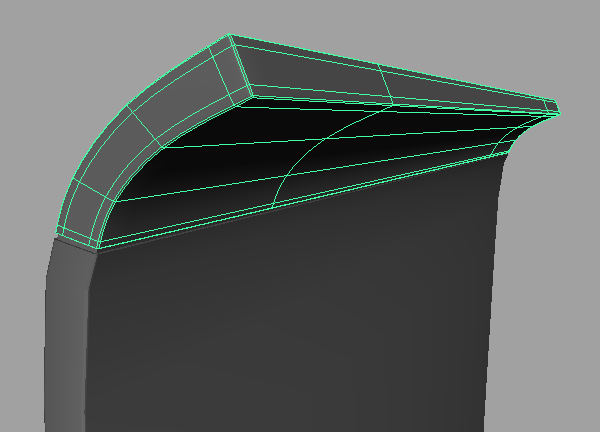

Now you will have 2 different objects.

Step 23

Now, because you won´t be editing more geometry on this object, you can press ’3′ on the keyboard to smooth the polygons.

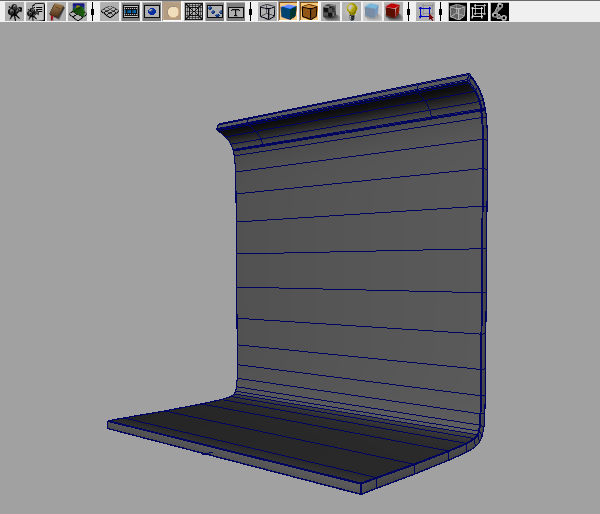

Step 24

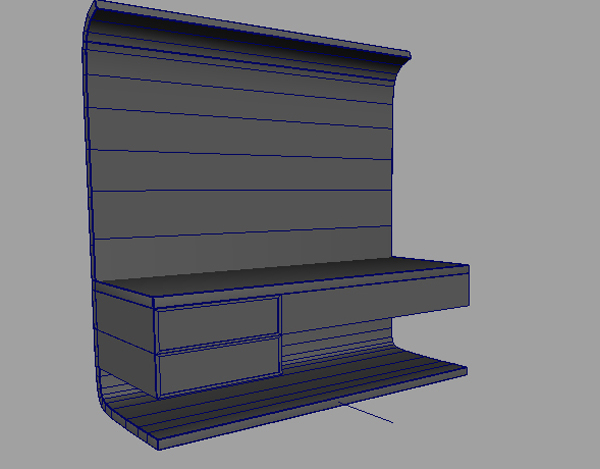

This is what you should have so far. All the main outside shapes of the furniture.

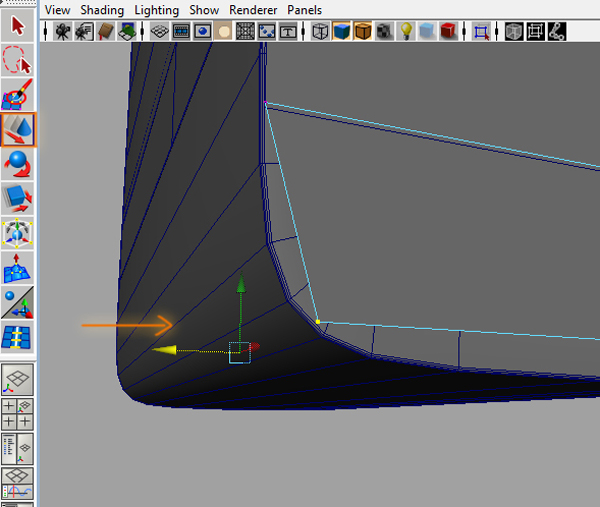

Step 25

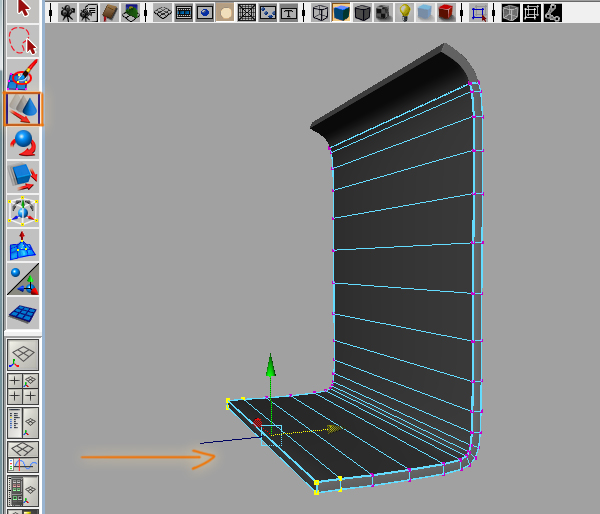

Select the vertexes at the bottom of the object and move them inward. This will make the bottom part of the object smaller.

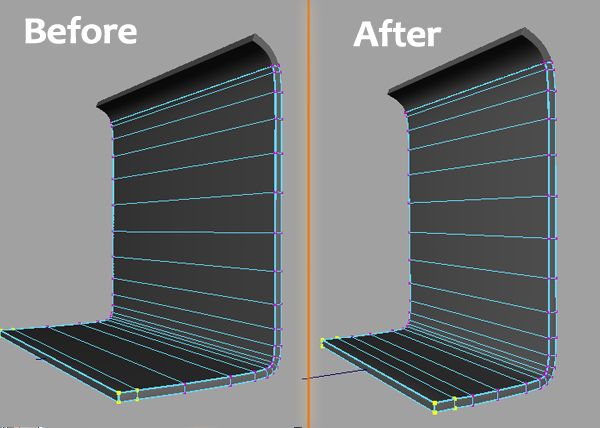

Step 26

If you look at the image below you will see the difference.

Step 27

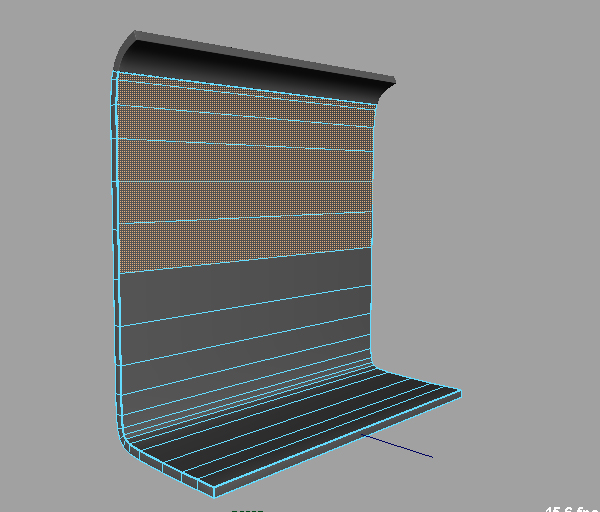

Now you need to extract the mirror so you can add a different shader to it. Select all of the faces you want to extract.

Step 28

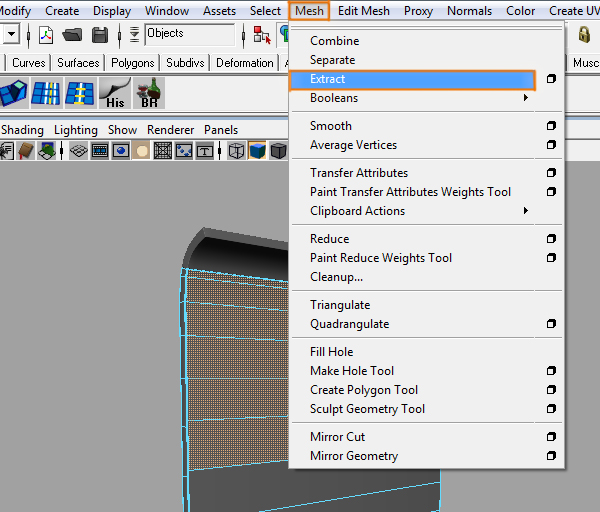

Under the “Polygons” menu, go to “Mesh > Extract”.

Step 29

At this point of the tutorial you should have 3 separate pieces of geometry.

Step 30

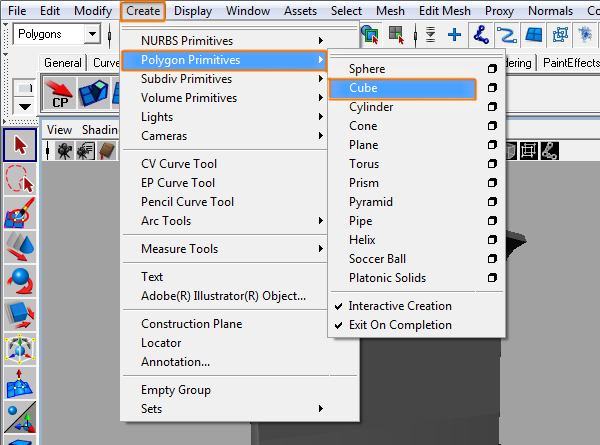

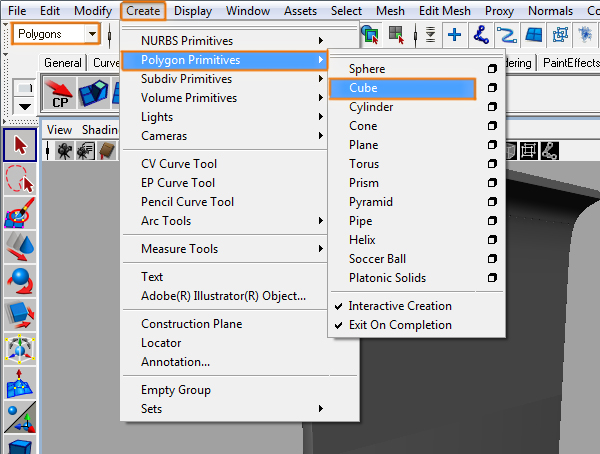

Under the “Polygons” menu, go to “Create > Polygons Primitives > Cube”.

Step 31

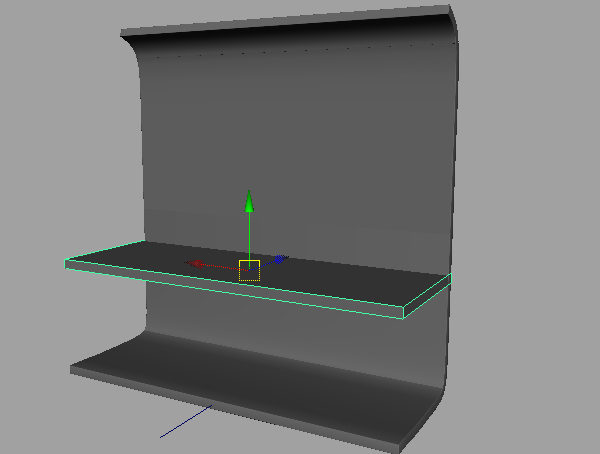

Create a cube and position it.

Step 32

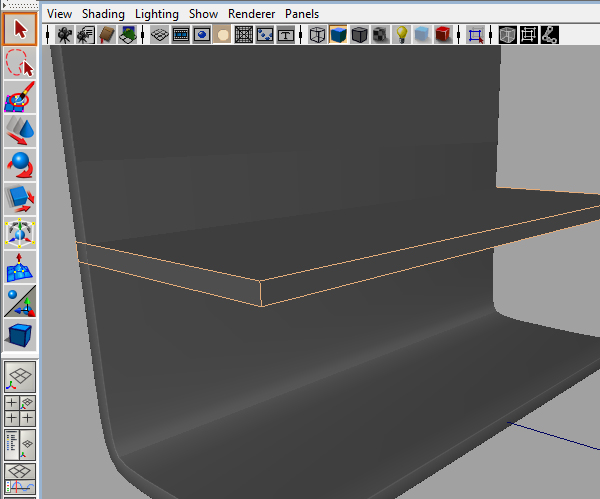

You need to smooth the outer edges of the cube. Select all of the edges you want to smooth.

Step 33

Under the “Polygons” menu, go to “Edit Mesh > Bevel (option box)”.

Step 34

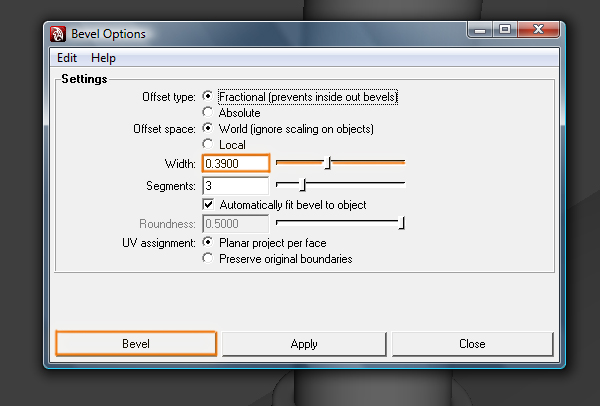

Inside the option box change the “Width” value to 0.1500 (this value can vary depending on the size of your scene) and the “Segments” to 3, then press “Bevel”.

Step 35

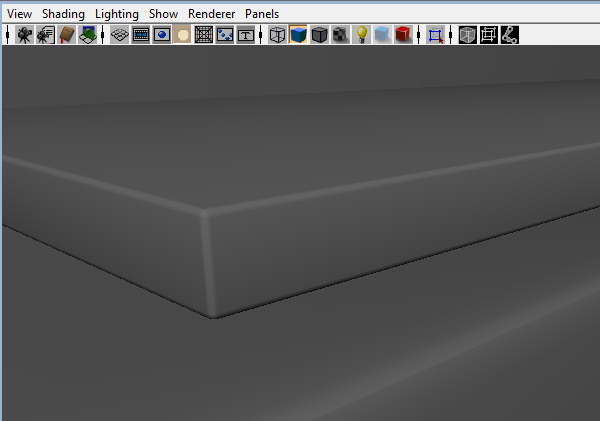

If you look closely at the edges you will see how nice they look.

Step 36

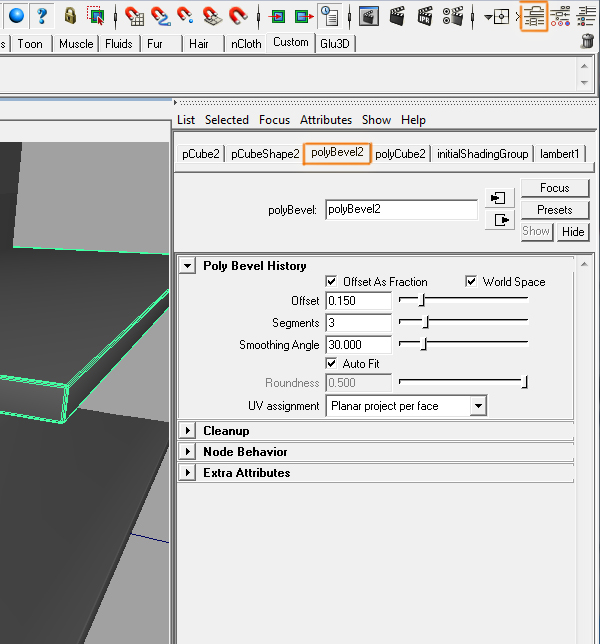

Let’s pretend you did a mistake with the Bevel values, you don´t need to go back, only go to the “Attributes Editor” and modify the values (changes will be seen in real time) .

Step 37

Go to “Create > Polygons Primitives > Cube”.

Step 38

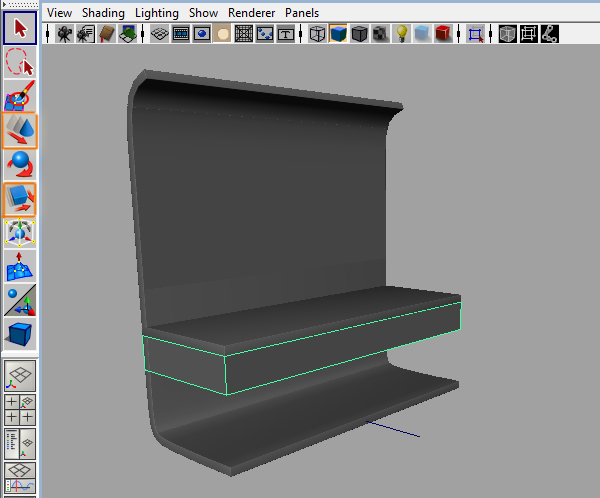

Create a cube beneath the table you created earlier.

Step 39

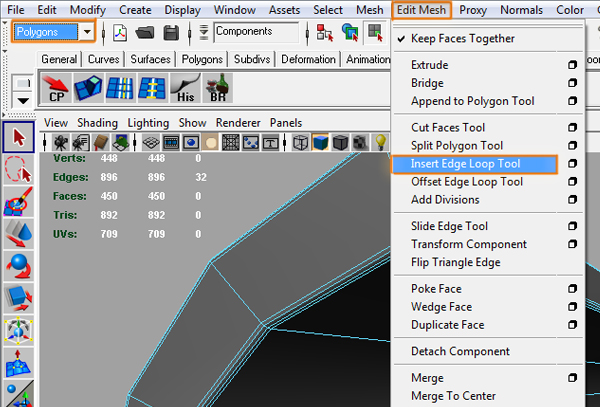

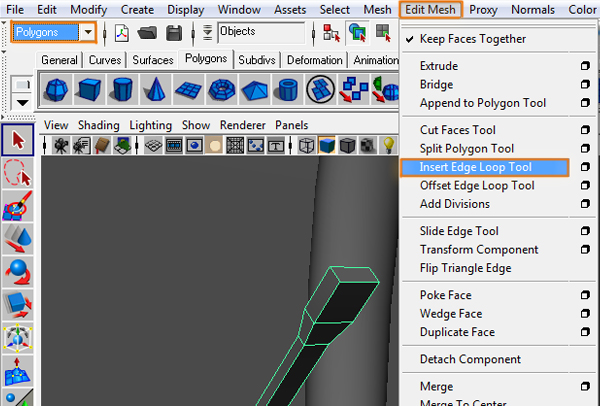

With the cube selected go to “Edit Mesh > Insert Edge Loop Tool”, under the “Polygons” menu,.

Step 40

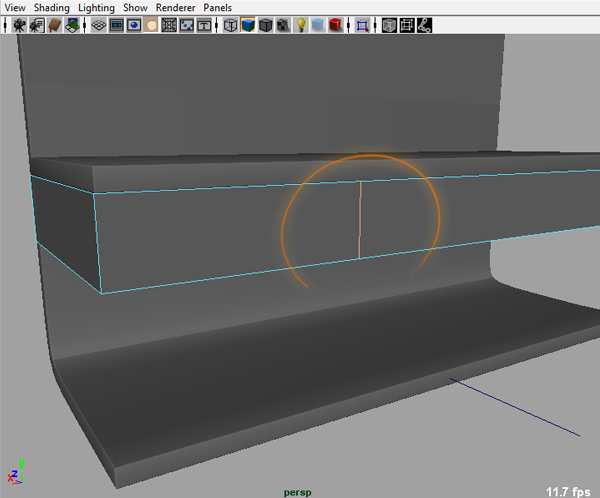

Create an edge at the first third of the cube.

Step 41

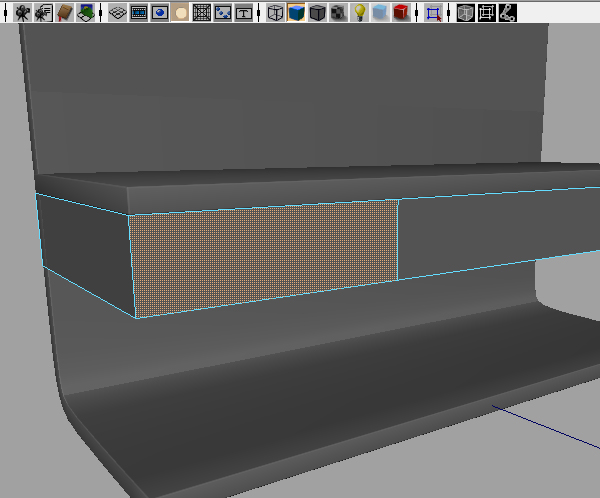

Select the small face that was created as a result of the edge loop.

Step 42

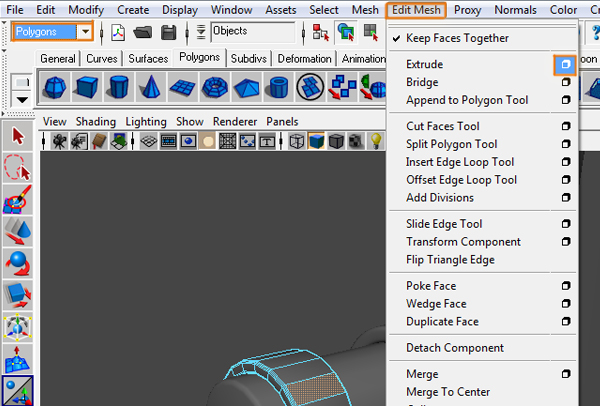

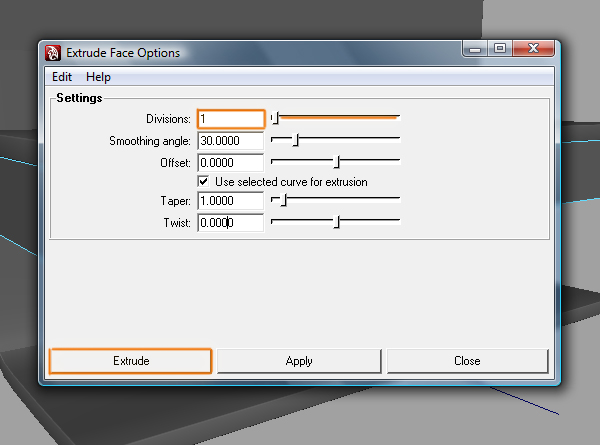

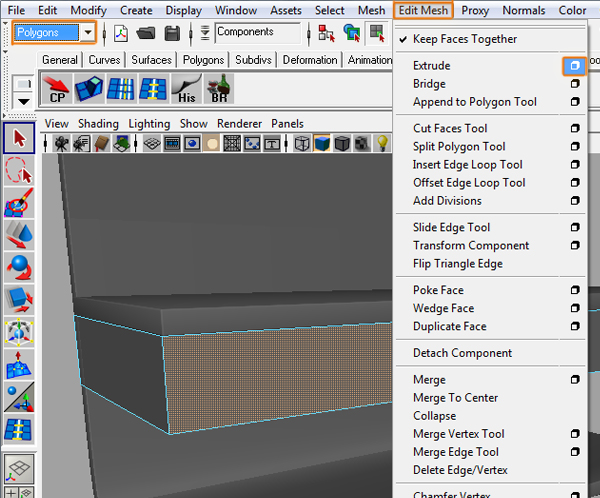

With that face still selected, go to “Edit Mesh > Extrude (option box), under the “Polygons” menu.

Step 43

Inside the option box, change the “Divisions” value to 1 and click on “Extrude”.

Step 44

Extrude the face just a bit outside of the cube.

Step 45

With the face still selected go to “Edit Mesh > Extrude”, under the “Polygons” menu,.

Step 46

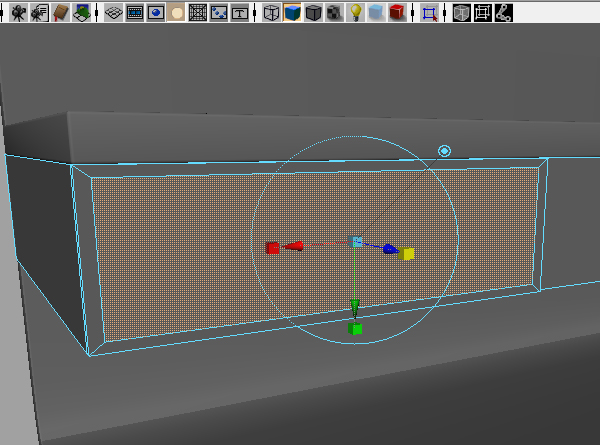

Extrude the size of the face to make it smaller.

Step 47

Again with the face still selected, go to “Edit Mesh > Extrude”.

Step 48

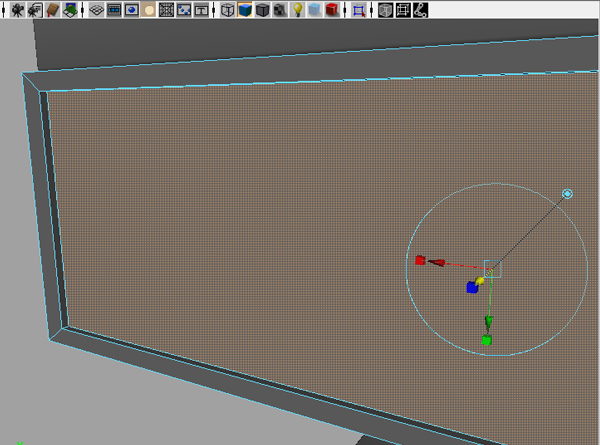

Extrude the face a very short distance to the inside of the cube.

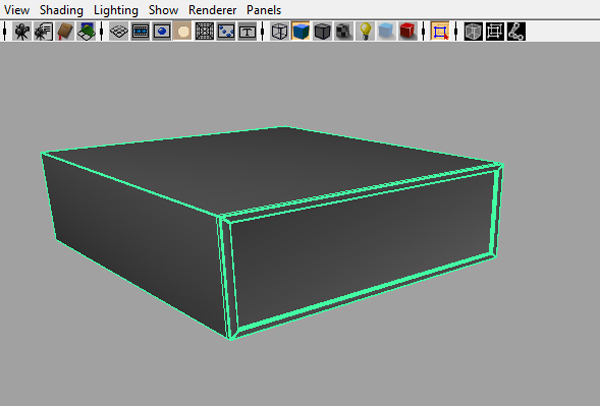

Step 49

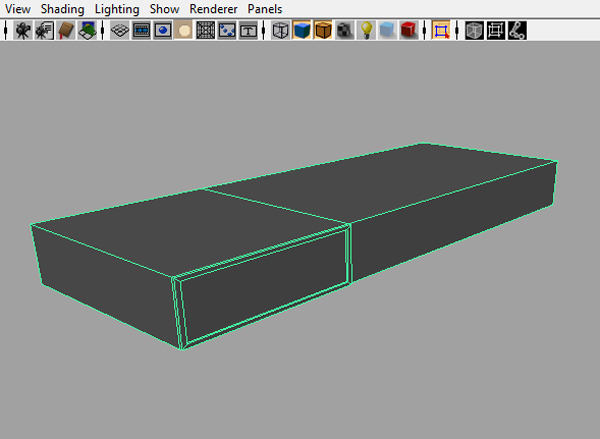

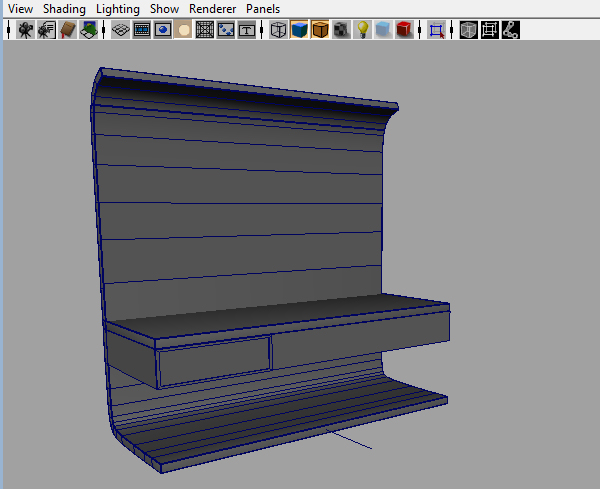

This is what you should have so far.

Step 50

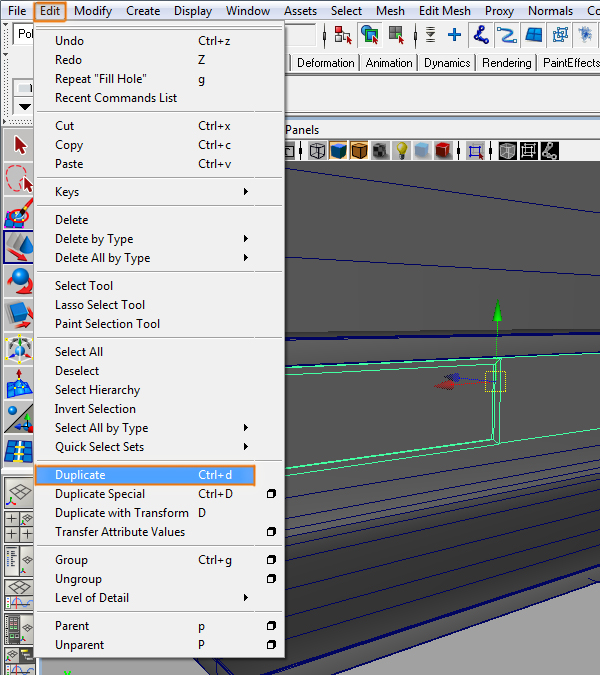

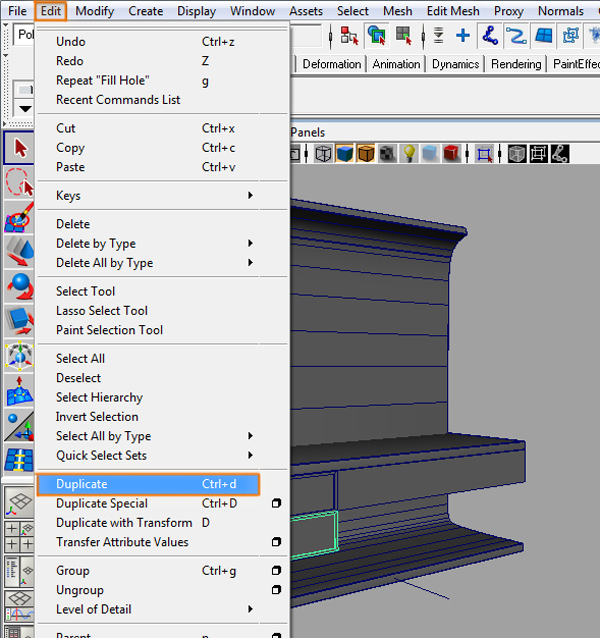

Select the drawer you created before, and go to “Edit > Duplicate”.

Step 51

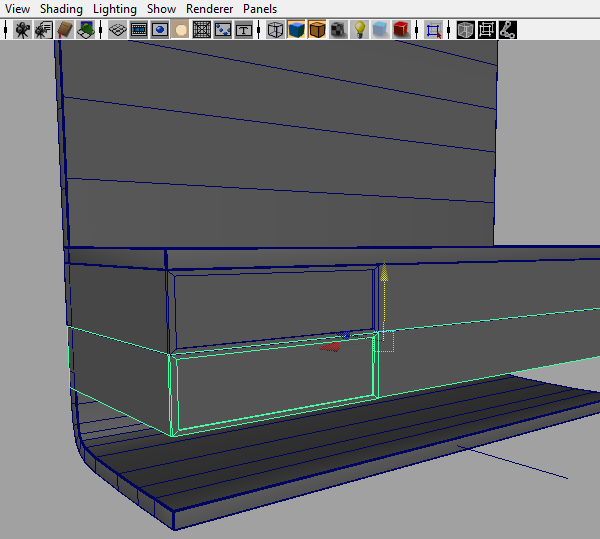

Move the copy just beneath the original drawer.

Step 52

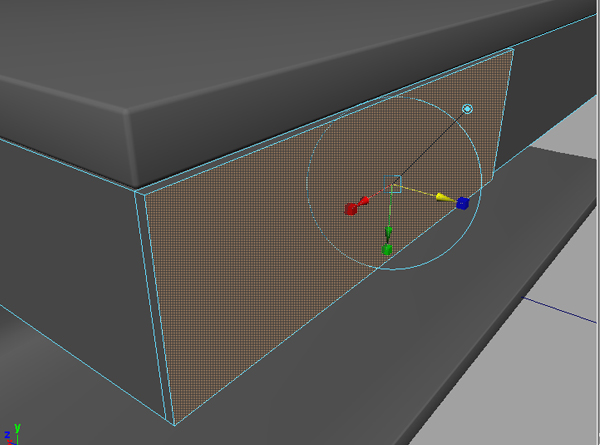

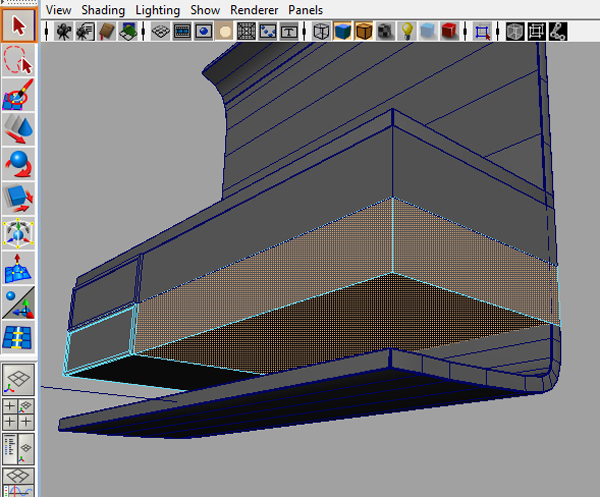

For this copy of the drawer you only need a section of it. Select all of the faces you want to delete.

Step 53

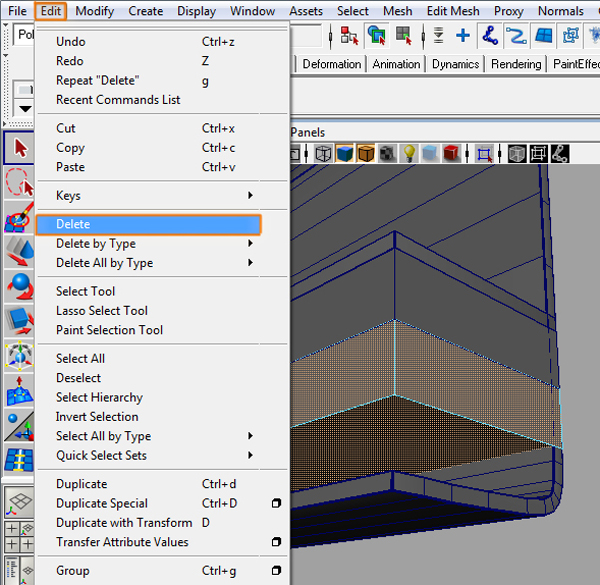

Go to “Edit > Delete”.

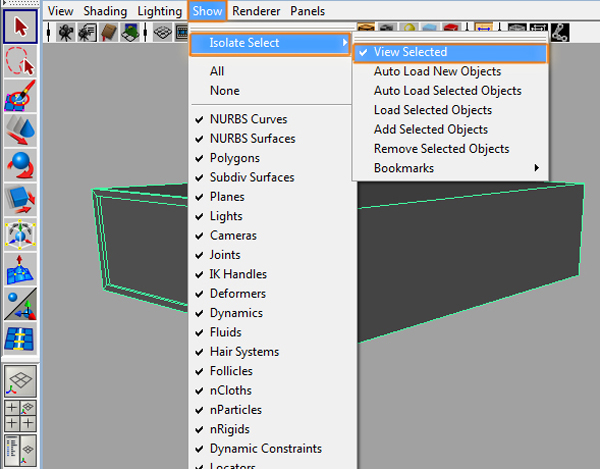

Step 54

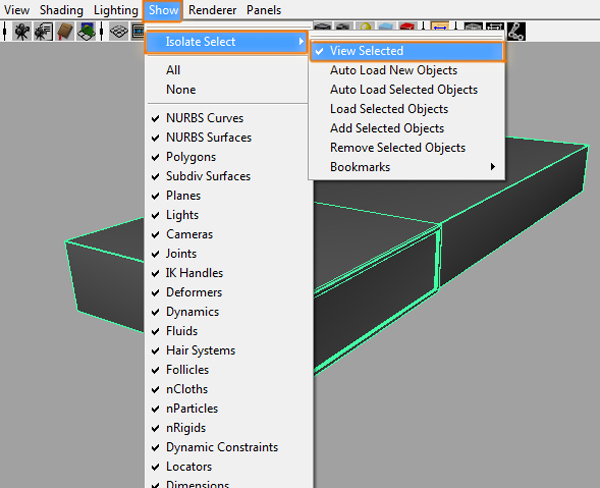

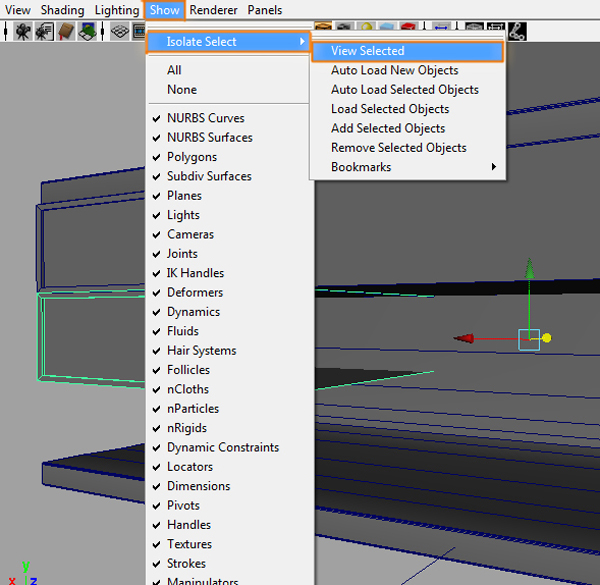

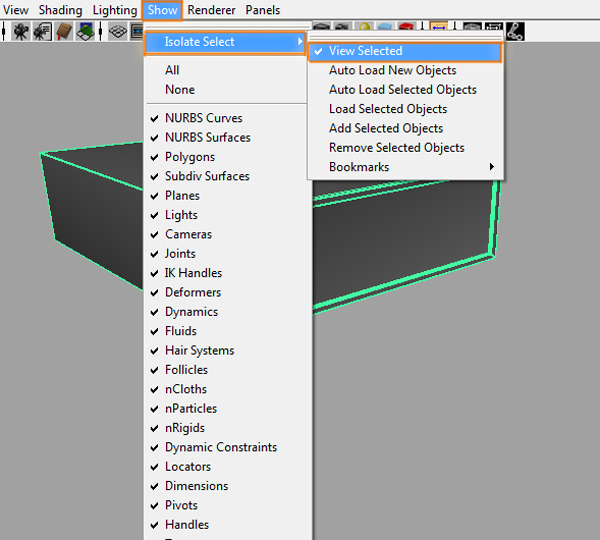

Select the remaining section of the drawer, and inside the view menu, go to “Show > Isolate Select > View Selected”.

Step 55

Now that we can only see the drawer we can work better with it.

Step 56

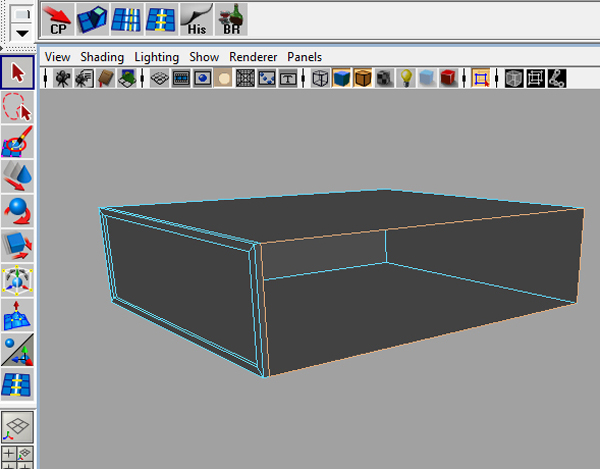

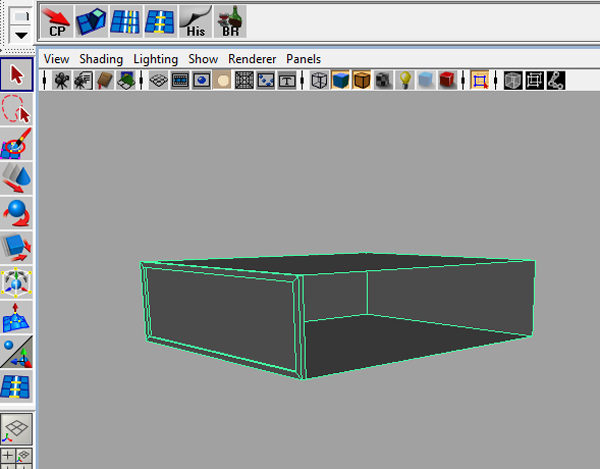

As you can see, the drawer has a missing a face that you need to add. Select all of the edges that are connected with the missing face.

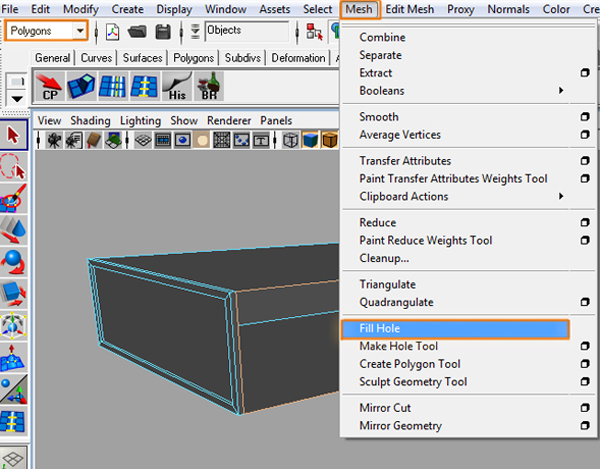

Step 57

Under the “Polygons” menu, go to “Mesh > Fill Hole”.

Step 58

Now the missing face has been added to the drawer.

Step 59

To see the whole scene, select the drawer, and under the view menu, go to “Show > Isolate Select > View Selected”.

Step 60

Now we have 2 drawers, and we have space for one more.

Step 61

Select the last drawer, and go to “Edit > Duplicate”.

Step 62

Position the copy beneath the last drawer.

Step 63

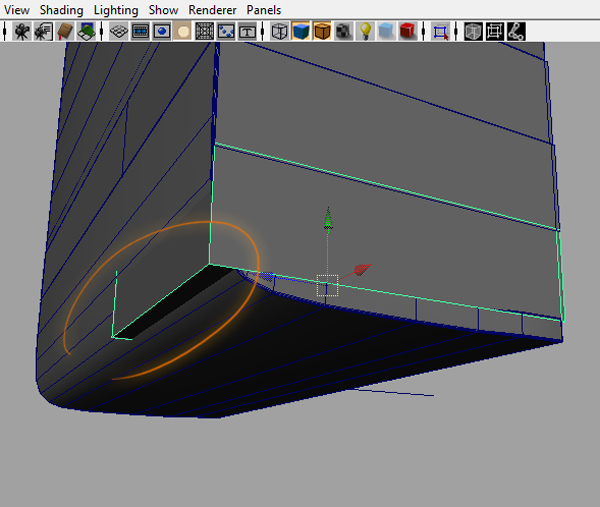

The last drawer is visible from the back of the object.

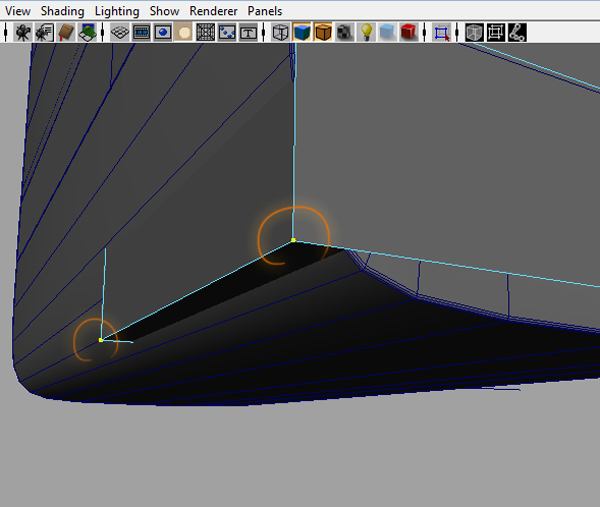

Step 64

Select the 2 vertexes that go out of the geometry.

Step 65

Move them inward with the move tool.

Step 66

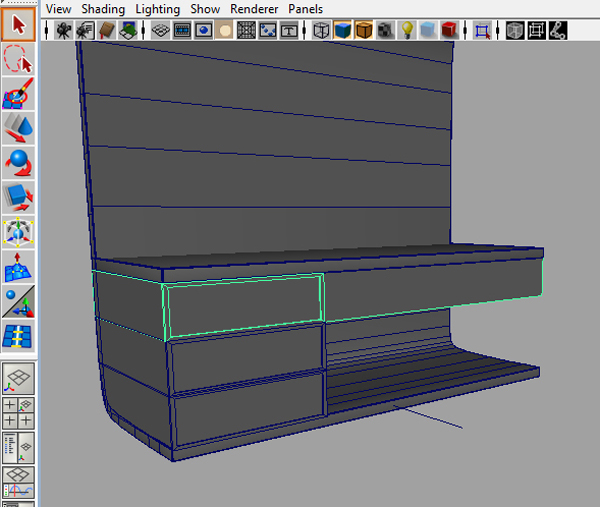

Now you need to smooth the edges of your drawers, so start selecting the top drawer.

Step 67

To work better with it, isolate it using the same process as before.

Step 68

Now you should be looking at only one drawer.

Step 69

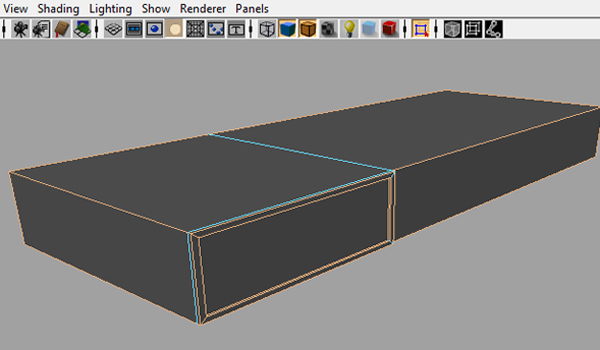

Select all of the edges you want to smooth.

Step 70

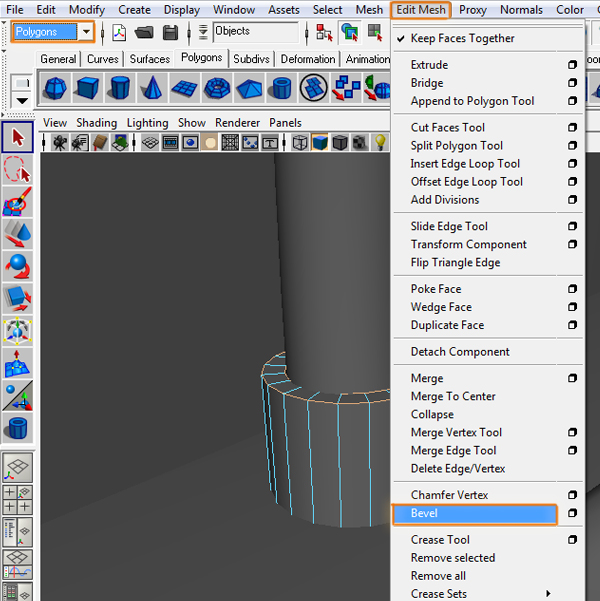

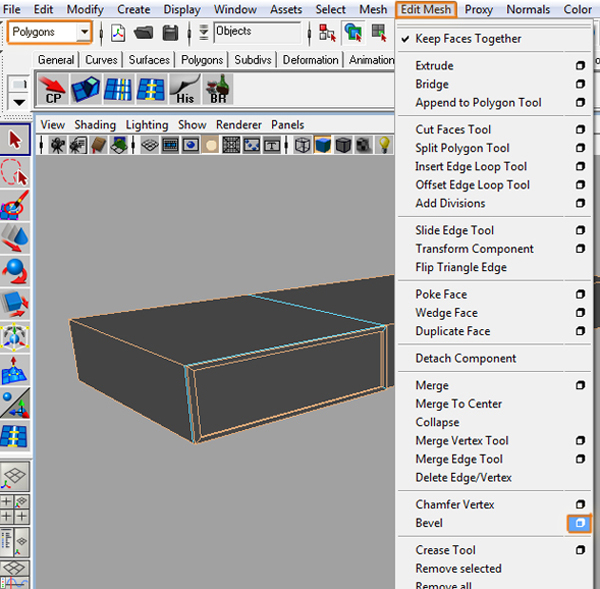

Under the “Polygons” menu, go to “Edit Mesh > Bevel (option box)”.

Step 71

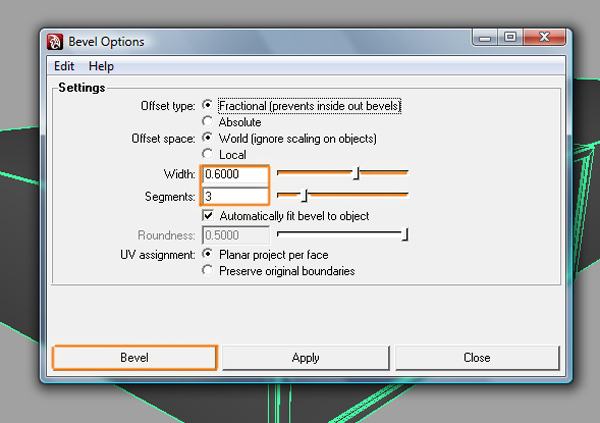

Inside the option box, change the “Width” value to 0.6000 (this value will be different depending on the size of your scene) and the “Segments” to 3, then press “Bevel”.

Step 72

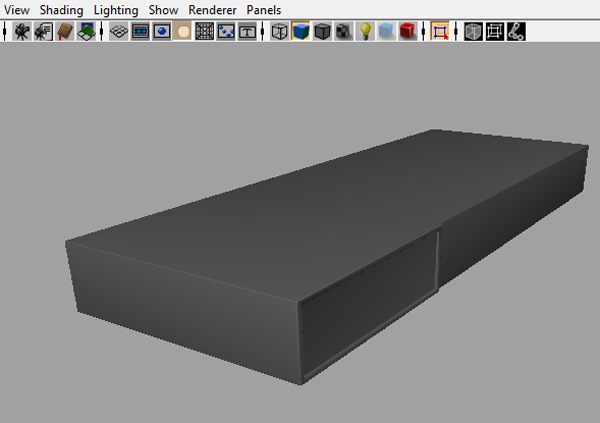

The edges of the drawer should look nice and smooth now.

Step 73

Select the drawer, and under the view menu, go to “Show > Isolate Select > View Selected”.

Step 74

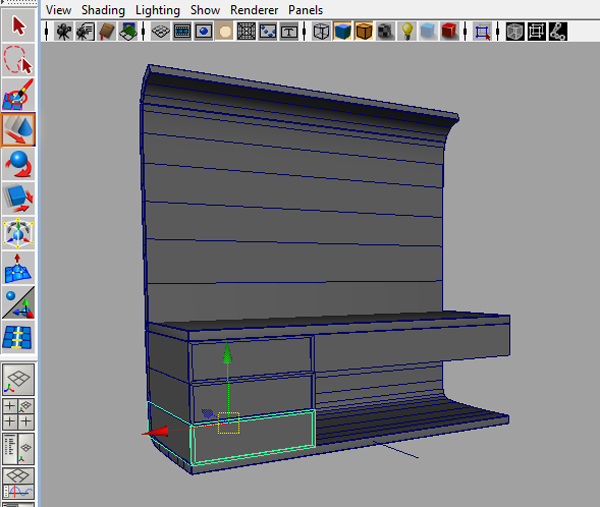

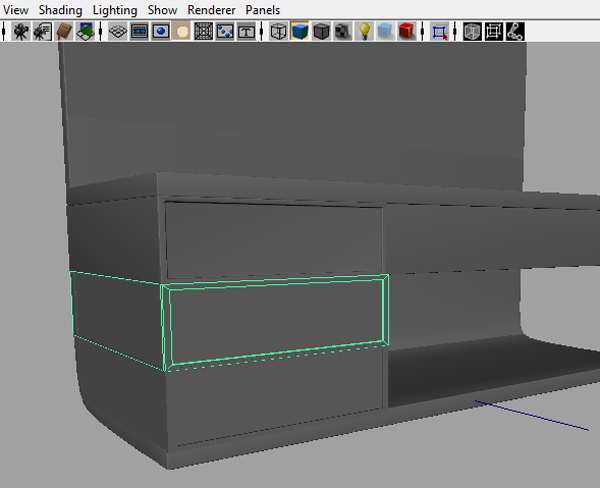

Now that all of the scene is visible, select the middle drawer.

Step 75

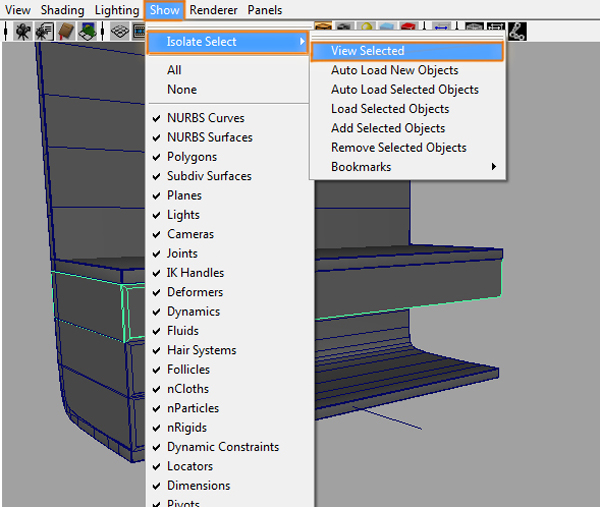

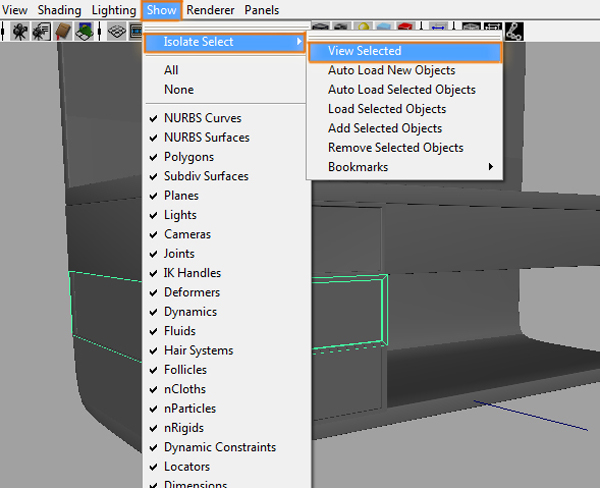

Under the view menu, go to “Show > Isolate Select > View Selected”.

Step 76

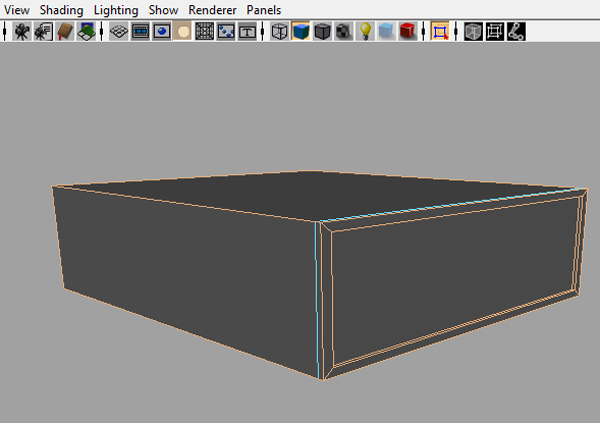

Select all of the edges you want to smooth.

Step 77

Under the “Polygons” menu, go to “Edit Mesh > Bevel”.

Step 78

Now that the edges look nice, select the drawer.

Step 79

Under the view menu, go to “Show > Isolate Select > View Selected”.

Step 80

Now repeat the process for the last drawer.

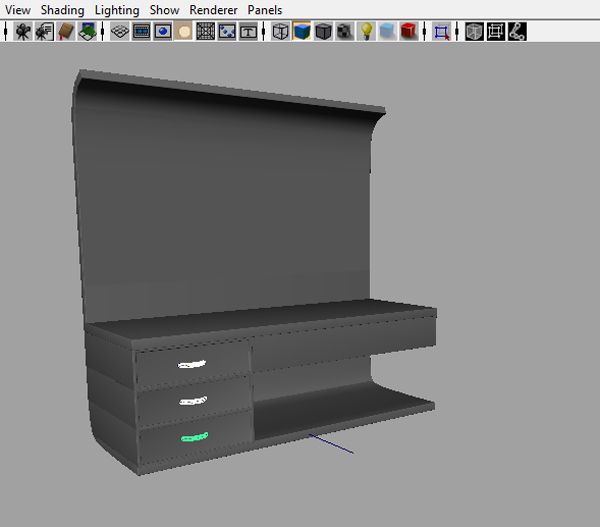

Step 81

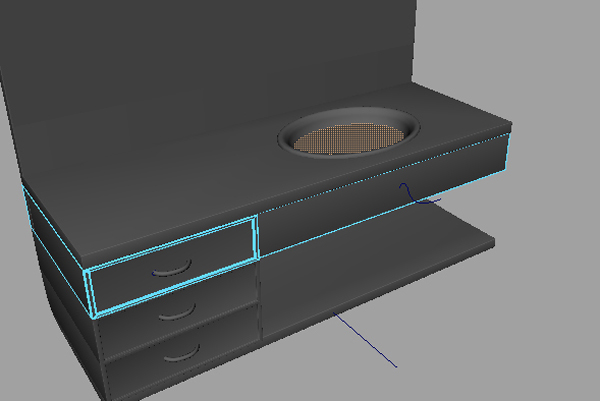

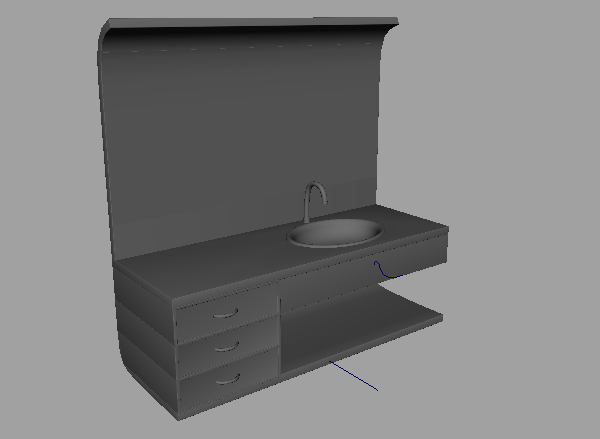

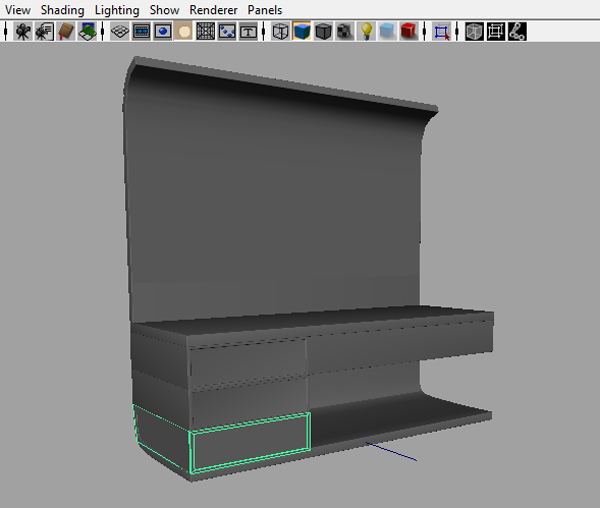

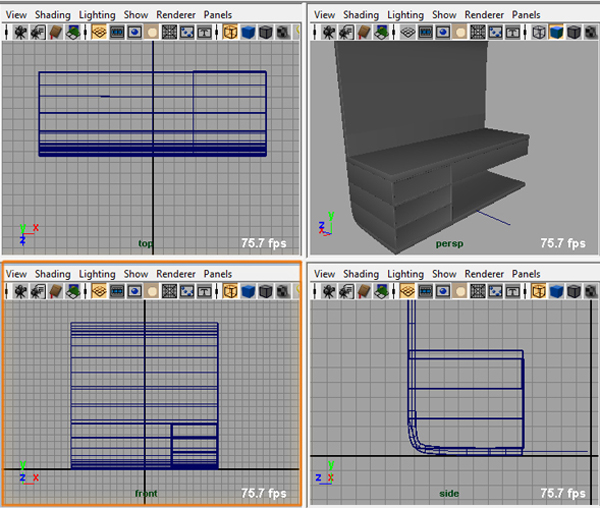

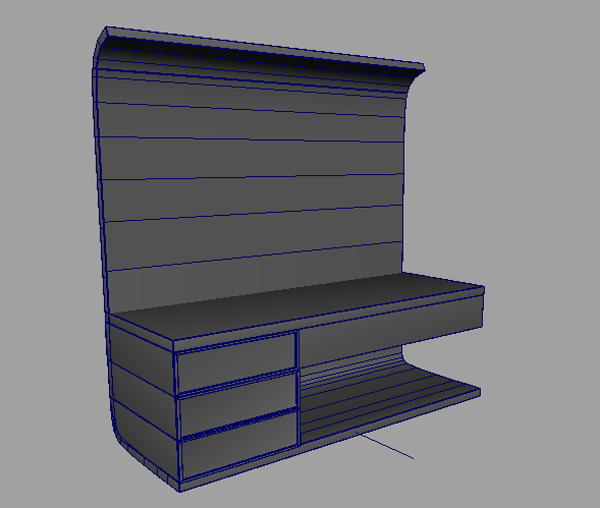

When you finish, the scene should look like this.

Step 82

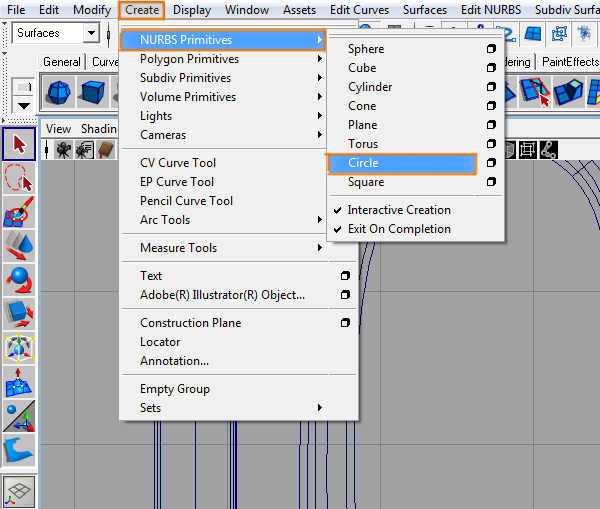

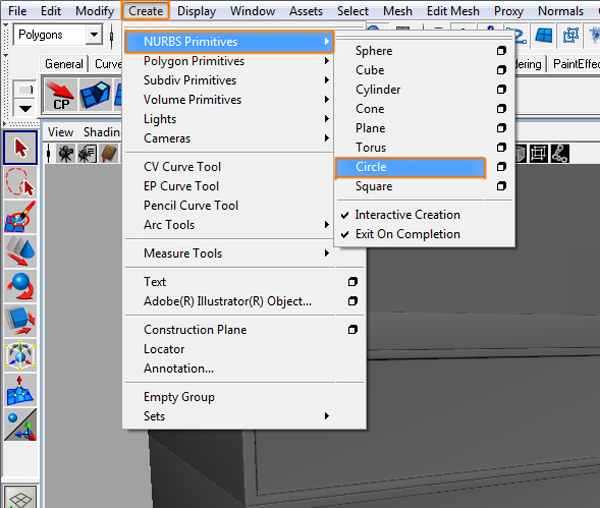

Go to “Create > NURBS Primitives > Circle”.

Step 83

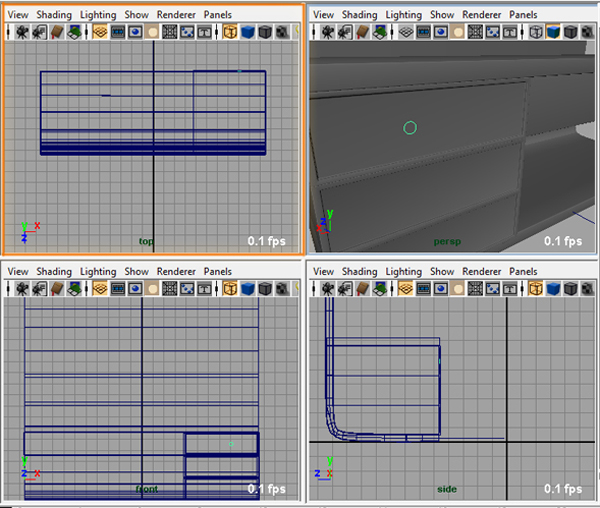

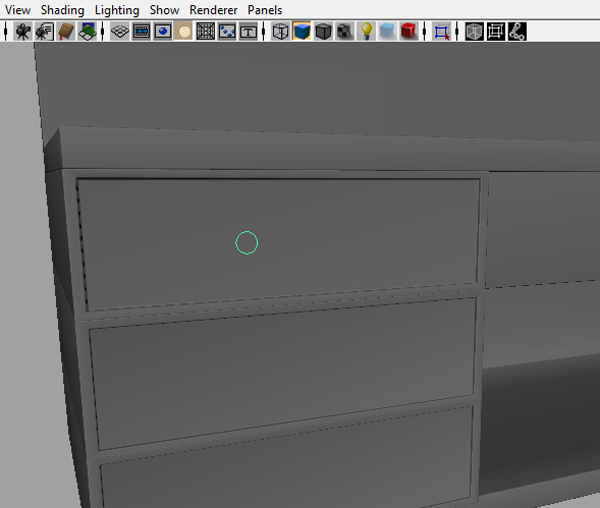

Change to the front view, and create a circle at the middle of the first drawer.

Step 84

Move the circle to the left just a bit.

Step 85

Go to “Create > CV Curve Tool”.

Step 86

Switch to the top view.

Step 87

Create a curve starting in the middle of the circle.

Step 88

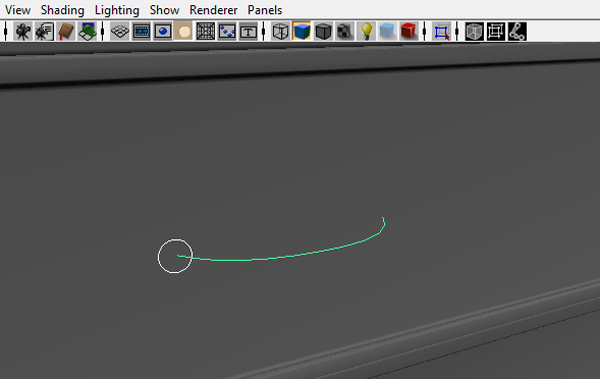

This is what you should have.

Step 89

Select the circle and then the curve. Note: The order of selection is very important.

Step 90

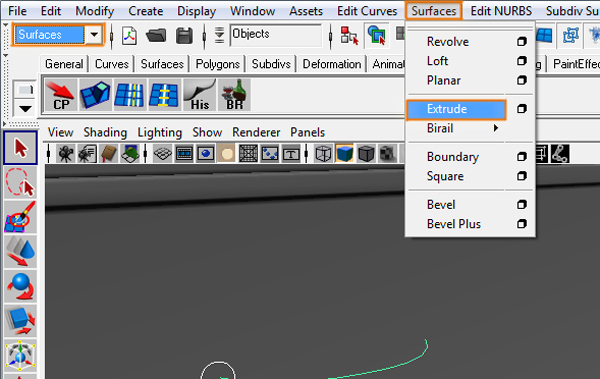

With the selection still active, go to “Surfaces > Extrude”, under the “Surfaces” menu.

Step 91

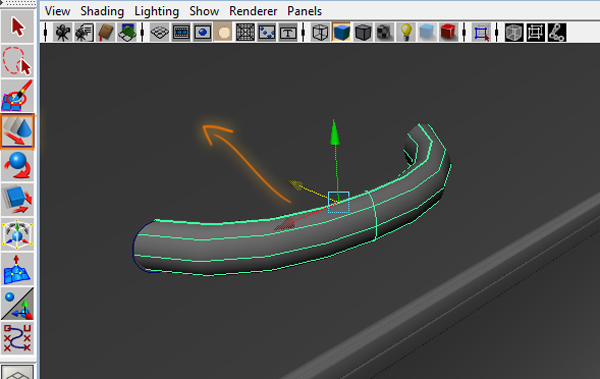

Select the NURBS object and move it inside the drawer just enough to hide the edges of the object.

Step 92

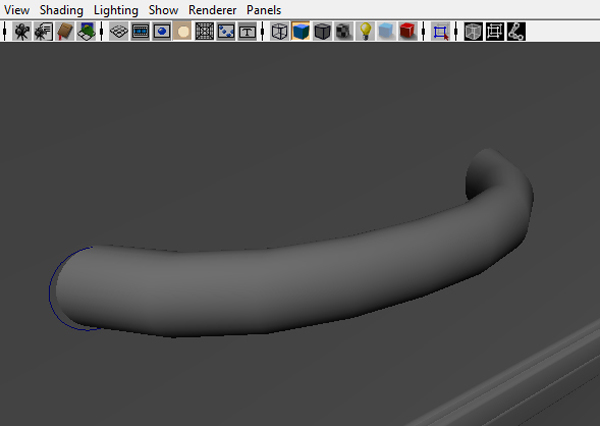

This is what you should be looking at. If you look closely you will see that it looks very low-res.

Step 93

Create some isoparms along the object.

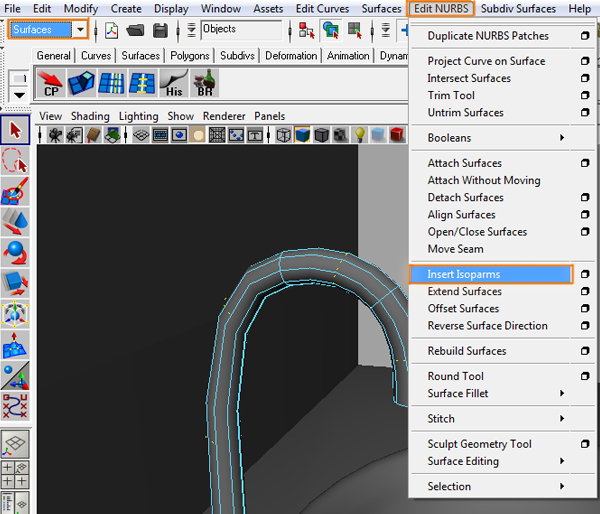

Step 94

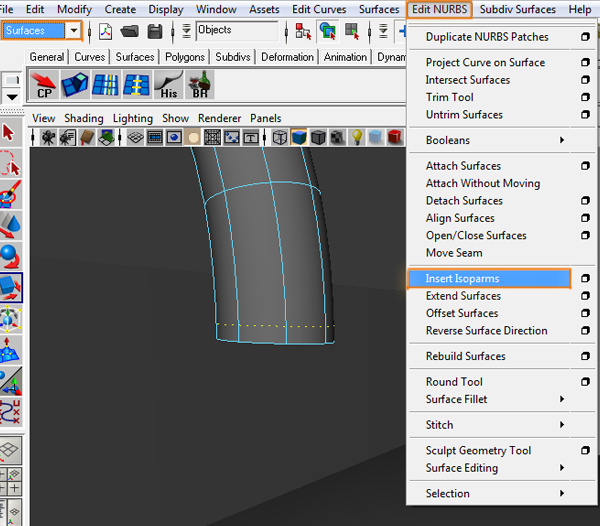

At the “Surfaces” menu, go to “Edit NURBS > Insert Isoparms”.

Step 95

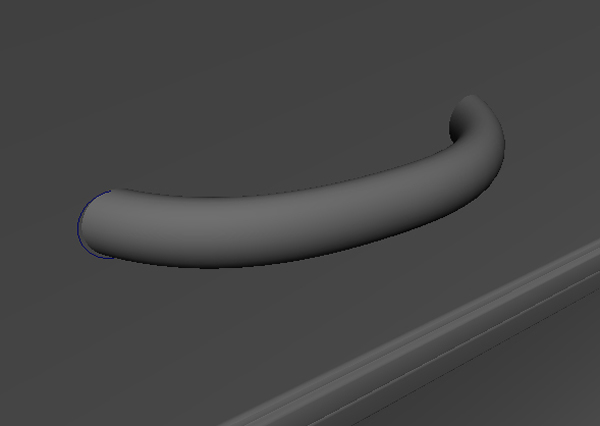

Now the NURBS object should be smooth along the curves.

Step 96

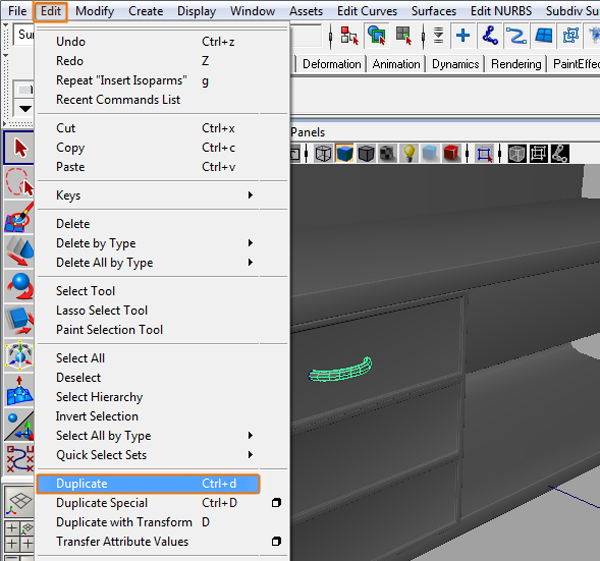

Select the object, and go to “Edit > Duplicate”.

Step 97

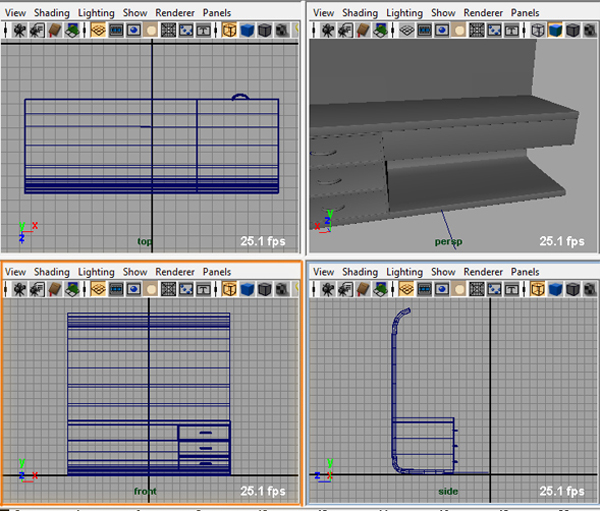

Duplicate it 2 times, and move the copies to each of the 3 drawers.

Step 98

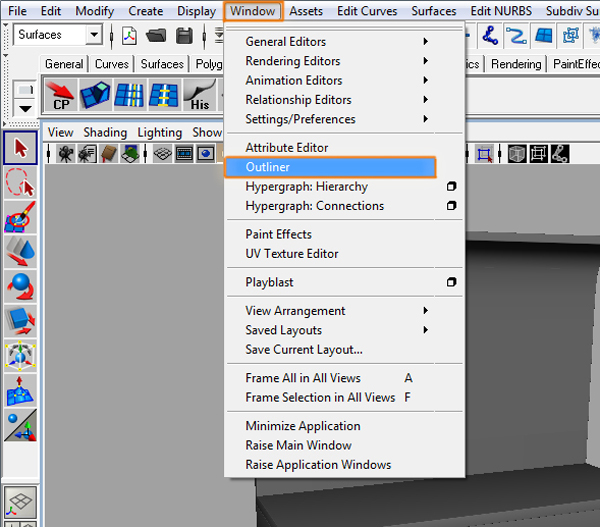

Go to “Window > Outliner”.

Step 99

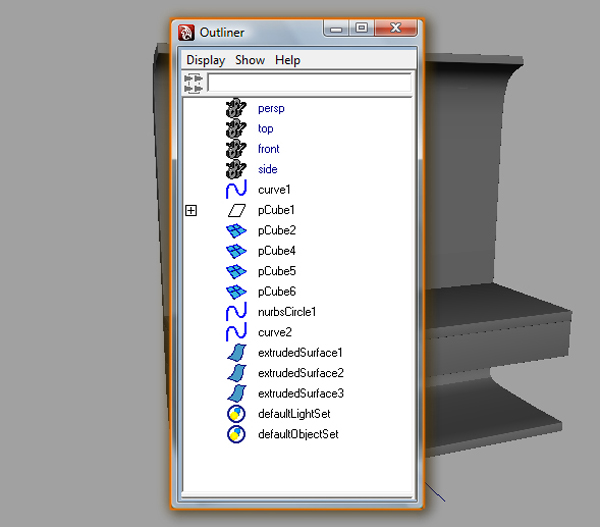

The outliner will a list of all of the objects in the scene.

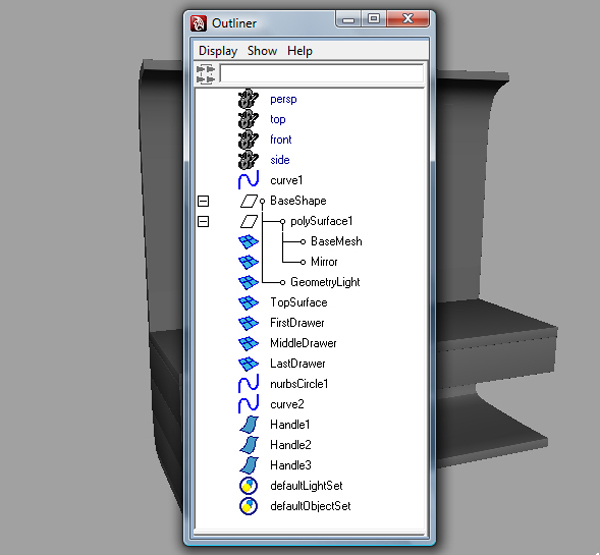

Step 100

Organize the list and add names to each of your objects. Now that the scene is organized you can close the outliner.

Step 101

Switch to the front view..

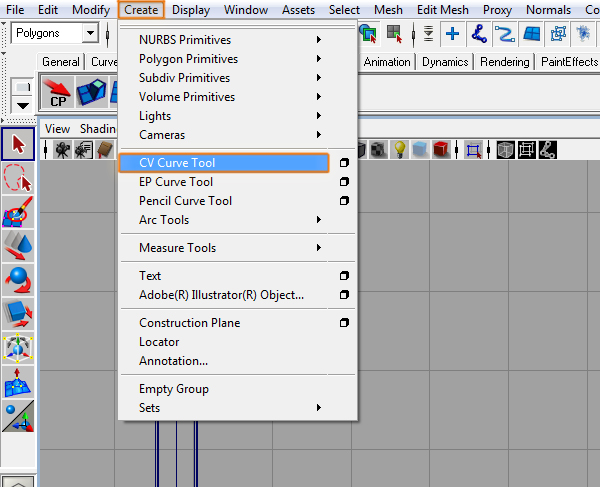

Step 102

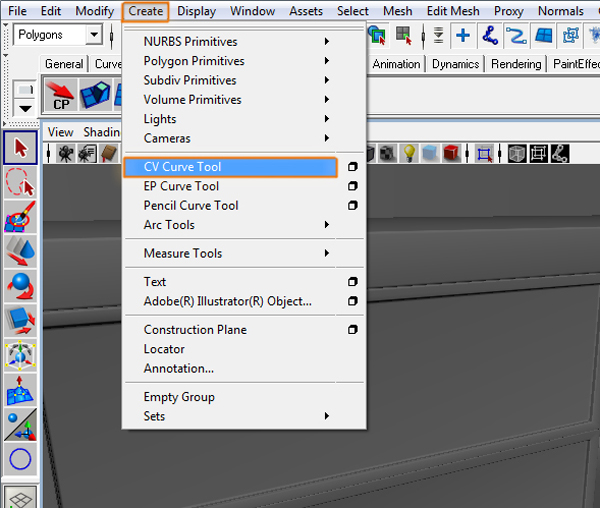

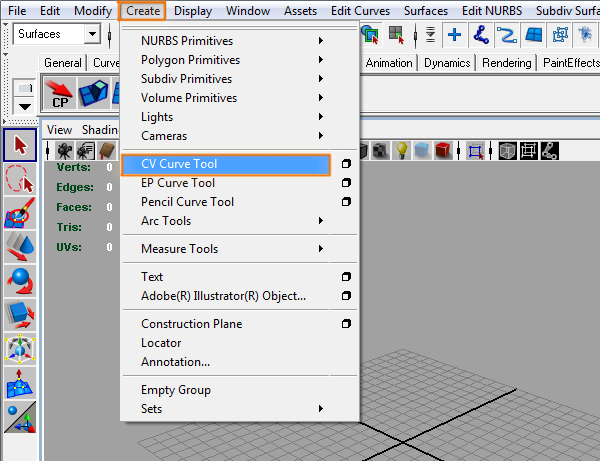

Go to “Create > CV Curve Tool”.

Step 103

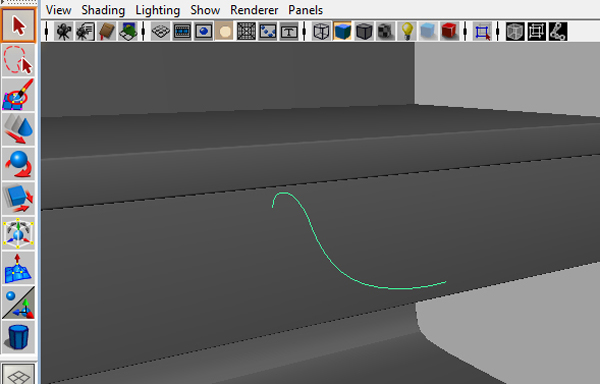

Create a curve like the one in the image below.

Step 104

Select the curve.

Step 105

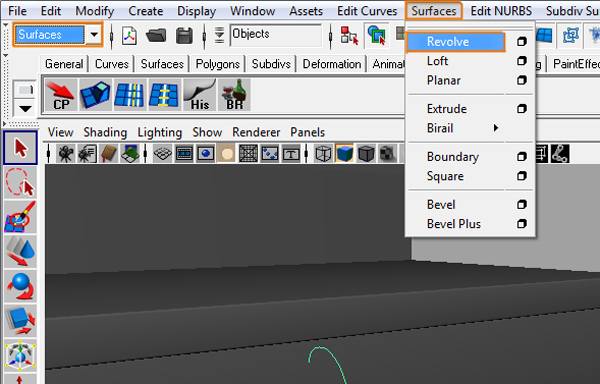

Under the “Surfaces” menu, go to “Surface > Revolve”.

Step 106

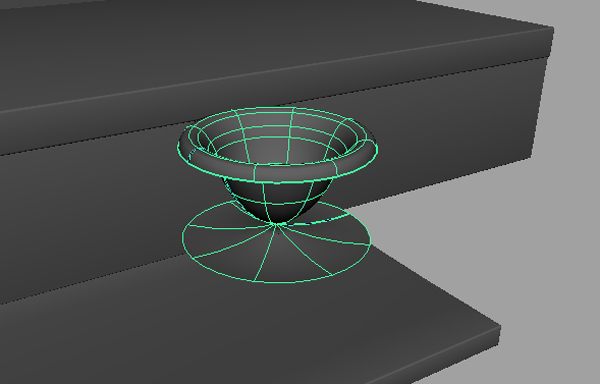

The curve should be revolved, but probably with a wrong pivot position.

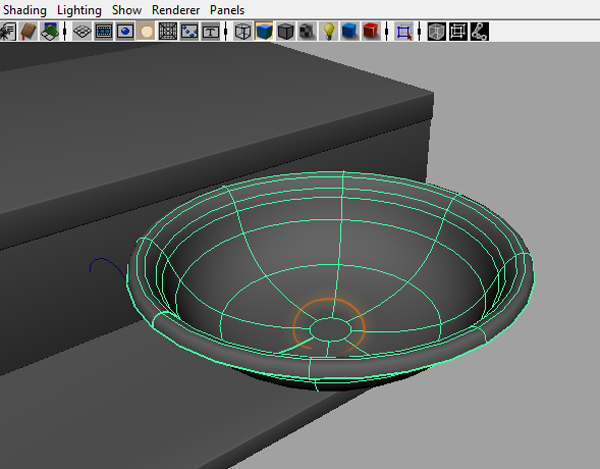

Step 107

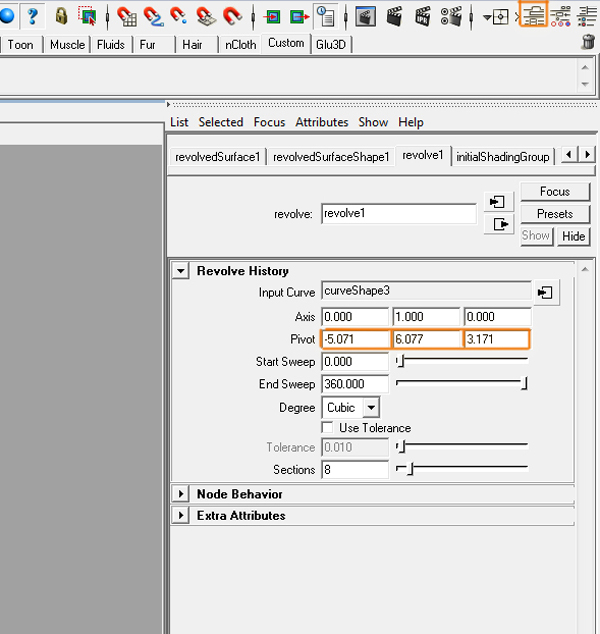

To change the position of the pivot, go to the “Attributes Editor” of the object, and under the revolve tab, change the “Pivot” values.

Step 108

Remember to leave a hole for the water to flow from.

Step 109

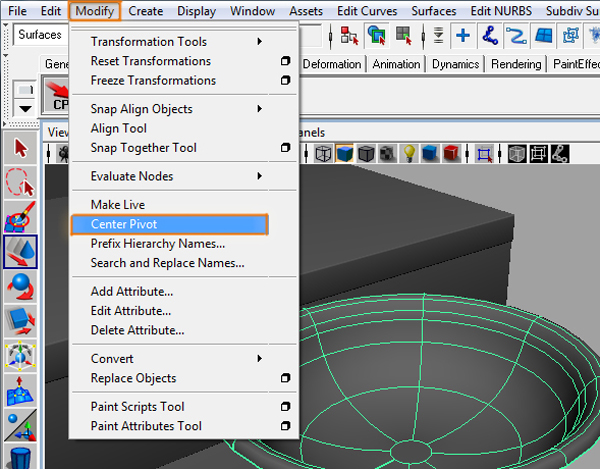

With the object selected, go to “Modify > Center Pivot”. This will position the tools in the middle of the object instead of being far away.

Step 110

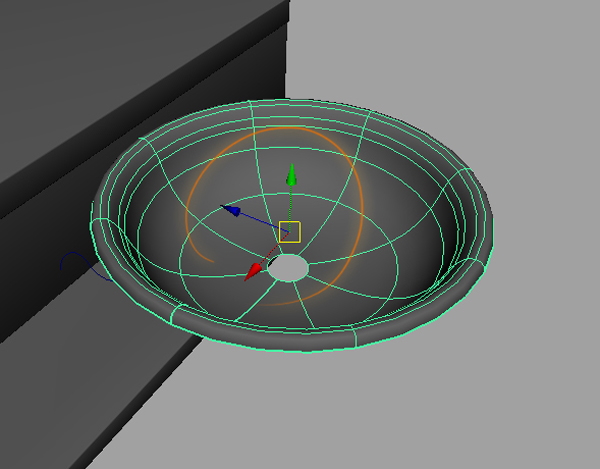

Here you can see the move tool at the middle of the object.

Step 111

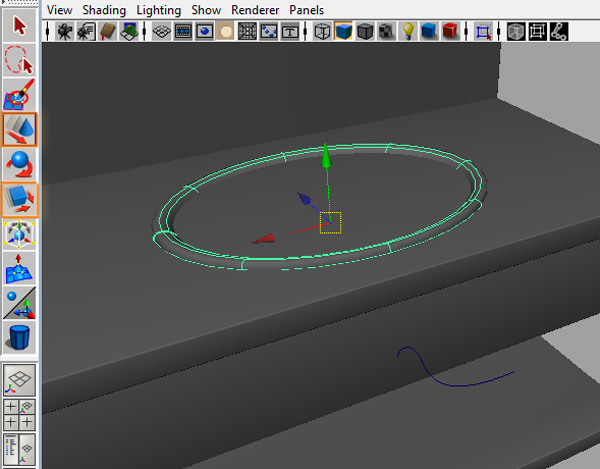

Position the object and scale it to make it oval shaped instead of a perfect circle.

Step 112

Now you need to create a hole for the object to fit into.

Step 113

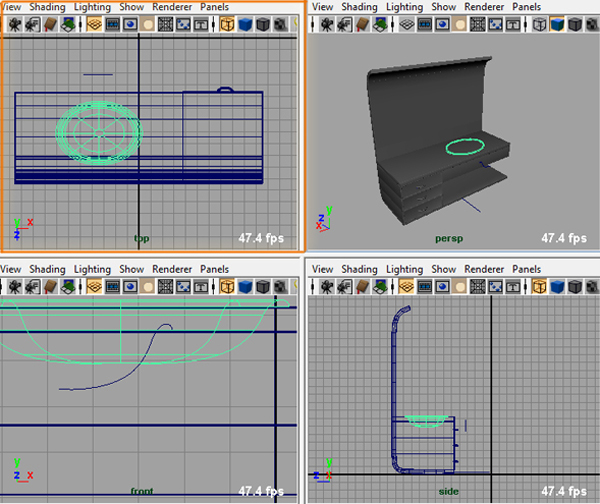

Change to the top view.

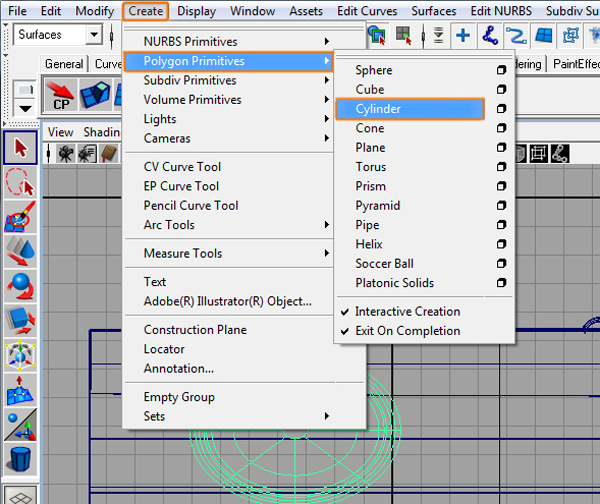

Step 114

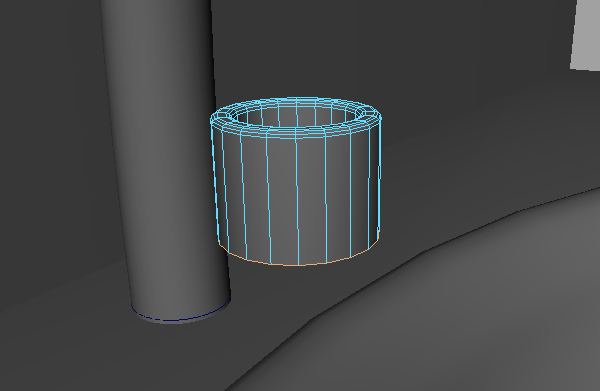

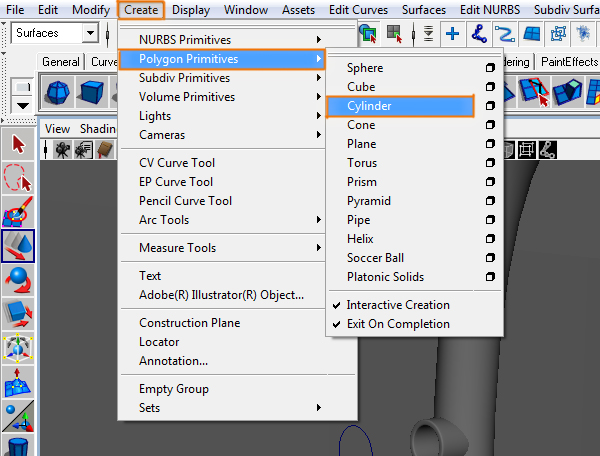

Go to “Create > Polygons Primitives > Cylinder”.

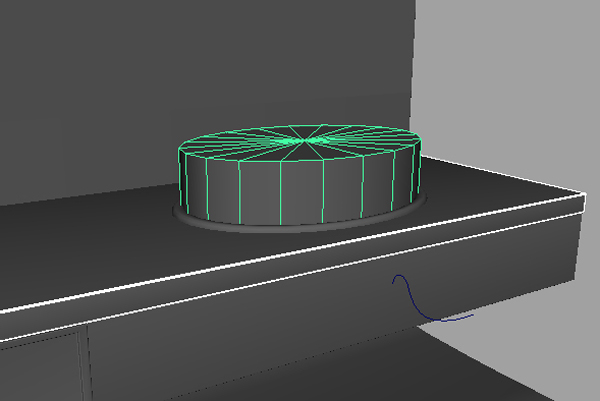

Step 115

Create a cylinder and shape it to match the shape of the object you created before.

Step 116

Position the cylinder.

Step 117

Select the cylinder and then the table. Note: The order of selection is very important.

Step 118

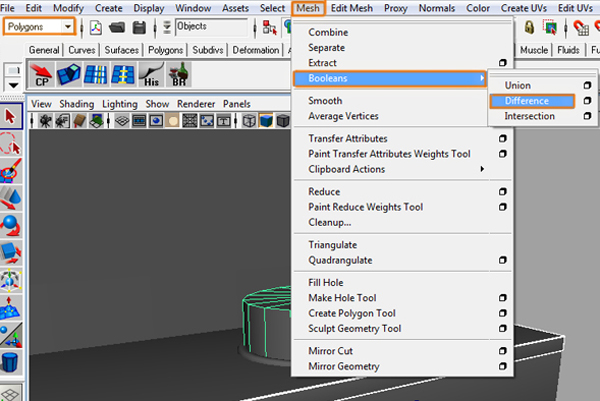

With the selection still active, go to “Mesh > Booleans > Difference”, under the “Polygons” menu.

Step 119

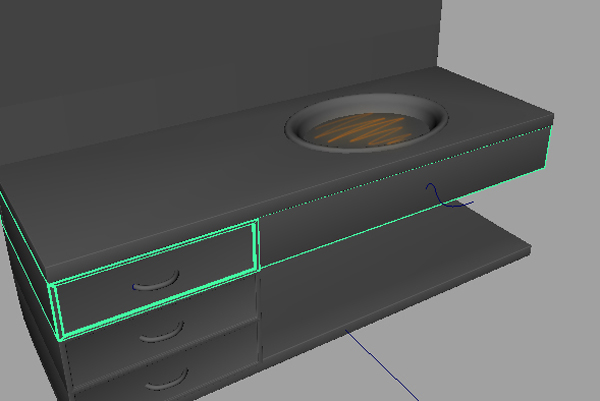

Now you should have a big hole, but it’s probably blocked by the top face of the first drawer.

Step 120

Select the top face of the first drawer.

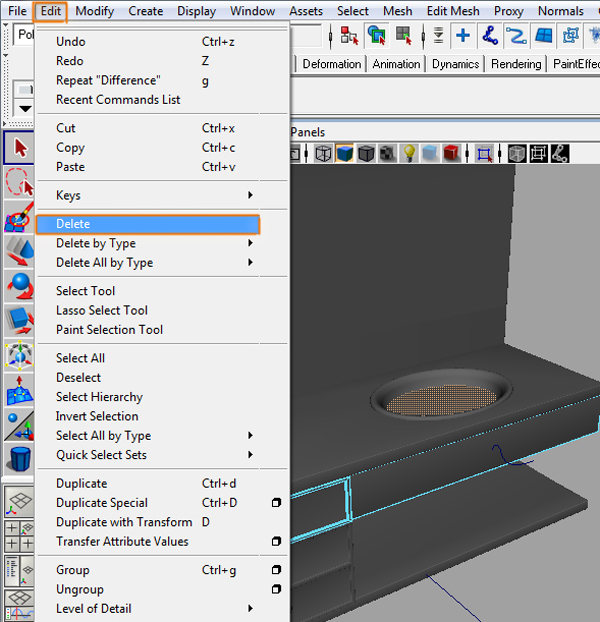

Step 121

Go to “Edit > Delete”.

Step 122

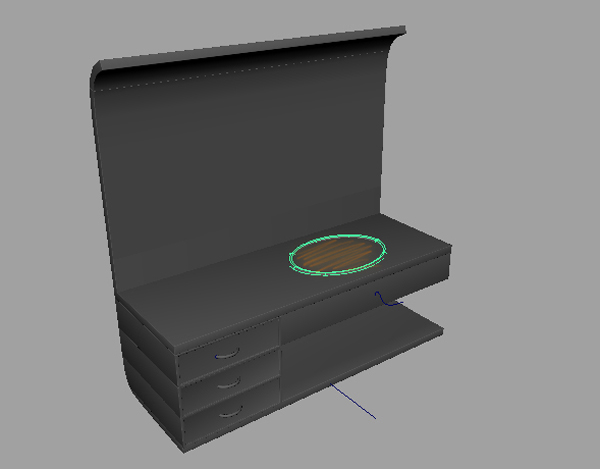

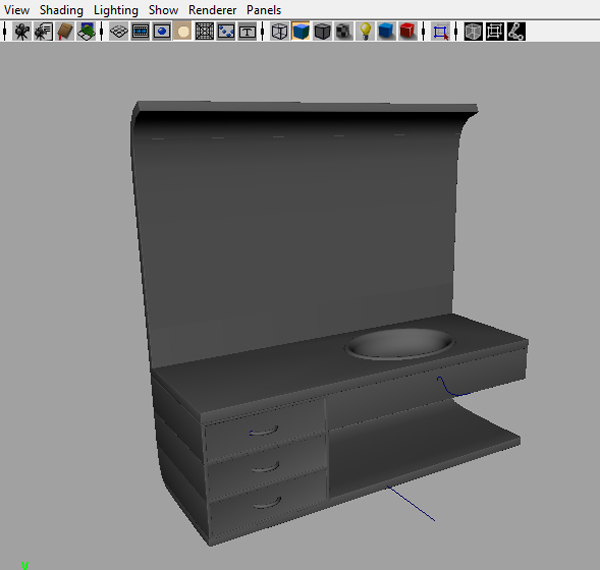

Now everything should be fine.

Step 123

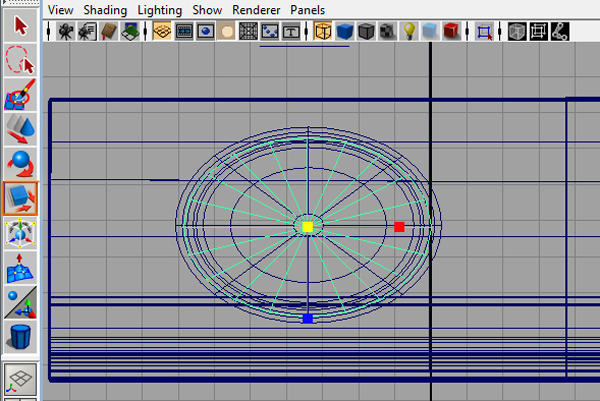

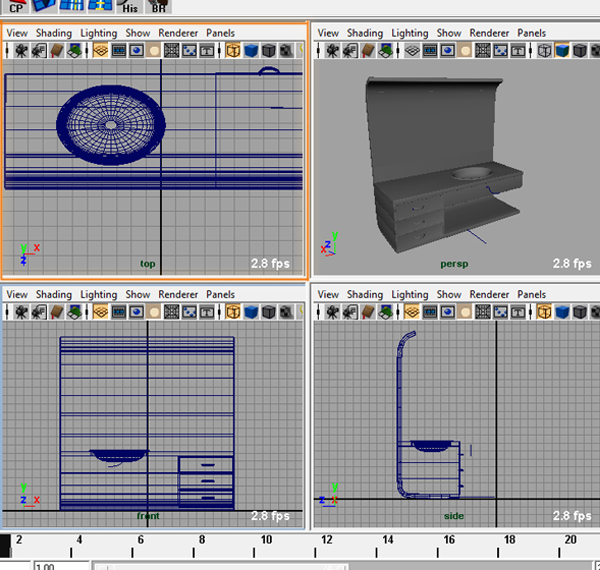

Change to the top view.

Step 124

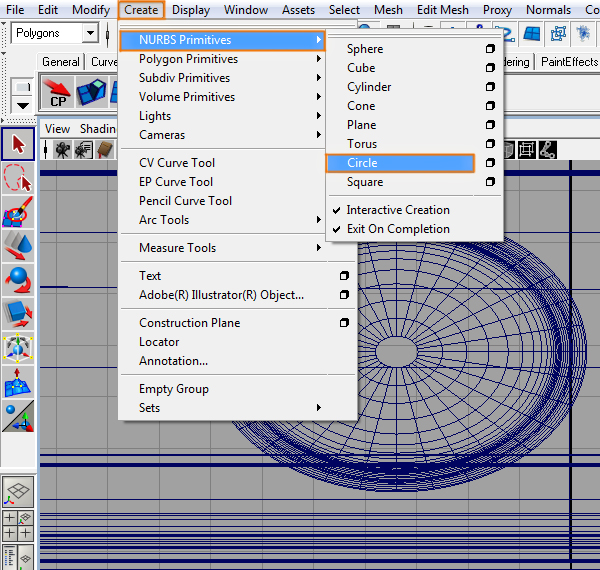

Go to “Create > NURBS Primitives > Circle.

Step 125

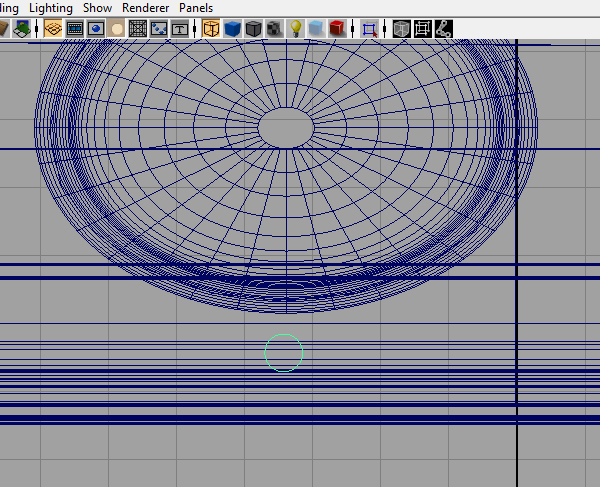

Create a circle were you want to start the object.

Step 126

Change to the side view.

Step 127

Go to “Create > CV Curve Tool”.

Step 128

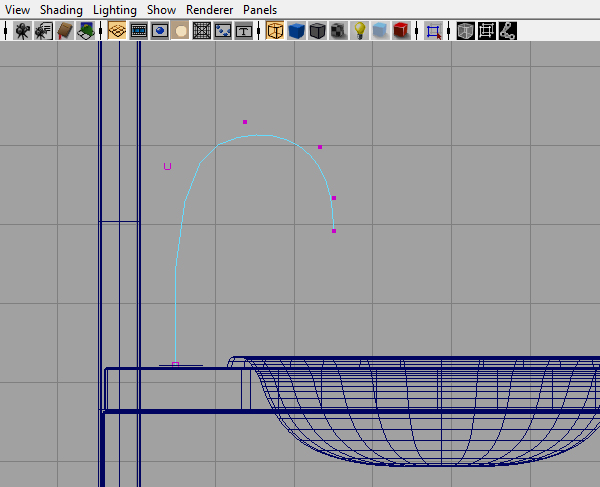

Create a curve just like the one in the image below.

Step 129

Select the circle and then the curve. Note: The order of selection is very important.

Step 130

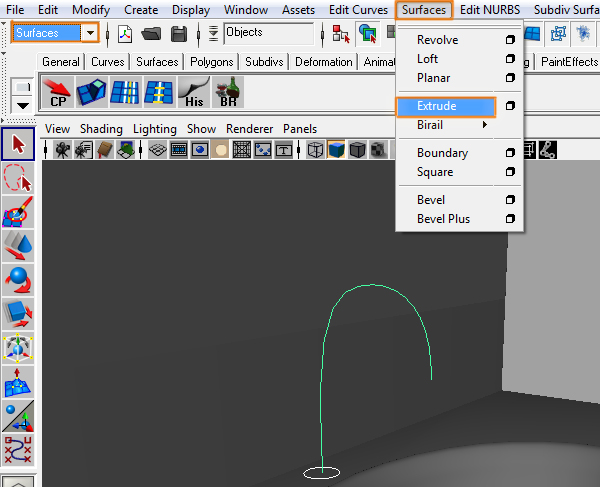

With the selection still active, go to “Surfaces > Extrude”, under the “Surfaces” menu.

Step 131

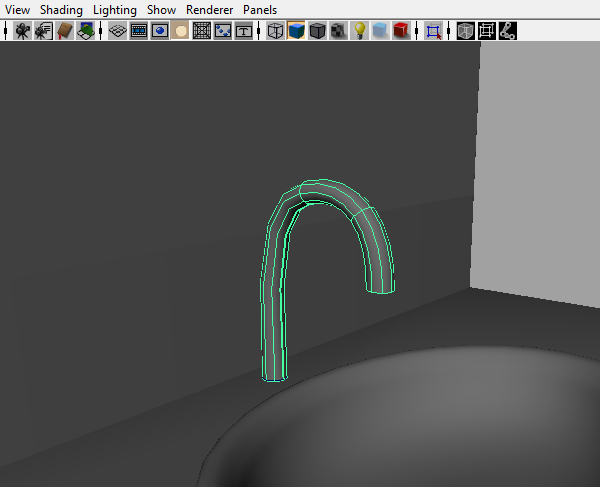

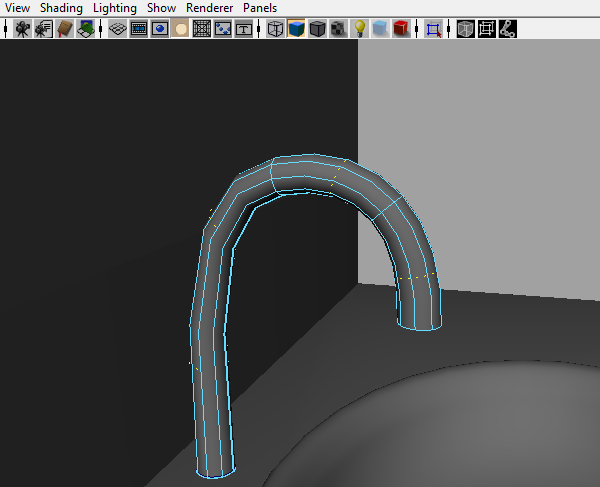

Now you should have a NURBS object that looks low res.

Step 132

To smooth the object, insert a few isoparms along the object.

Step 133

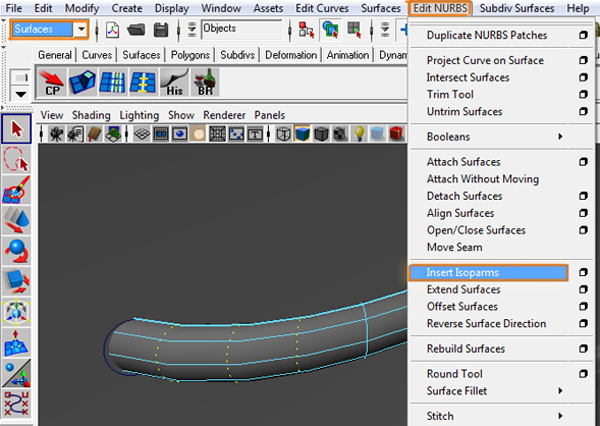

Under the “Surfaces” menu, go to “Edit NURBS > Insert Isoparms”.

Step 134

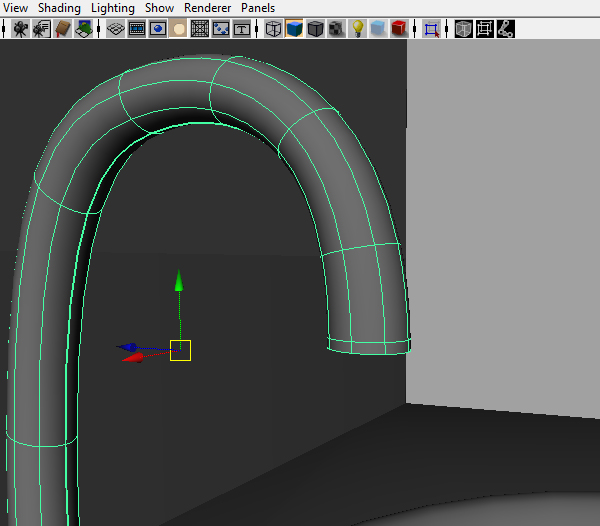

With these extra isoparms the object should look smooth.

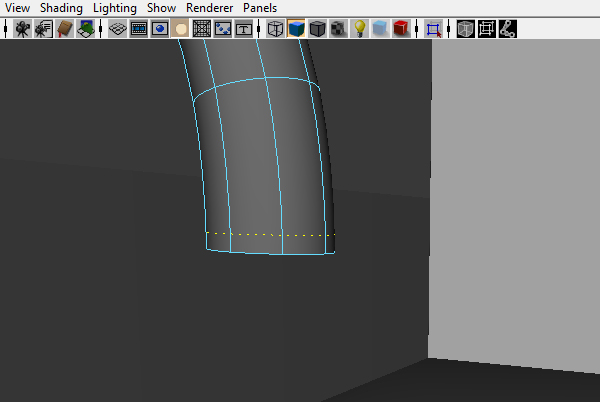

Step 135

Move to the end of the object and add 1 isoparm almost at the edge.

Step 136

Under the “Surfaces” menu, go to “Edit NURBS > Insert Isoparms”.

Step 137

Look at the image below to see if you inserted the isoparm in the correct position.

Step 138

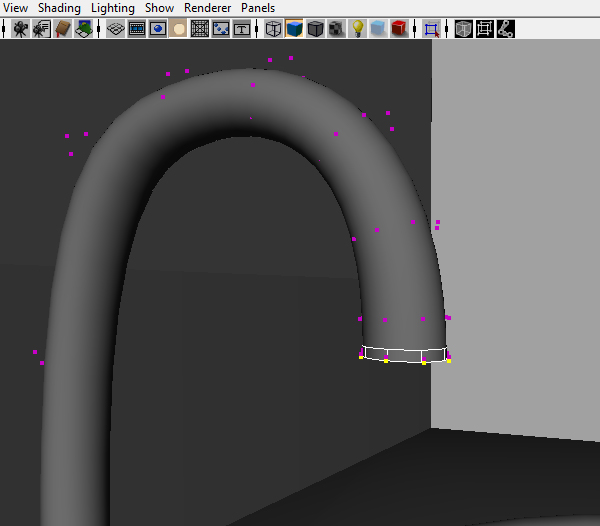

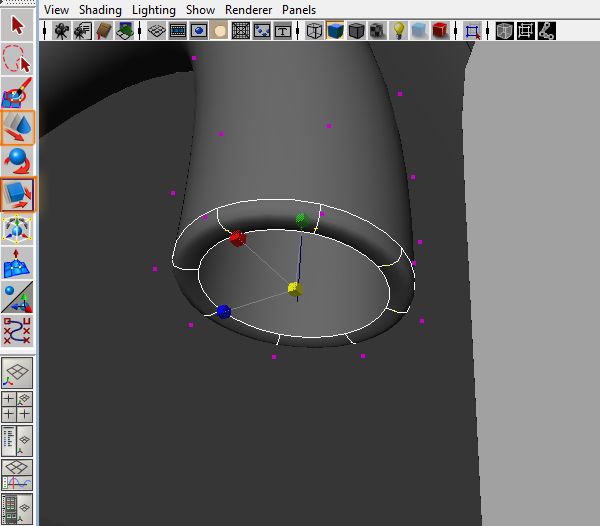

Select the vertexes at the end of the object.

Step 139

Scale them to the inside of the object to add thickness.

Step 140

This is what it should look like.

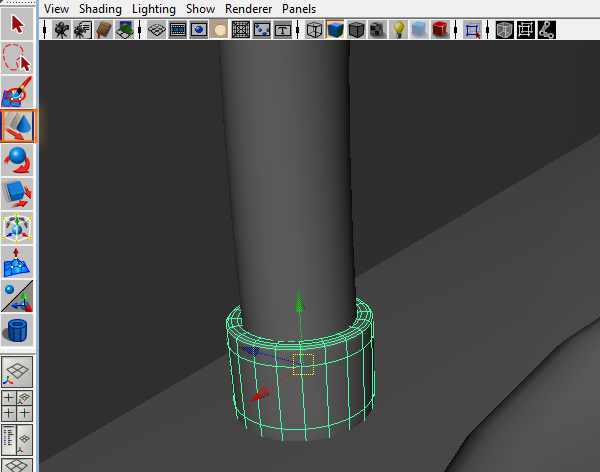

Step 141

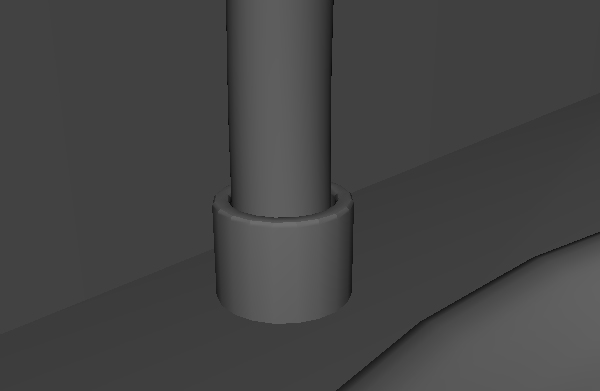

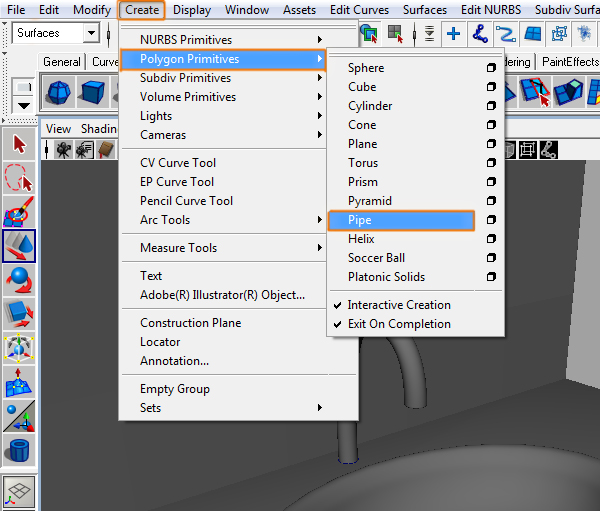

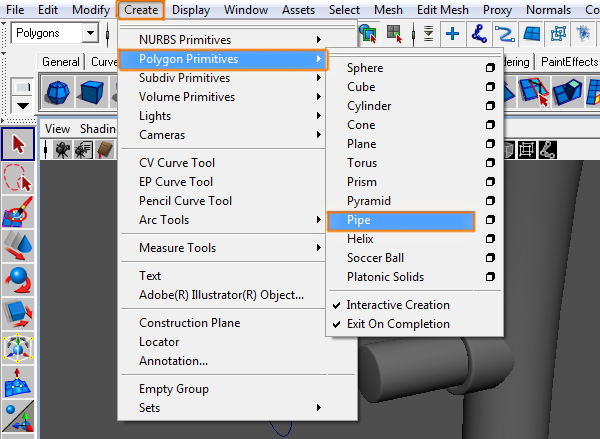

Go to “Create > Polygons Primitives > Pipe”.

Step 142

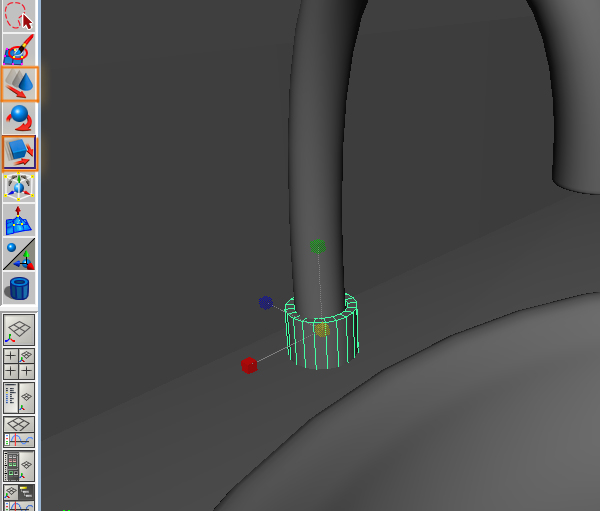

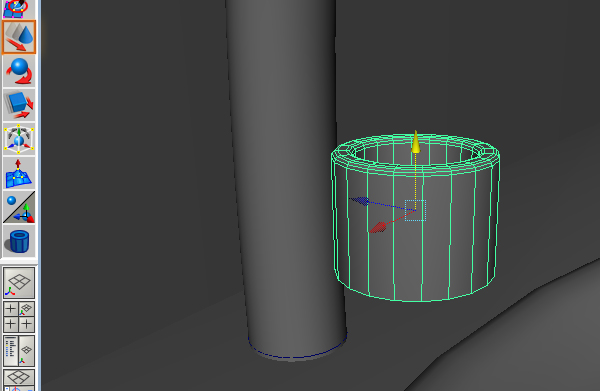

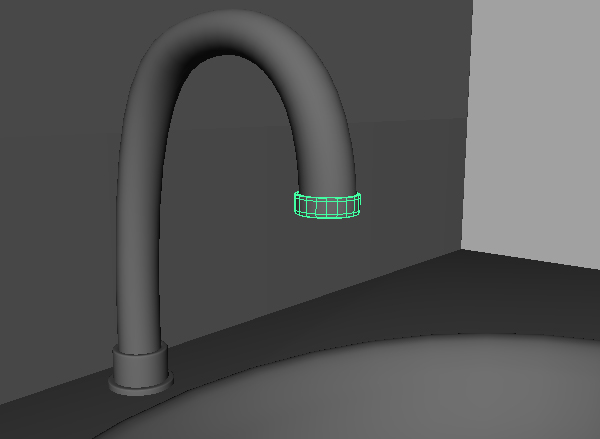

Create a pipe and position it.

Step 143

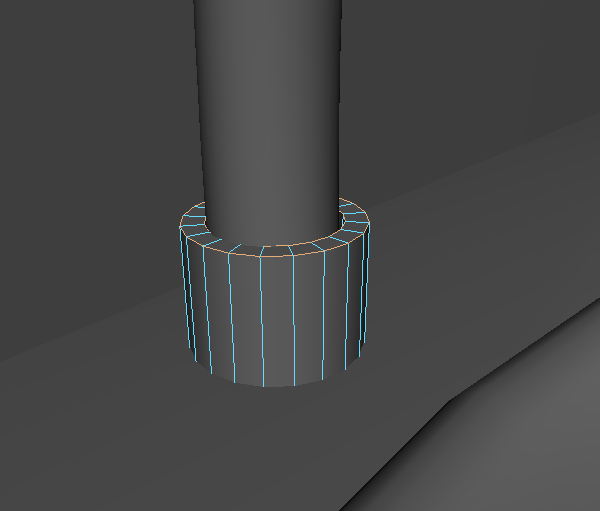

Select all of the edges that you want to smooth.

Step 144

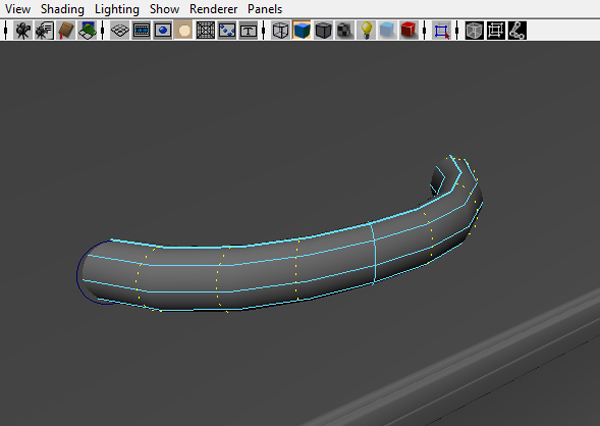

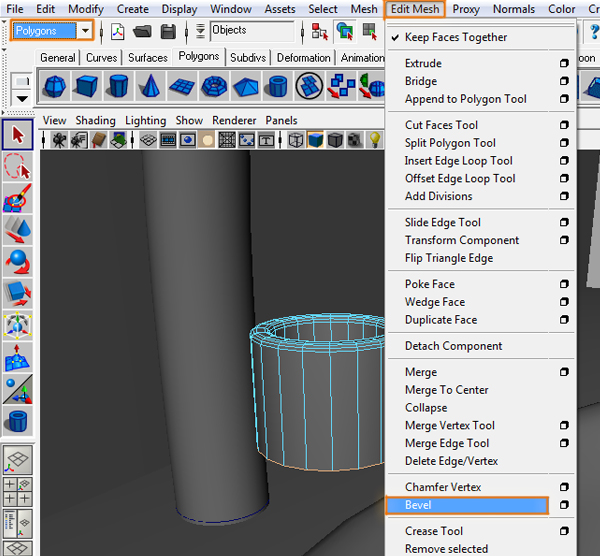

With those edges selected, go to “Edit Mesh > Bevel”, under the “Polygons” menu.

Step 145

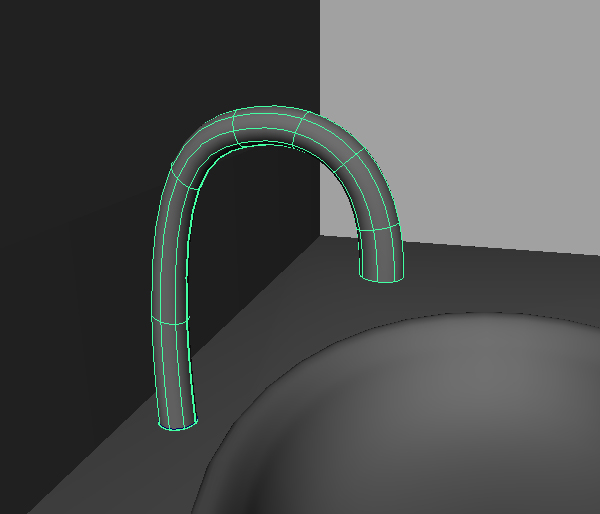

The object looks really bad now.

Step 146

Move the object so you can see it completely.

Step 147

Select all of the edges from the bottom of the object.

Step 148

With those edges selected, go to “Edit Mesh > Bevel”, under the “Polygons” menu.

Step 149

Press number 3 on the keyboard and you should see a nice and smooth object.

Step 150

Move it back into place.

Step 151

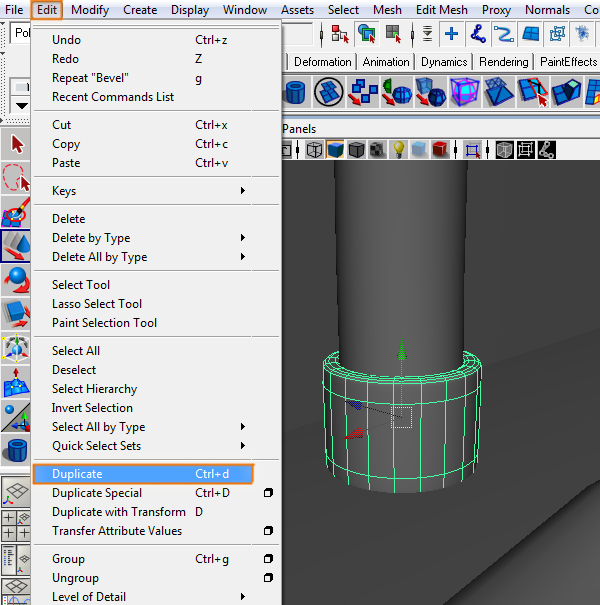

With the object selected, go to “Edit > Duplicate”.

Step 152

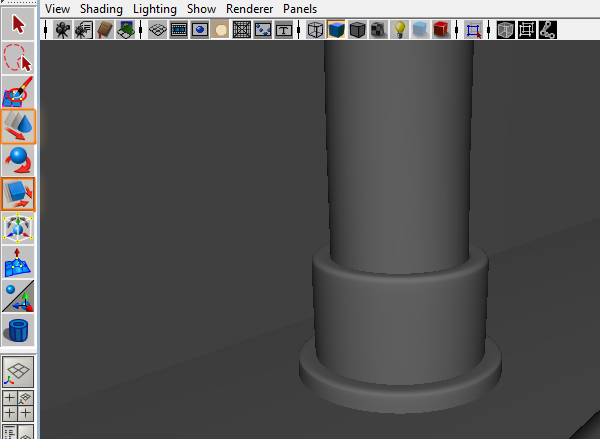

Move and scale the copy to create a nice shape below the original object.

Step 153

Duplicate it again, and position it at the end of the object.

Step 154

This is what you should have so far.

Step 155

Change to the side view.

Step 156

Go to “Create > NURBS Primitives > Circle”.

Step 157

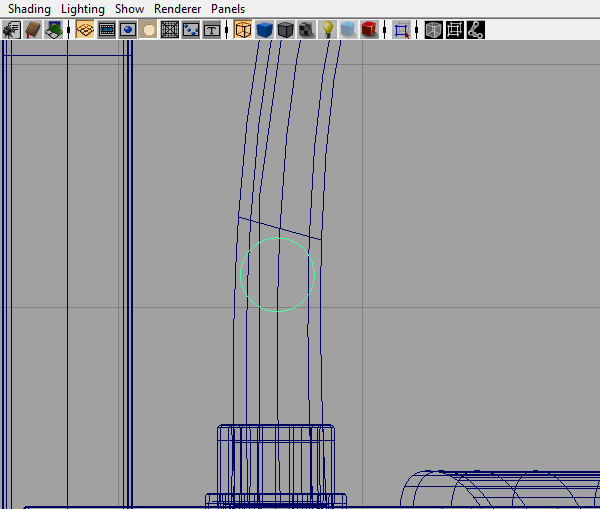

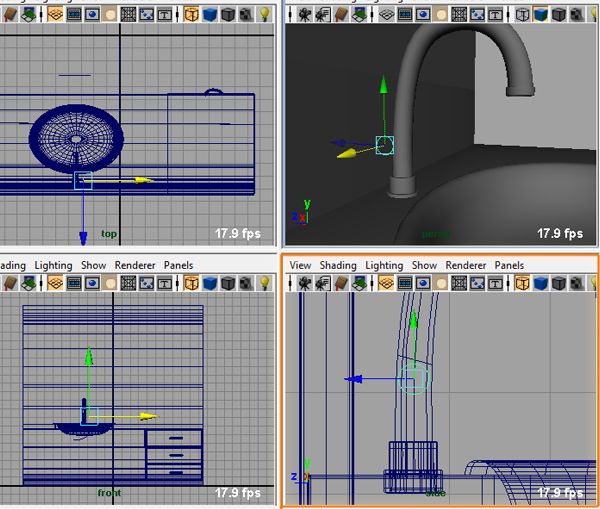

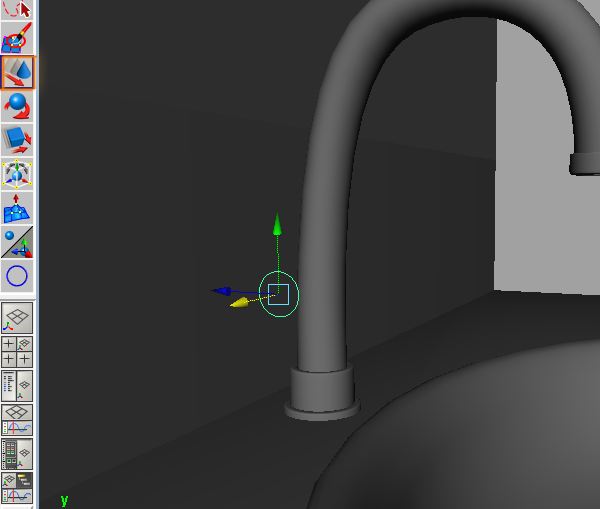

Position the circle at the side of the NURBS object.

Step 158

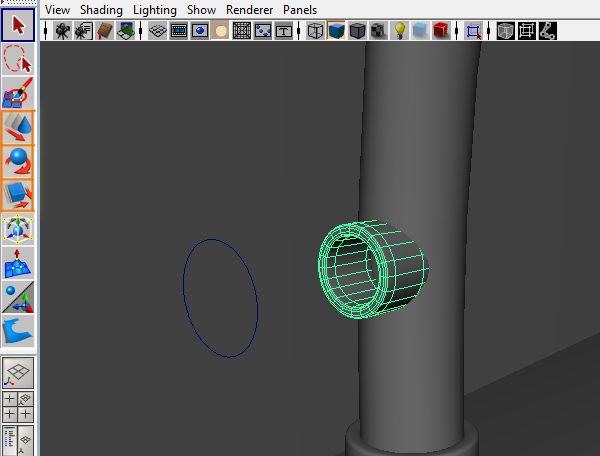

Separate the circle from the NURBS object.

Step 159

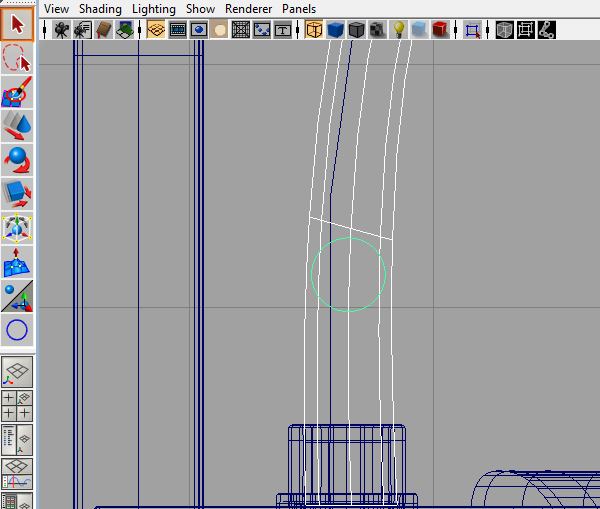

See the image below for reference.

Step 160

Select the NURBS object and then the circle (the order of selection is very important). Note: You need to be looking though the side view in order for the next steps to work.

Step 161

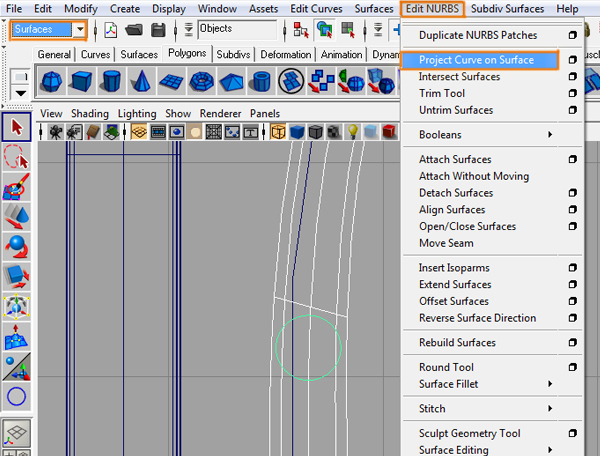

With the selection still active, go to “Edit NURBS > Project Curve on Surface”, under the “Surfaces” menu.

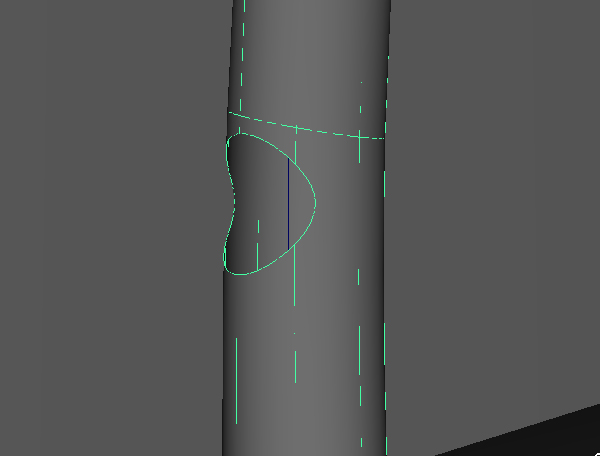

Step 162

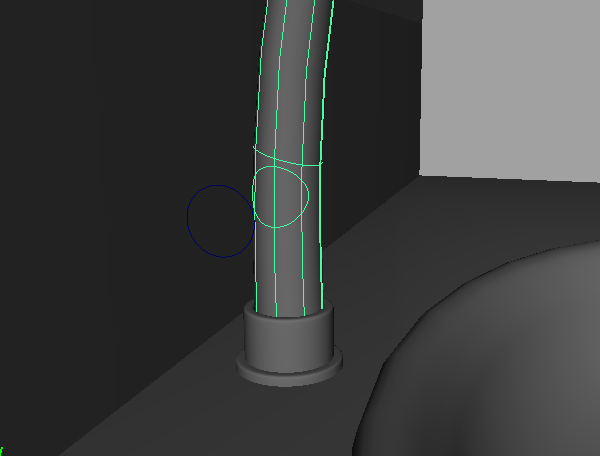

Now you should have a circle over the surface of the NURBS object.

Step 163

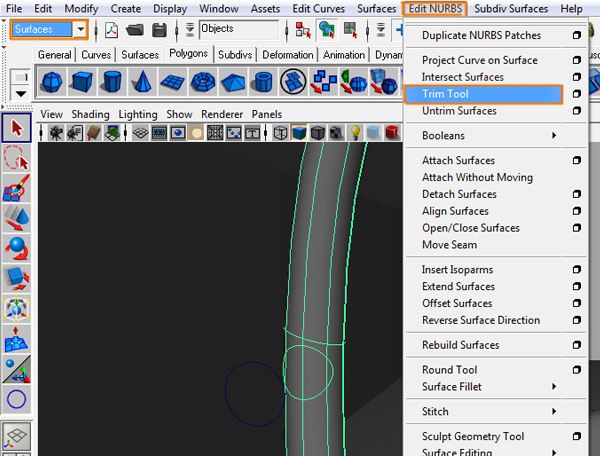

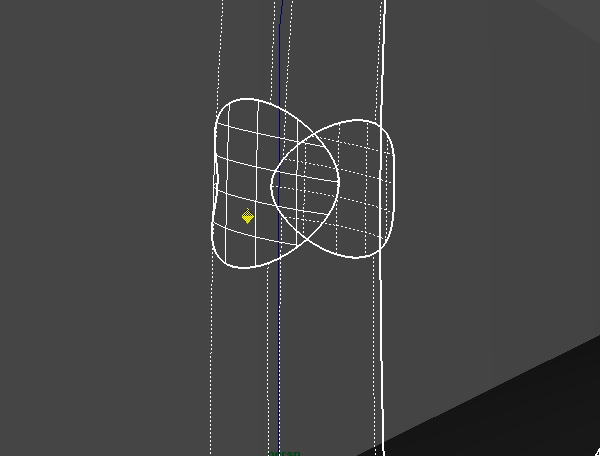

With the object selected, go to “Edit NURBS > Trim Tool”, under the “Surfaces” menu.

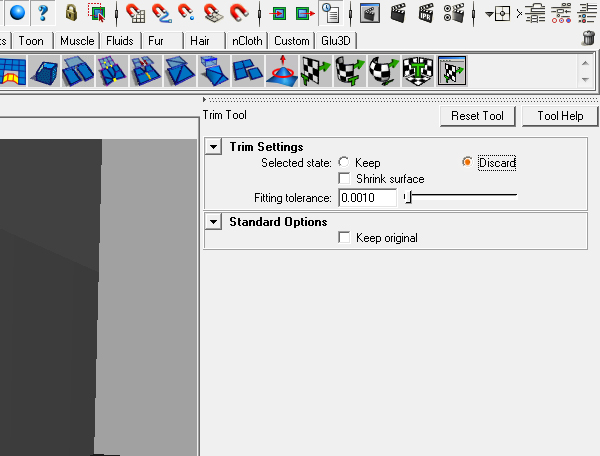

Step 164

With the tool active, go to its settings (on the right side of the screen), and change the “Selected State” to “Discard”.

Step 165

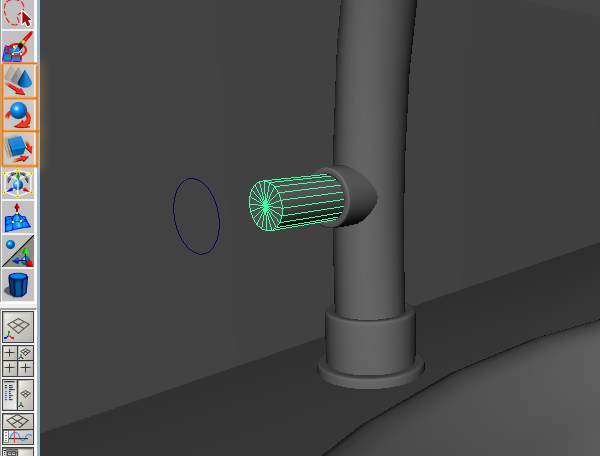

In the active view you will see some wireframes. Click on the wireframe that corresponds to the surface of the circle. A yellow diamond should appear on top of the surface you selected. Press enter on the keyboard.

Step 166

The NURBS object should now have a hole.

Step 167

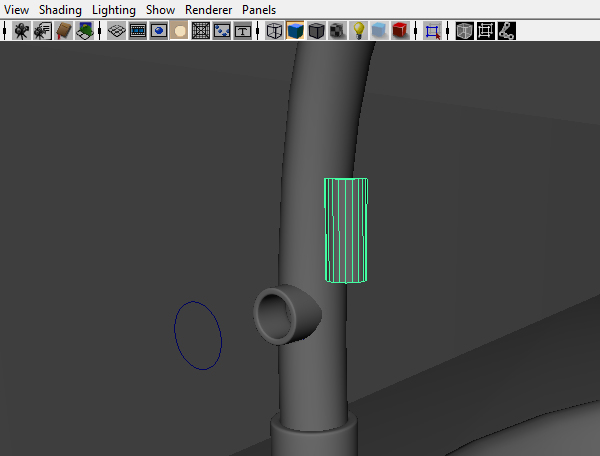

Select the polygonal object you created earlier.

Step 168

Duplicate it.

Step 169

Move, rotate, and scale the copy to fit inside the hole of the NURBS object.

Step 170

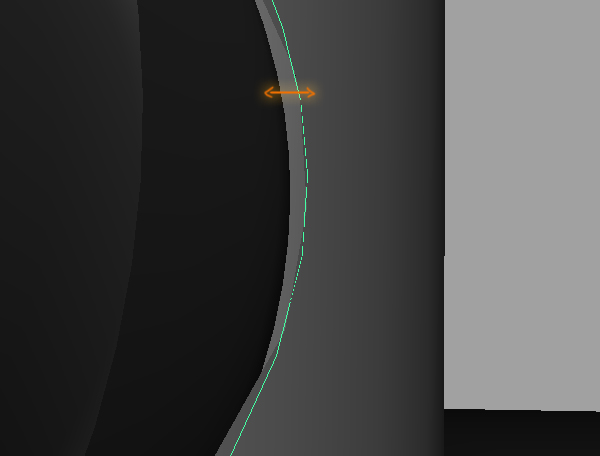

You should leave a small margin between the object and the NURBS object. This will make shadows possible.

Step 171

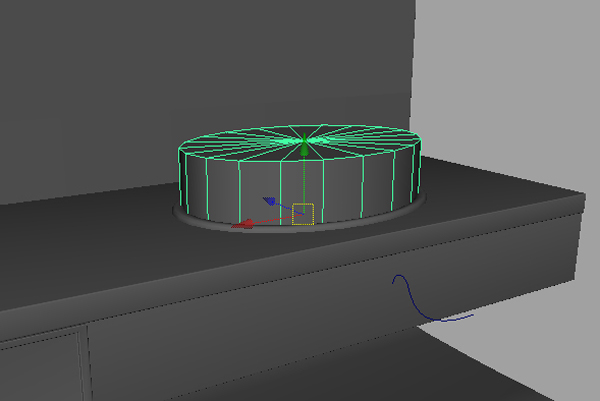

Go to “Create > Polygon Primitives > Cylinder”.

Step 172

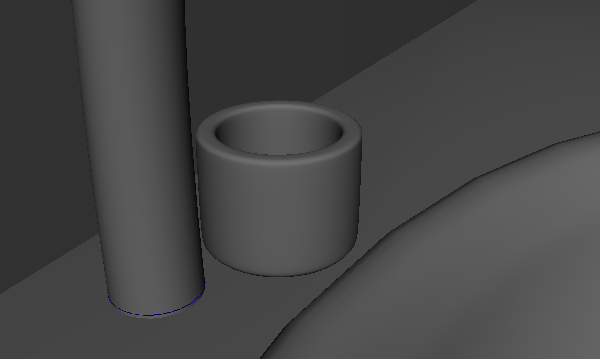

This is the approximate size the cylinder should be.

Step 173

Position, scale, and rotate the object to fit inside the other object you created earlier.

Step 174

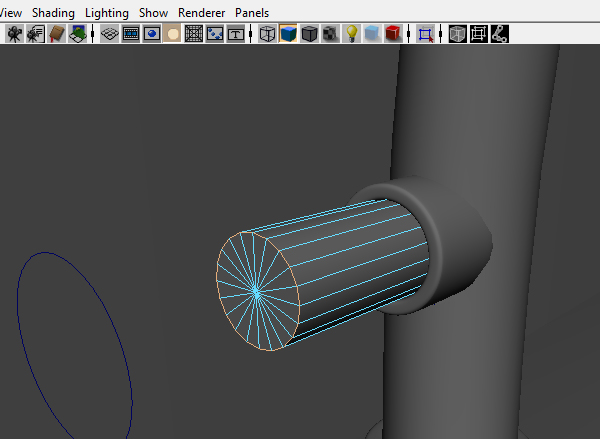

Select the edges at the end of the object.

Step 175

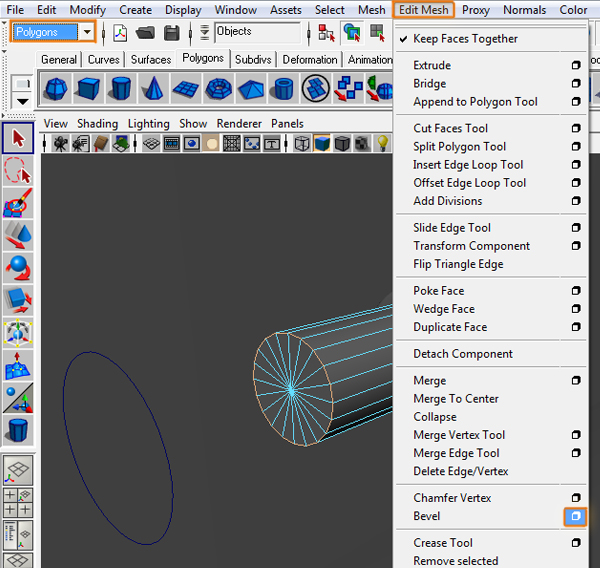

Under the “Polygons” menu, go to “Edit Mesh > Bevel (option box)”.

Step 176

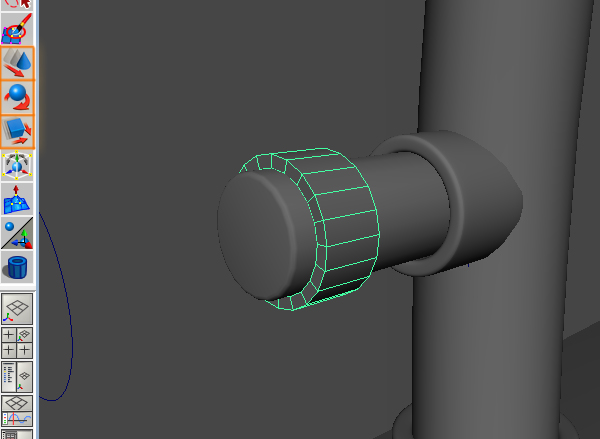

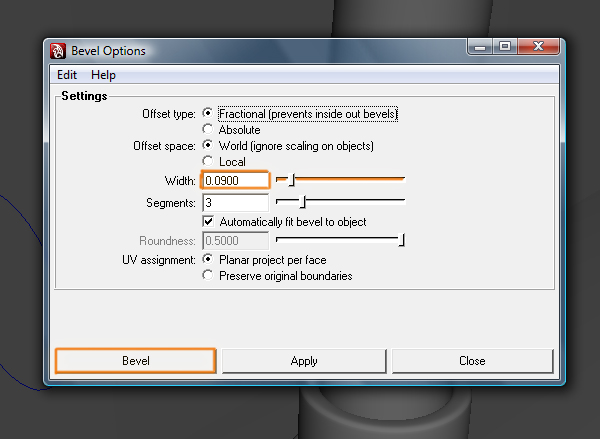

Inside the option box, change the “Width” value to 0.0900 (this value depends on the size of your scene), then click on “Bevel”.

Step 177

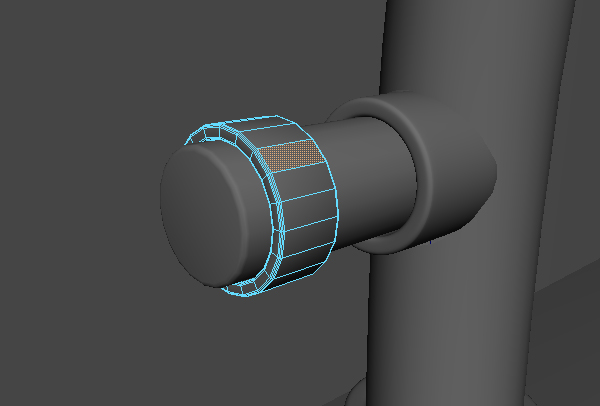

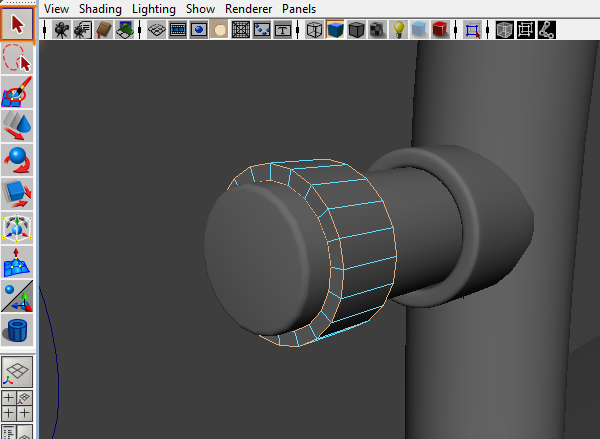

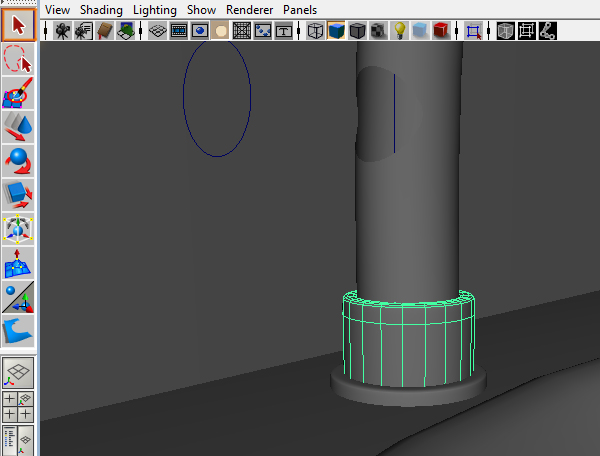

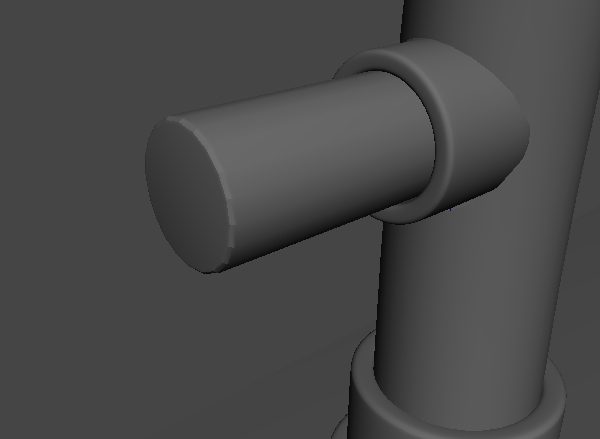

The object should have a bevel, but it will look worse than before.

Step 178

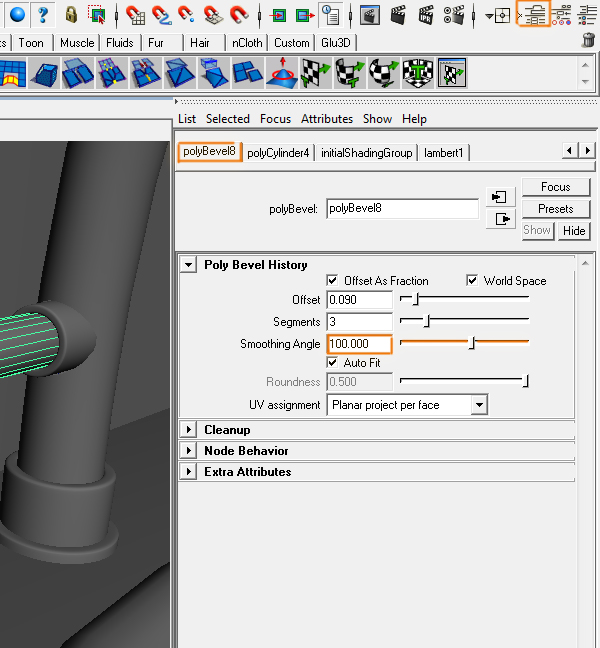

Select the object, and go to its “Attributes Editor”. Inside the Bevel tab, change the “Smoothing Angle” to 100. This step will make the object look smooth at the edges.

Step 179

Go to “Create > Polygon Primitives > Pipe”.

Step 180

Create a pipe, move, scale, and rotate it so that the object you created before fits inside it.

Step 181

Select all of the edges you want to smooth.

Step 182

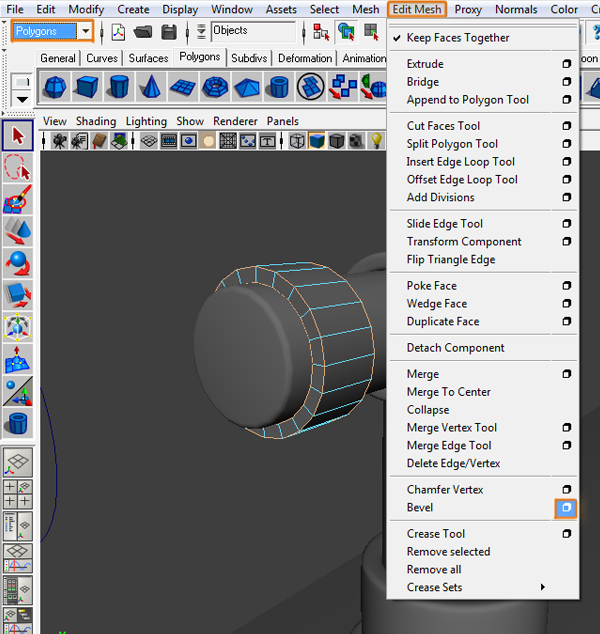

Under the “Polygons” menu, go to “Edit Mesh > Bevel (option box)”.

Step 183

Inside the option box, change the “Width” value to 0.390 (this value depends on the size of your scene) and click on “Bevel”.

Step 184

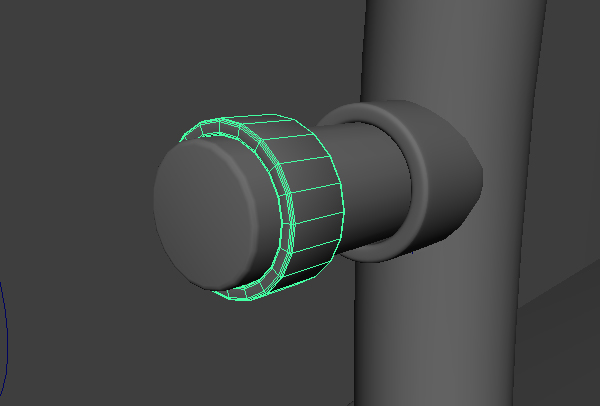

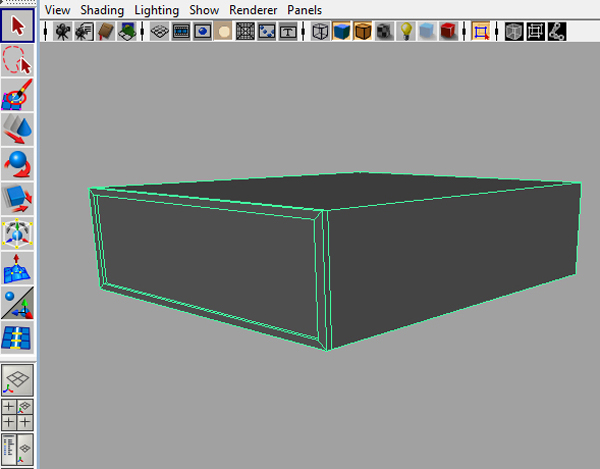

Make sure that your object is beveled.

Step 185

Select one face from the front of the object.

Step 186

Under the “Polygons” menu, go to “Edit Mesh > Extrude (option box)”.

Step 187

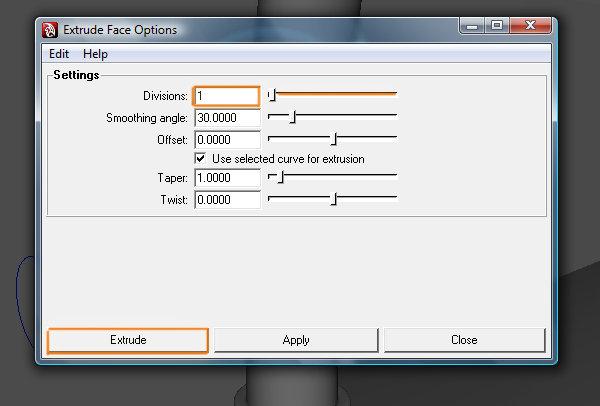

Inside the option box, make sure the “Divisions” are set to 1, and click on “Extrude”.

Step 188

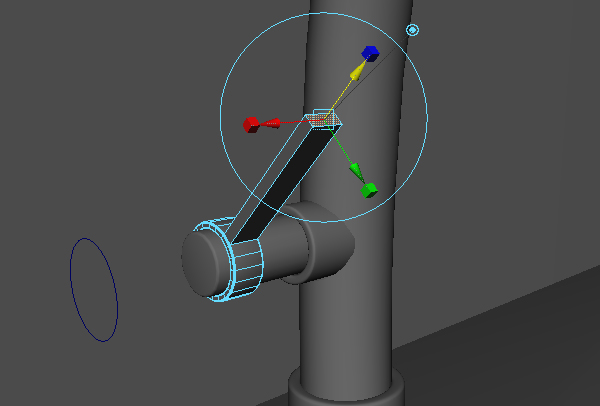

Extrude the object as shown.

Step 189

Without deselecting the face, go to “Edit Mesh > Extrude”.

Step 190

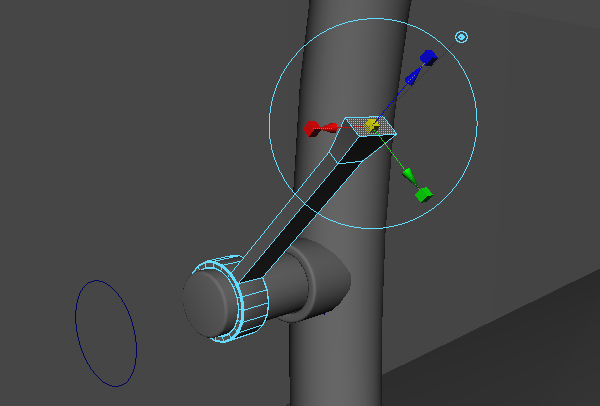

Extrude the face less than before and scale it.

Step 191

Without deselecting the face, go once more to “Edit Mesh > Extrude”.

Step 192

Extrude the face and leave it the same size.

Step 193

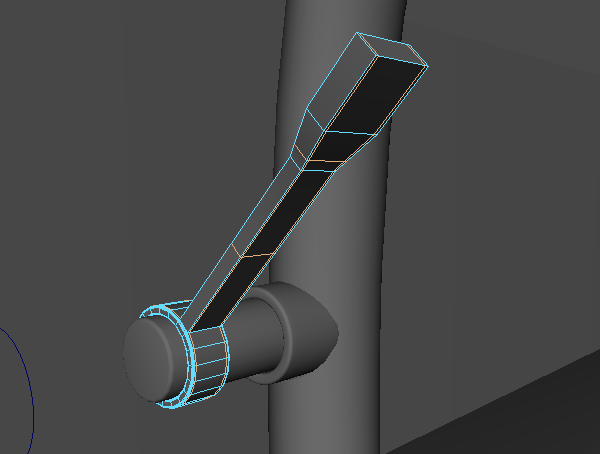

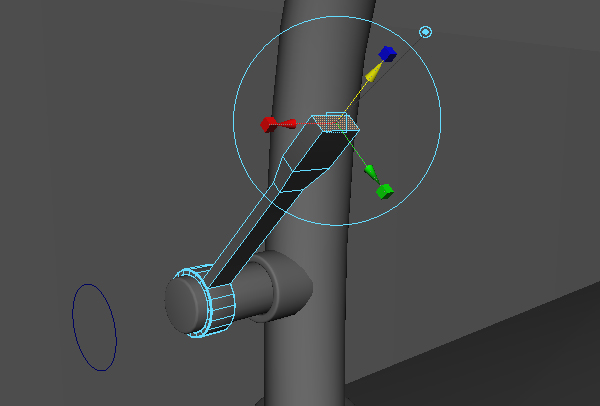

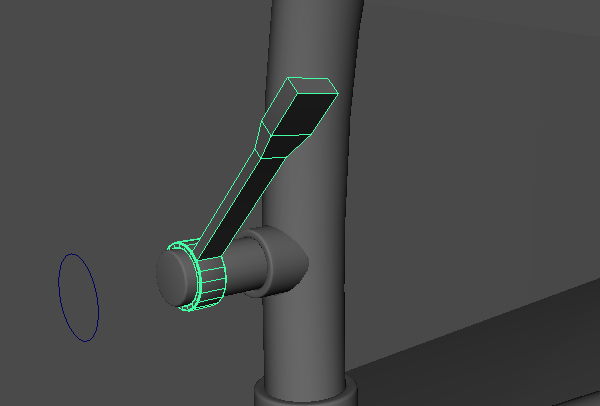

This is what you should have. Now you only need to smooth the shape.

Step 194

Under the “Polygons” menu, go to “Edit Mesh > Insert Edge Loop Tool”.

Step 195

Create some edge loops in locations where you want to maintain the shape of the object.

Step 196

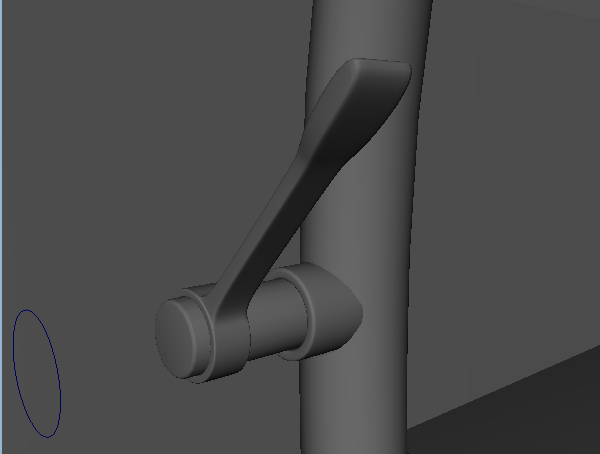

When you are finished, press number 3 on the keyboard, and watch how your object looks nice and smooth.

Step 197

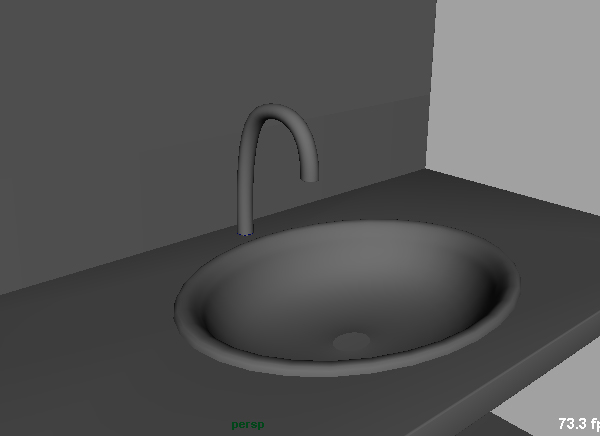

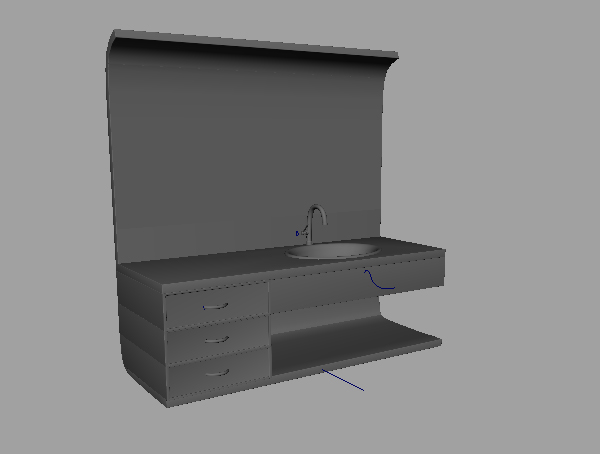

This is how your scene should look at this step of the tutorial.

Step 198

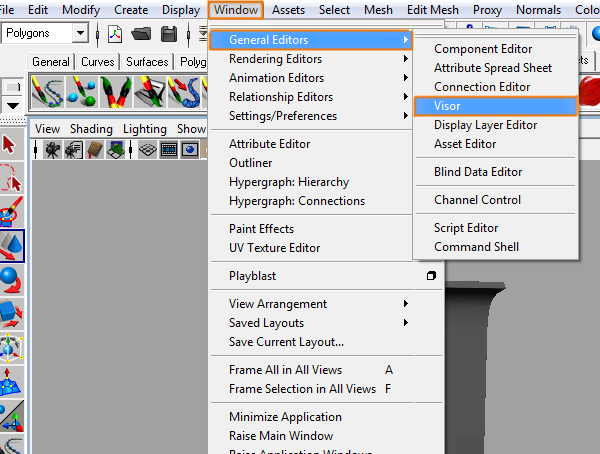

Go to “Window > General Editors > Visor”.

Step 199

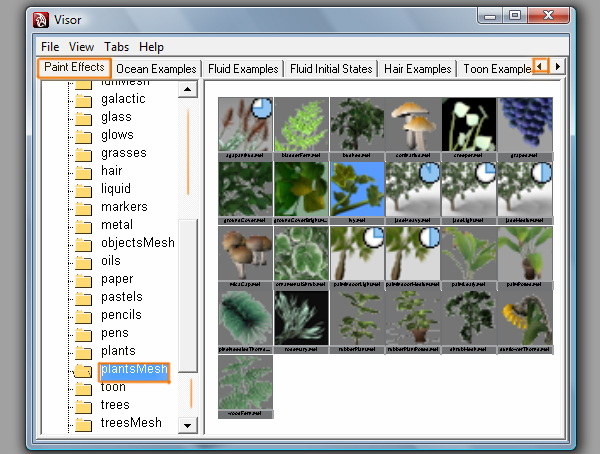

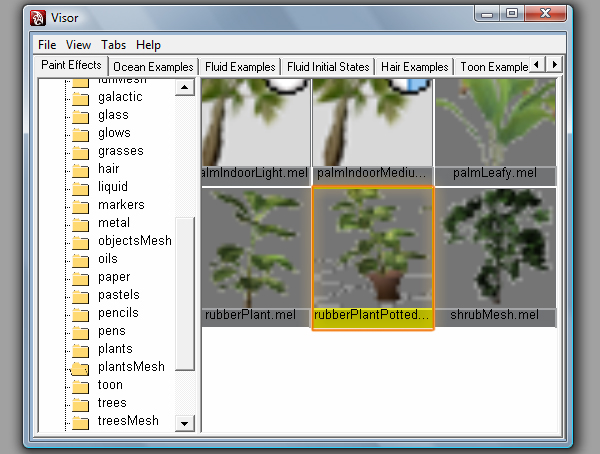

Inside the “Visor” window, go to the “Paint Effects” tab, and scroll down to the “plantsMesh” folder.

Step 200

Inside that folder, select the “rubberPlantPotted…”.

Step 201

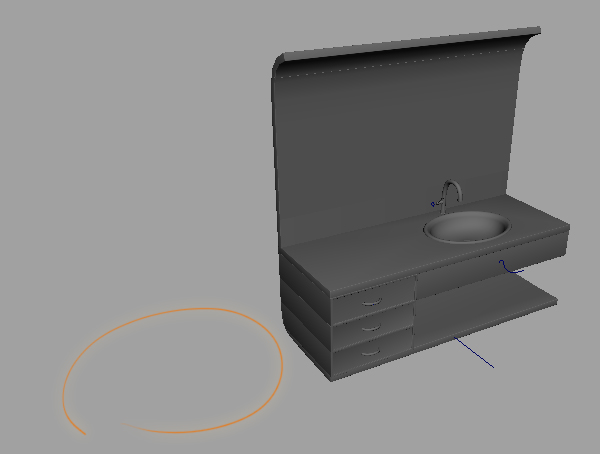

Zoom in close to the floor (the plant is going to be small).

Step 202

Click and drag until the plant is half completed.

Step 203

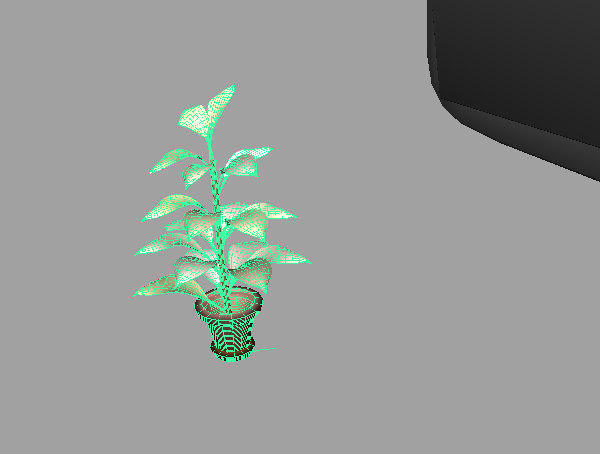

Release the click, and you will see the plant grow to its final shape.

Step 204

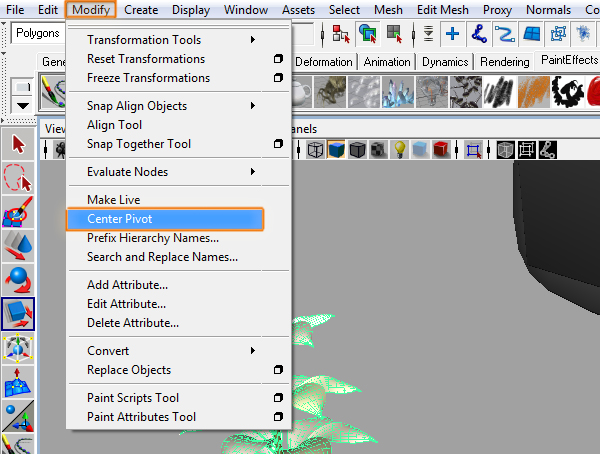

Select the plant and go to “Modify > Center Pivot”.

Step 205

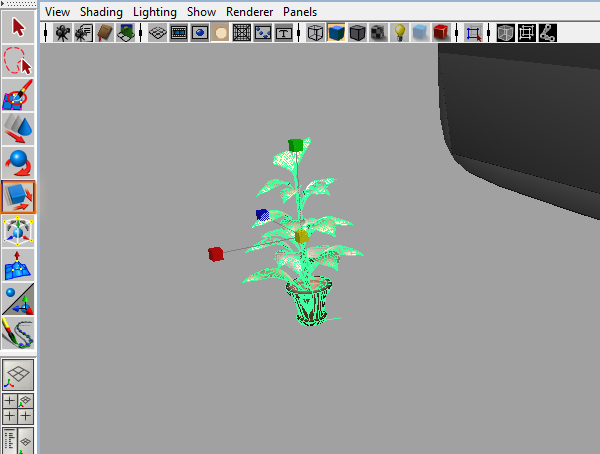

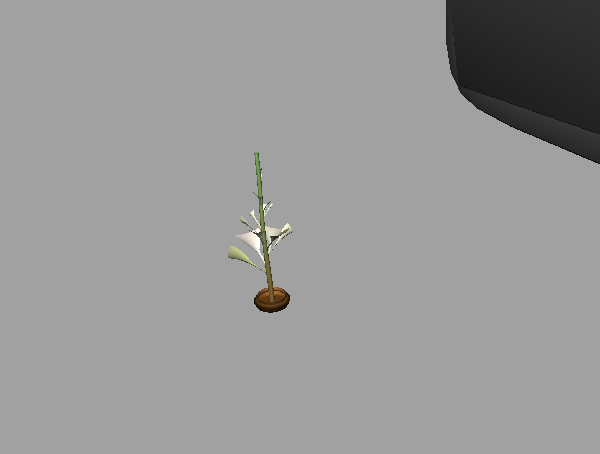

Now you will see the tools right in the middle of the plant.

Step 206

Move and scale the plant to put it in the right place.

Step 207

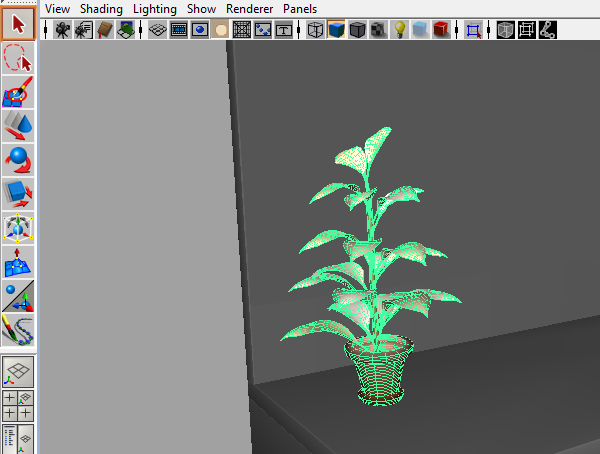

Select the plant.

Step 208

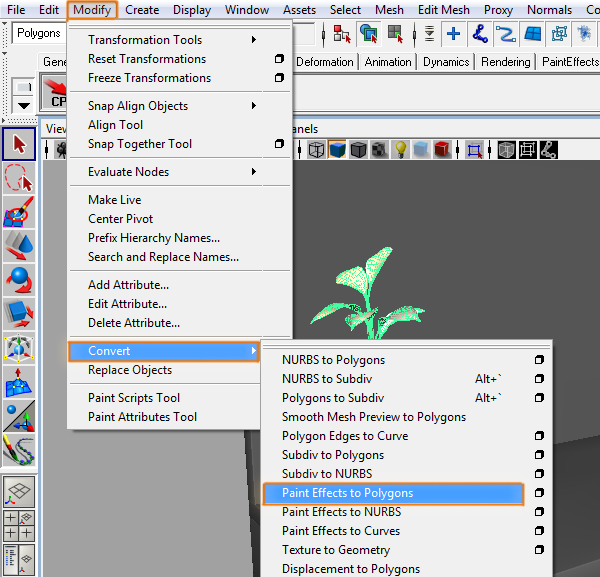

Go to “Modify > Convert > Paint Effects to Polygons”.

Step 209

Now your plant is a polygonal object.

Step 210

Select all objects of the plant, and press number 3 on the keyboard to smooth its geometry.

Step 211

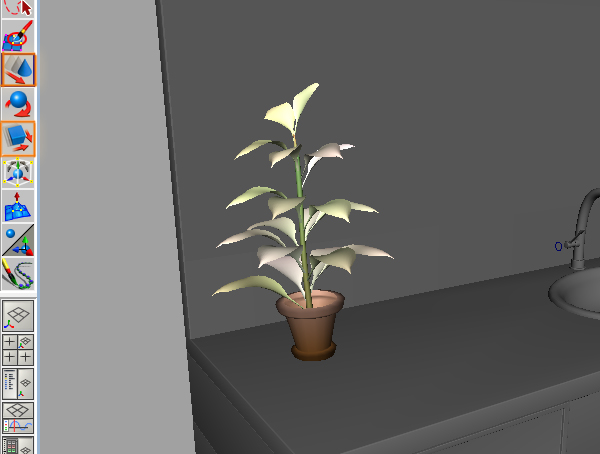

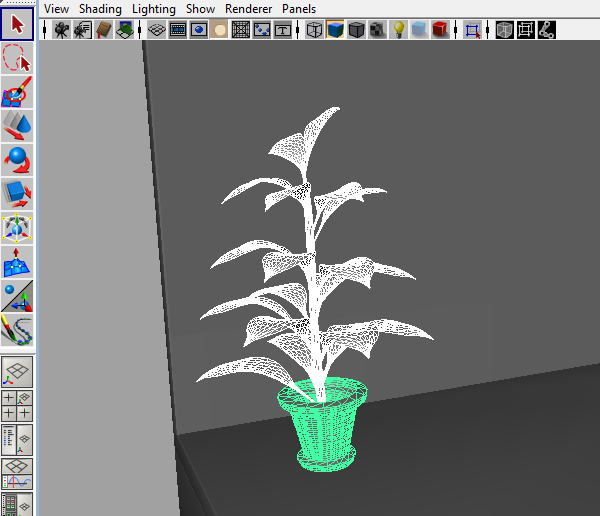

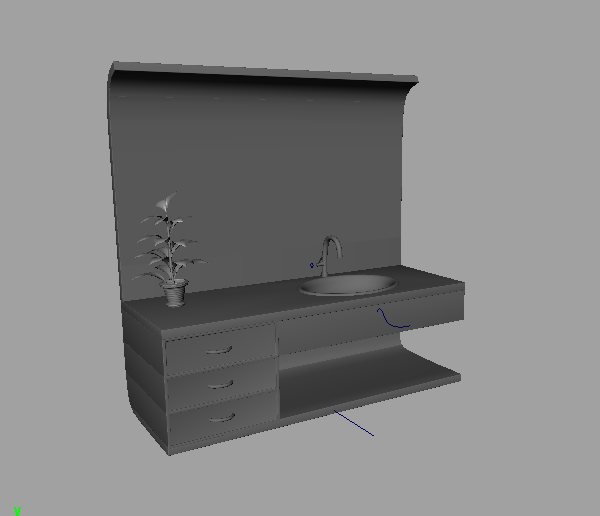

This is how it should look.

Step 212

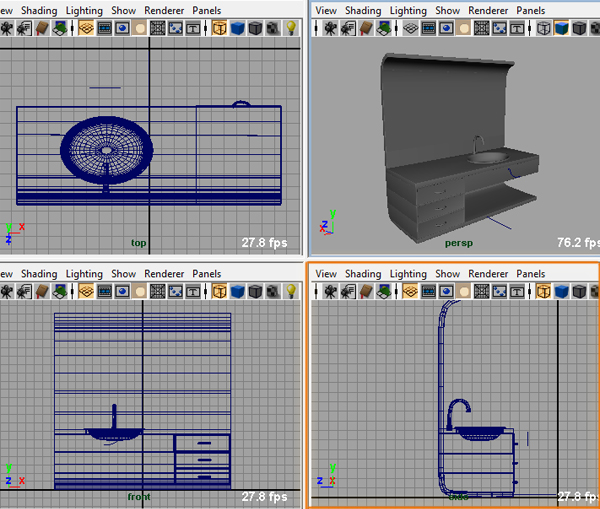

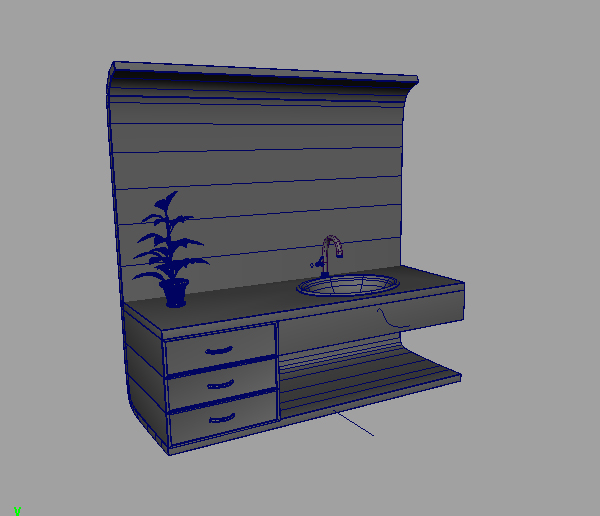

Wireframe of the scene.

Step 213

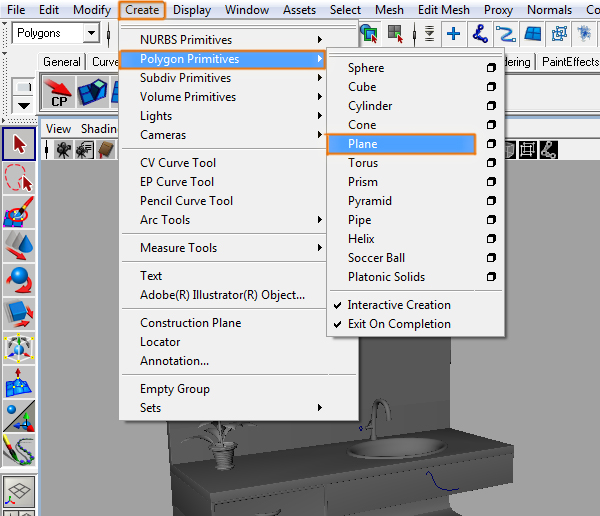

Now you need to create the wall and floor. Go to “Create > Polygon Primitives > Plane”.

Step 214

Create 2 planes and position them.

Step 215

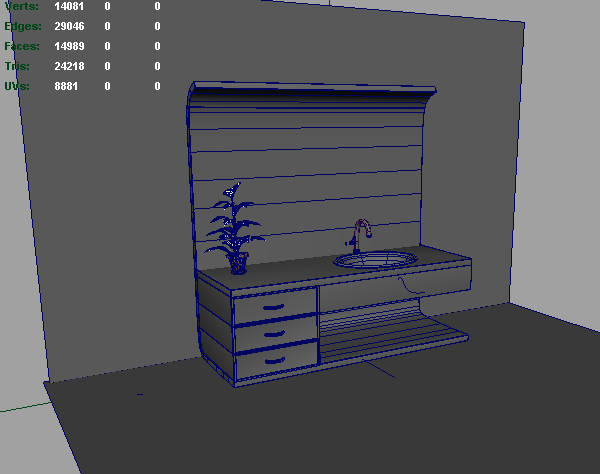

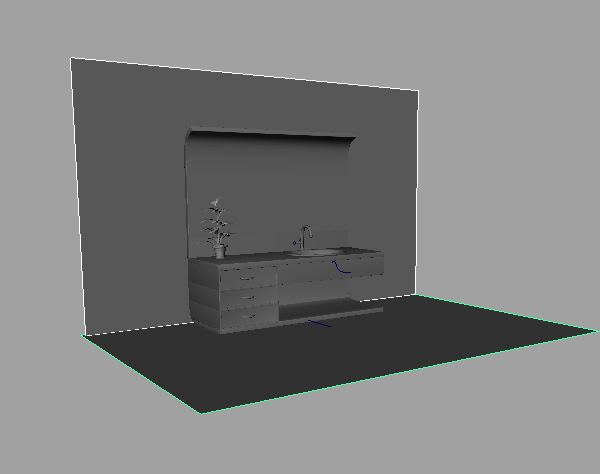

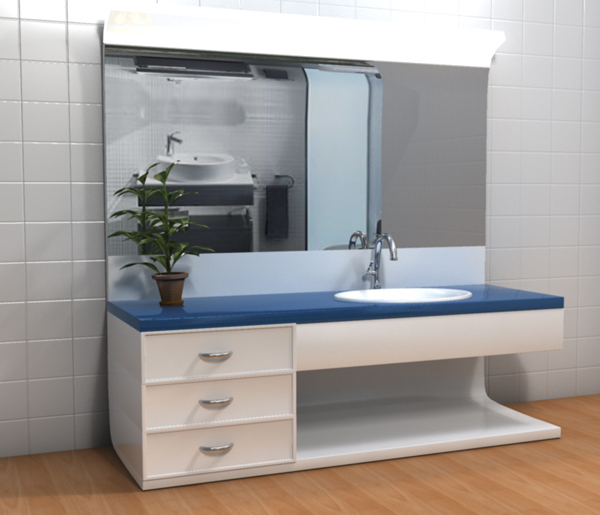

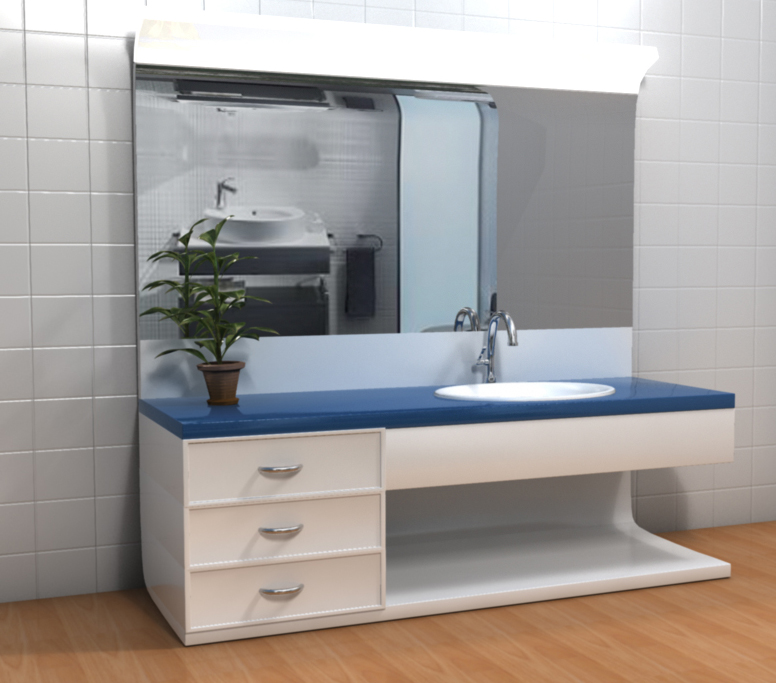

This is the end of the tutorial, 14,989 faces!

This tutorial is Day 1 in a series – Go to Day 2.

Don’t miss more CG tutorials and guides, published daily – subscribe to Cgtuts+ by RSS.
