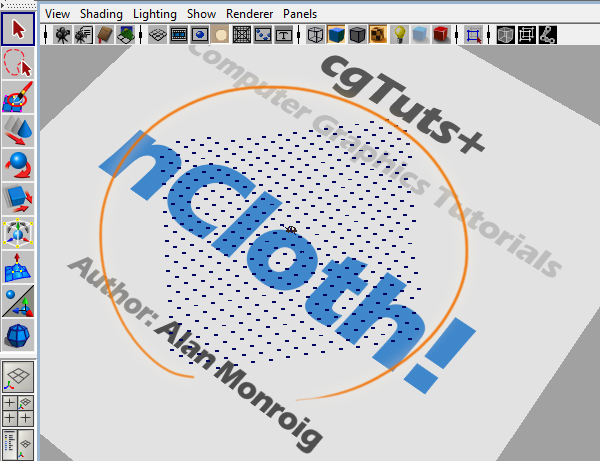

Final Effect Preview
Step 1

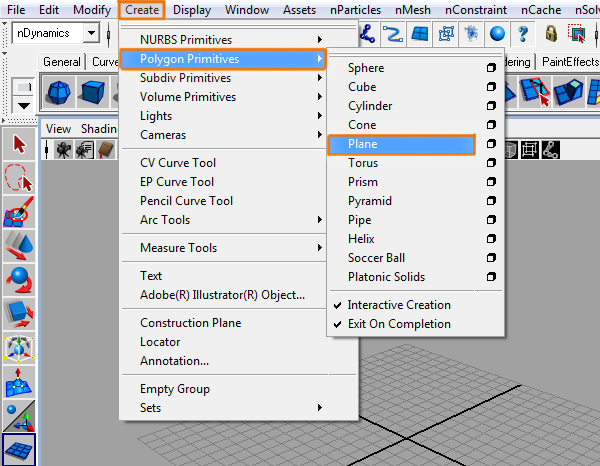

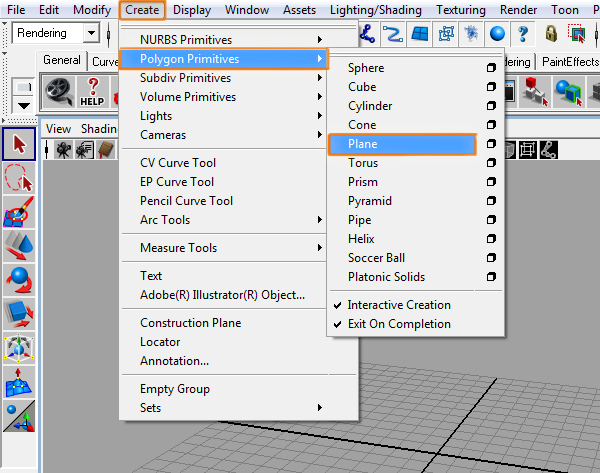

Go to “Create > Polygon Primitives > Plane”.

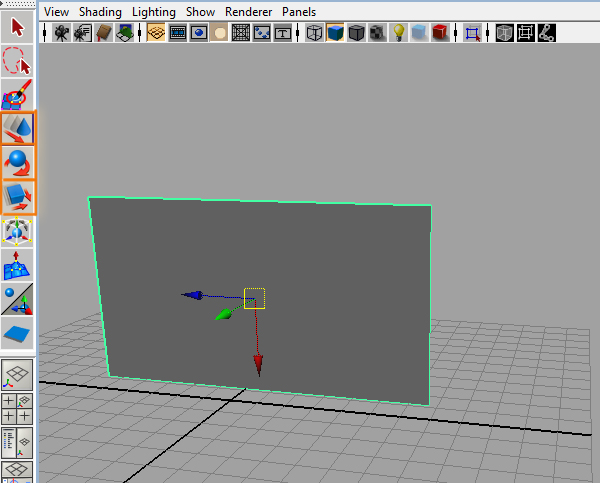

Step 2
Create a plane that matches the size of a flag and rotate it by ’90′ degrees.

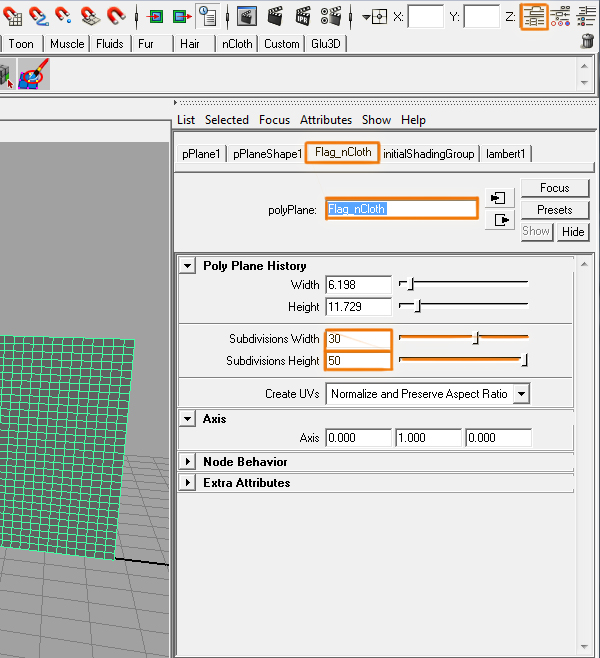

Step 3
Open the Attributes Editor for the plane, name it, and increase the “Subdivisions Width” to ’30′, and the “Subdivisions Height” to ’50′.
Step 4

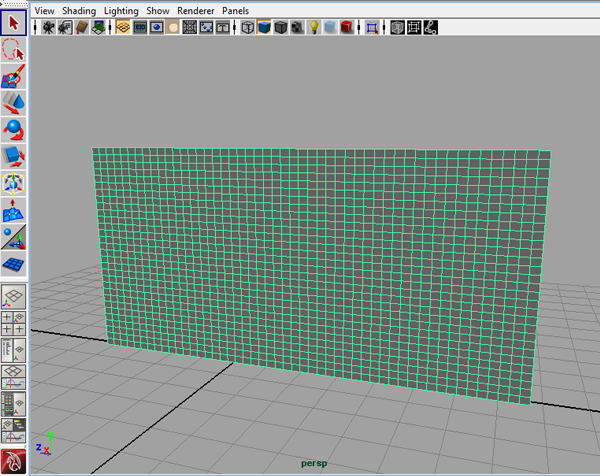

Your plane should now look like this:
Step 5

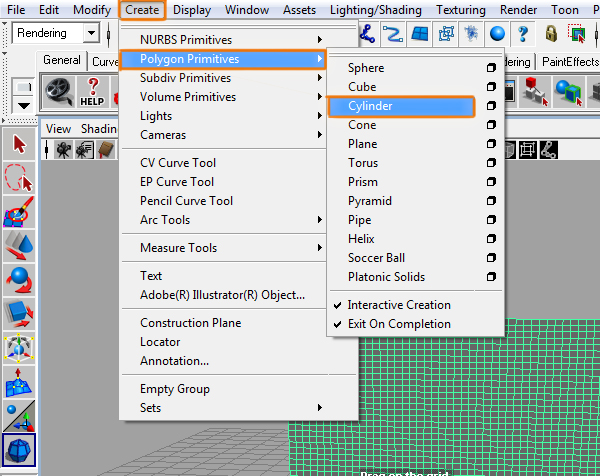

Go to “Create > Polygon Primitives > Cylinder”

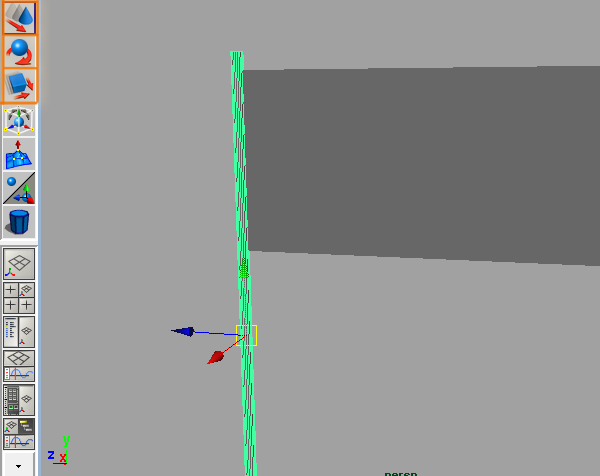

Step 6
Position the cylinder, and scale it to match the size of a flag pole.
Step 7

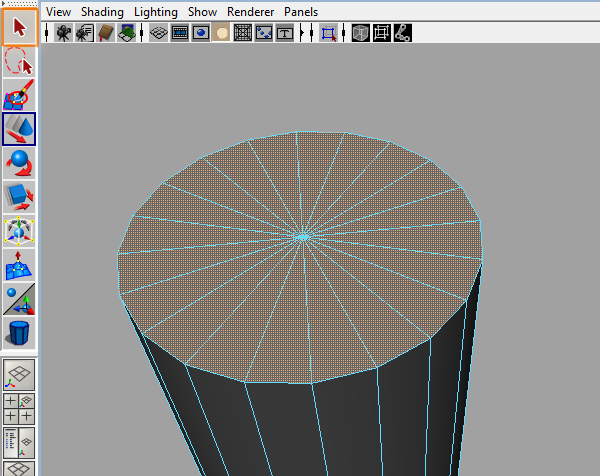

Select all the top faces of the pole.
Step 8

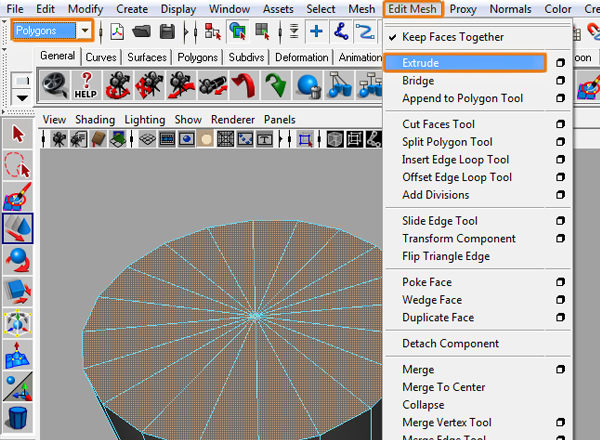

With the faces still selected, got to “Polygons > Edit Mesh > Extrude”.

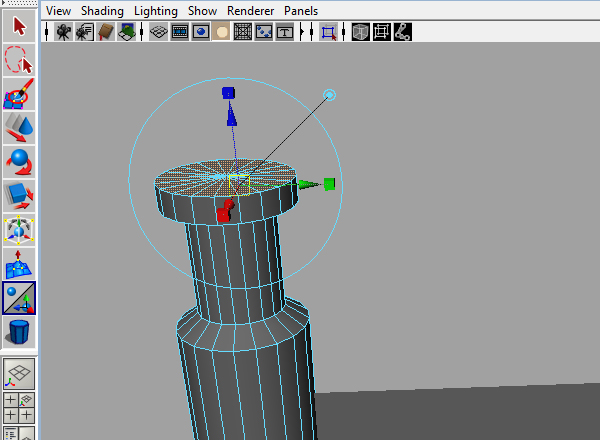

Step 9
Extrude those faces until you get a nice pole shape.
Step 10

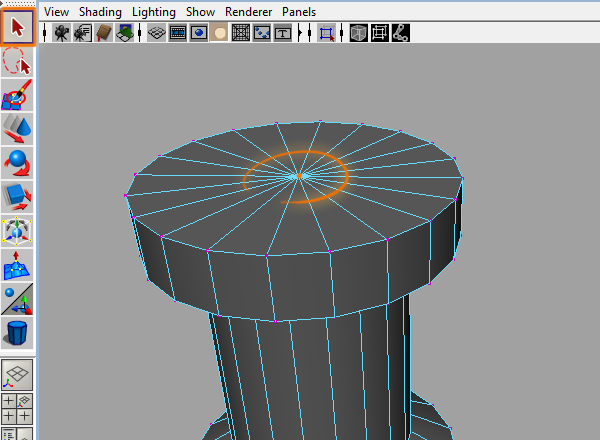

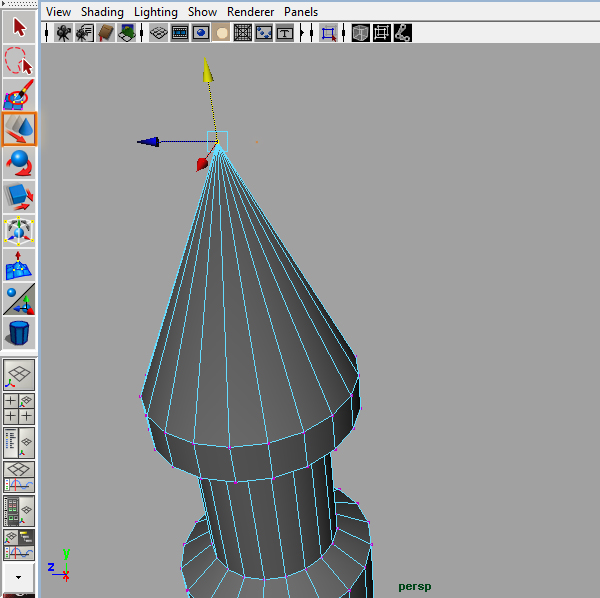

Select the top vertex of the pole.

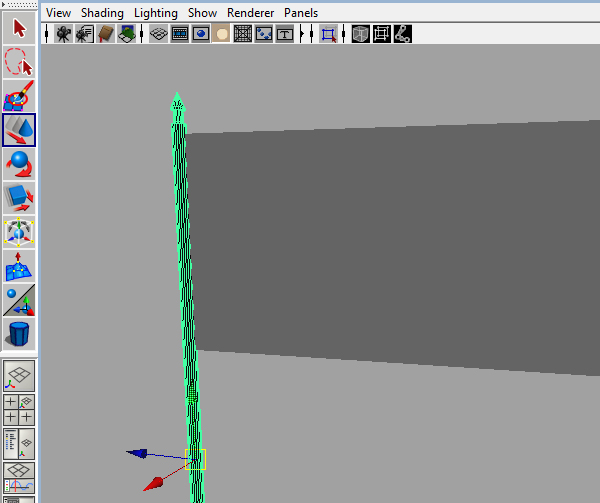

Step 11
Use the move tool to position the vertex.
Step 12

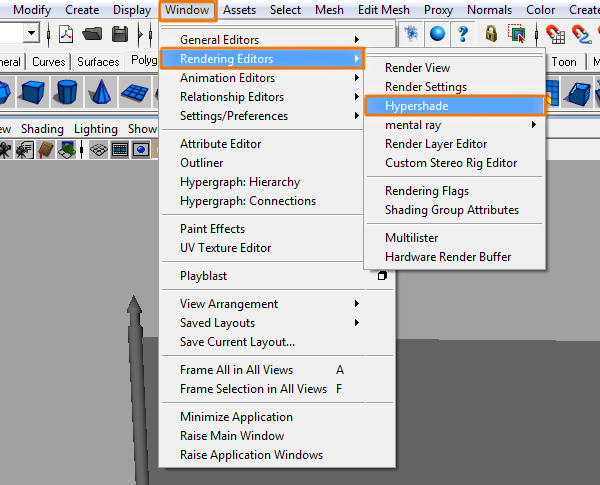

Go to “Window > Rendering Editors > Hypershade”.
Step 13

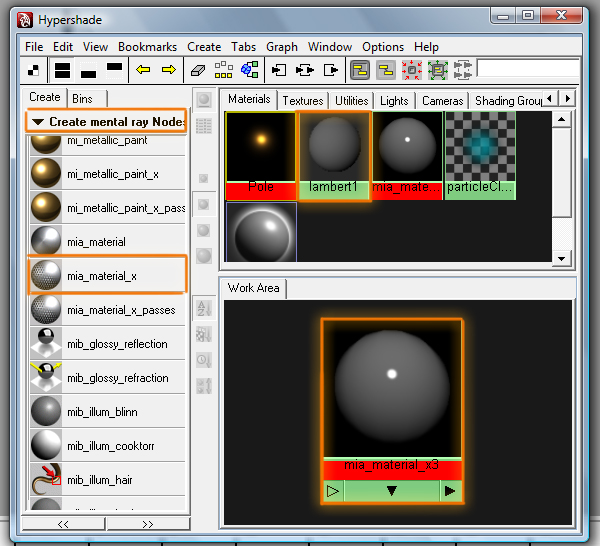

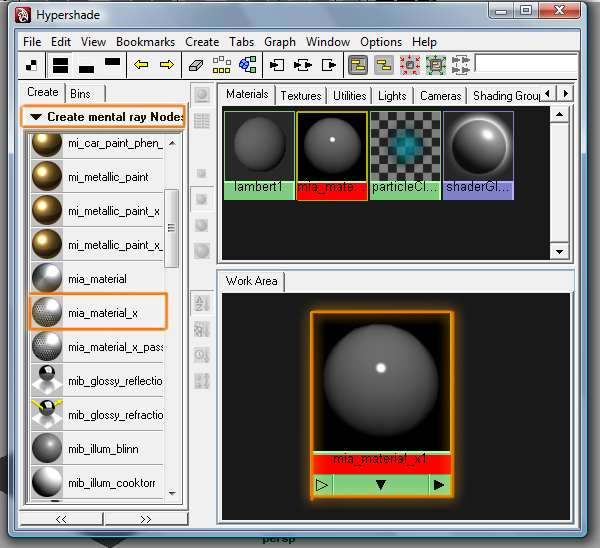

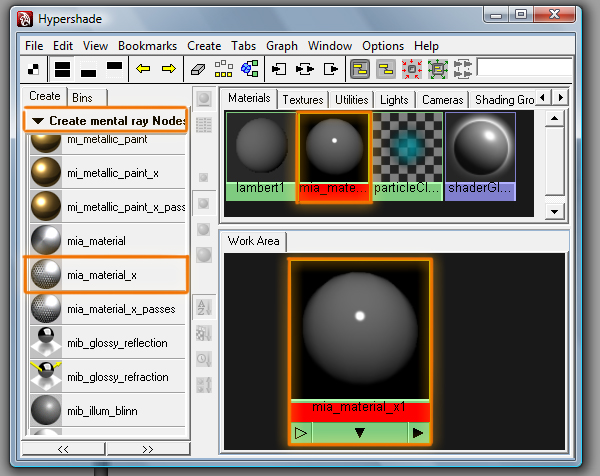

With “Create mental ray Nodes” active, create a new “mia_material_x”.
Step 14

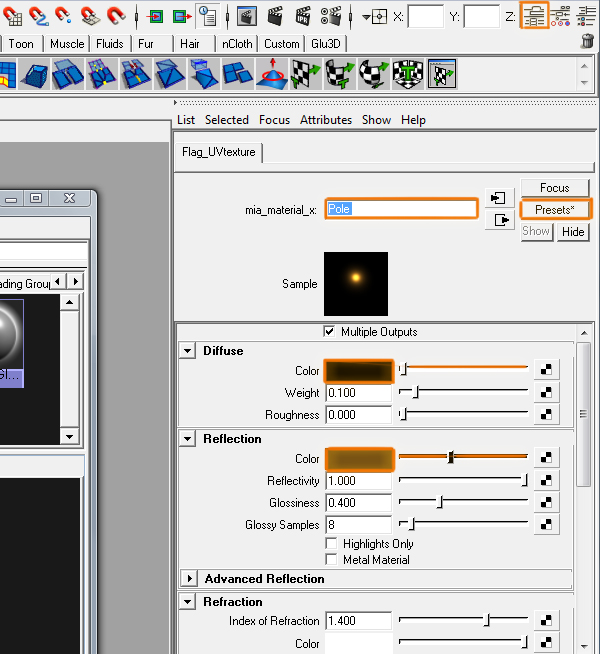

Open the Attributes Editor of the material you just created, name it, select the preset called “Copper”, and adjust the “Diffuse” and “Reflection” colors accordingly.
Step 15
Apply the material to the pole.
Step 16

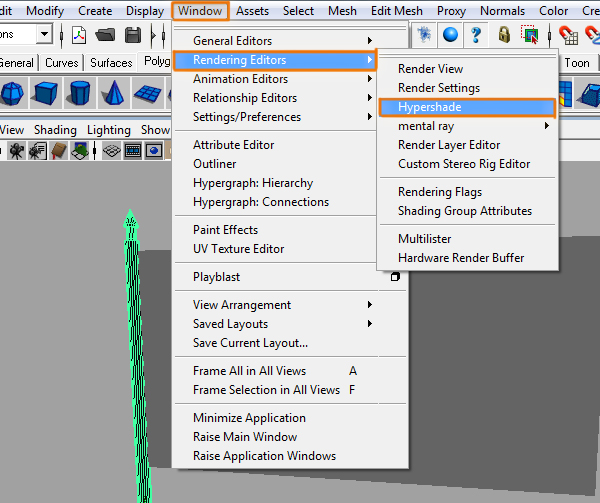

Go to “Window > Rendering Editors > Hypershade” again.
Step 17
With “Create mental ray Nodes active”, create a new “mia_material_x”.
Step 18
Go to the Attributes Editor of the material, name it, and decrease the “Reflectivity” value to ’0′.
Step 19

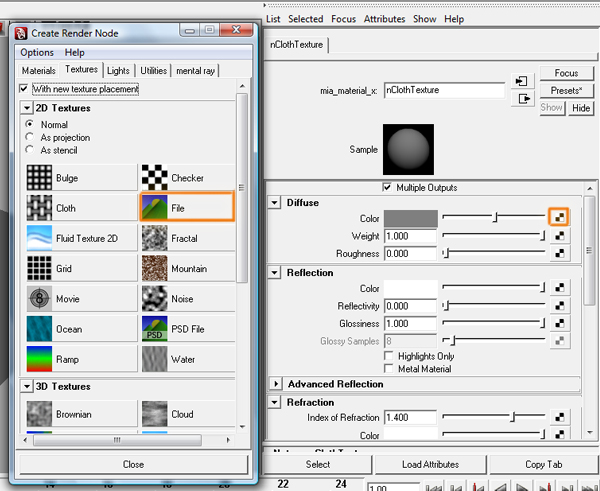

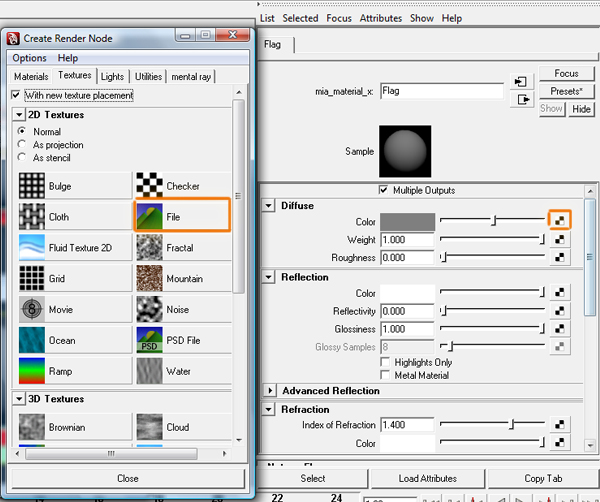

Click on the checkerboard button, to the right of the “Diffuse” color value, to open the “File” browser window.
Step 20
The Attributes Editor should now change. Select the image you want to use to texture the flag.

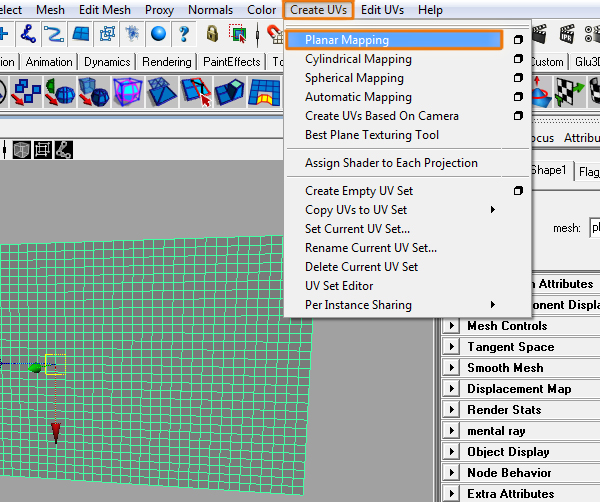

Step 21
Apply the material to the flag, and with the flag selected go to “Create UV´s > Planar Mapping”.

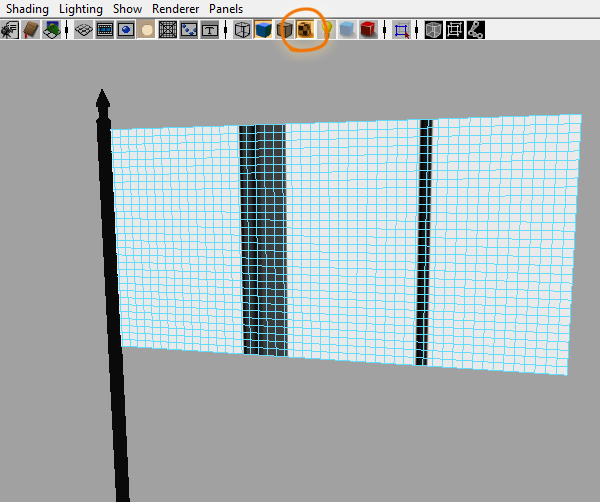

Step 22
Select the option highlighted below so you can see if the texture looks good.
Step 23

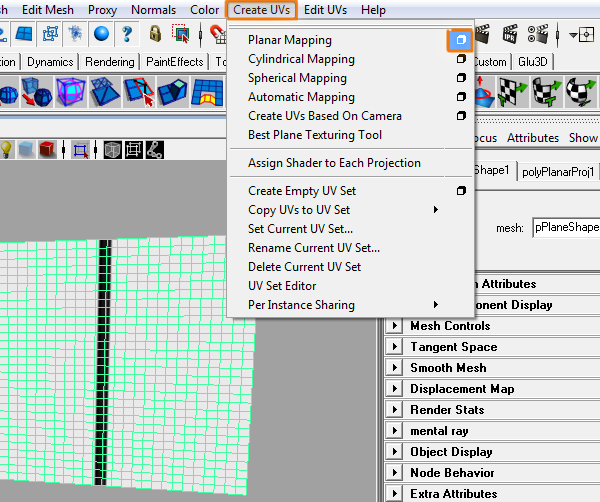

If your texture looks bad like mine, go to “Create UV´s > Planar Mapping (settings)”.
Step 24

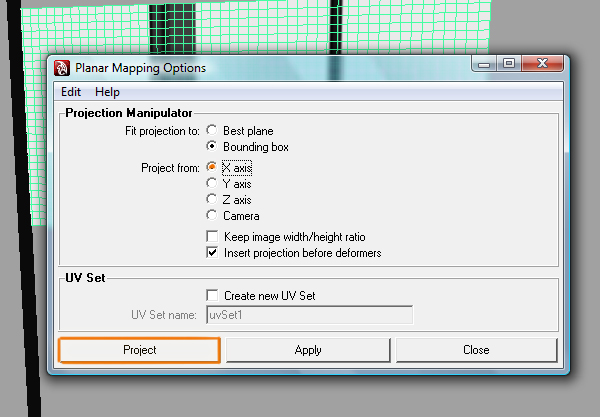

This will open a new window where you can change the projection axis to whatever works for your scene, and then click “Project”.

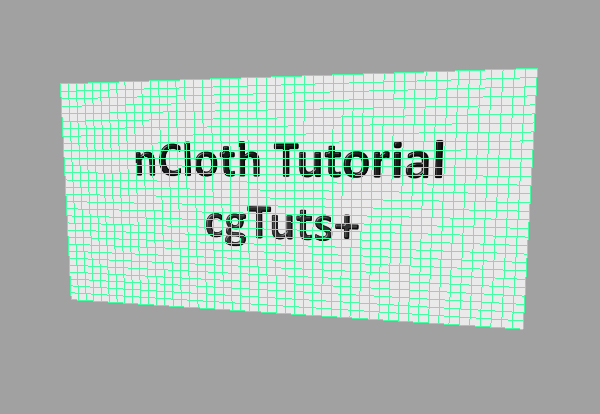

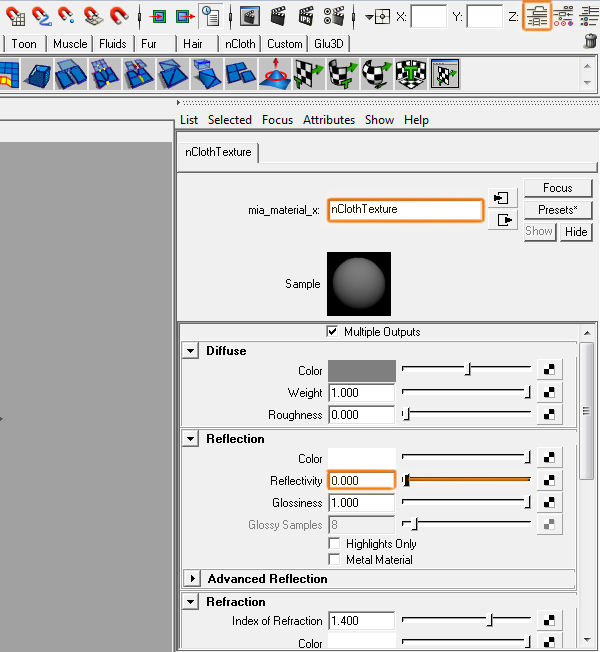

Step 25

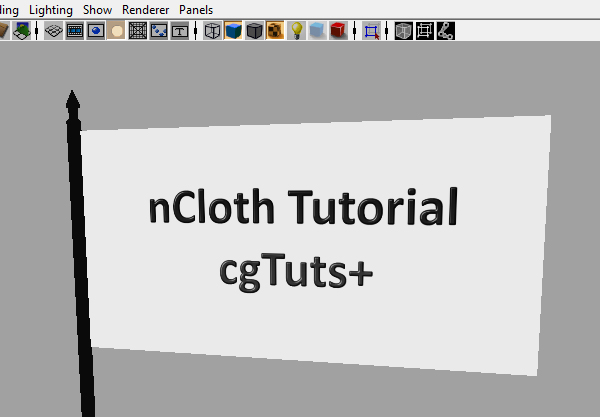

Your flag should now display the texture correctly.

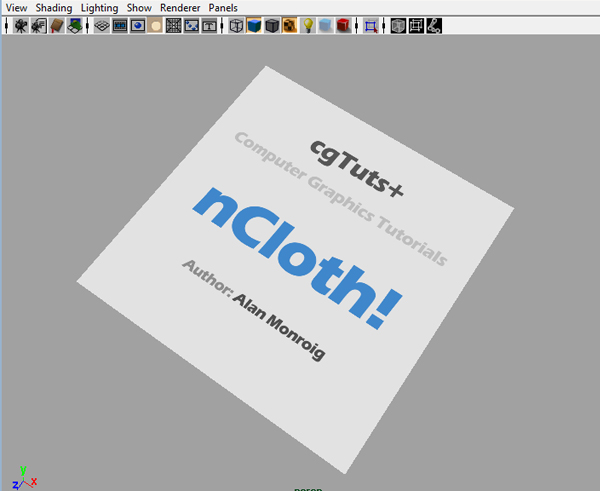

Step 26

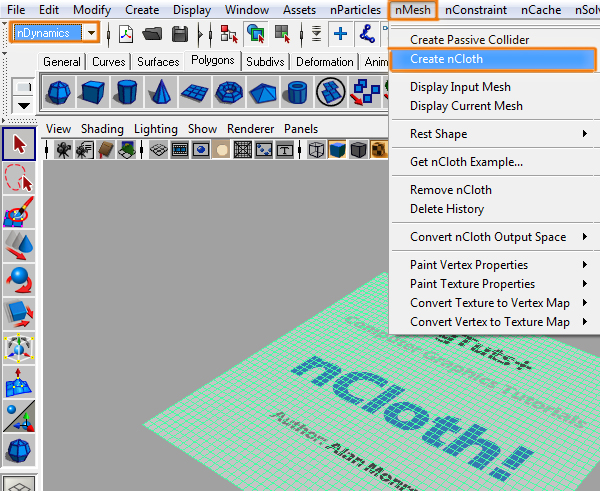

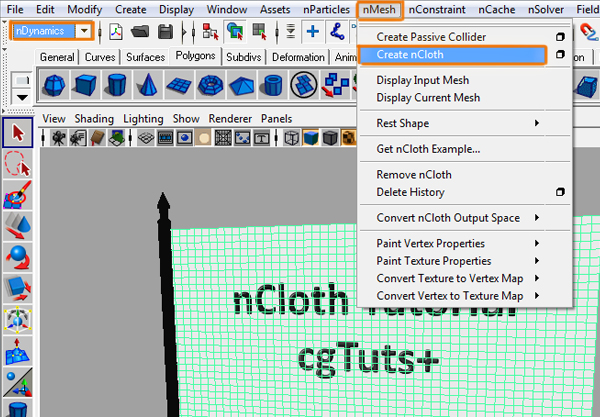

Select the flag, and in the “nDynamics” menu, go to “nMesh > Create nCloth”.
Step 27

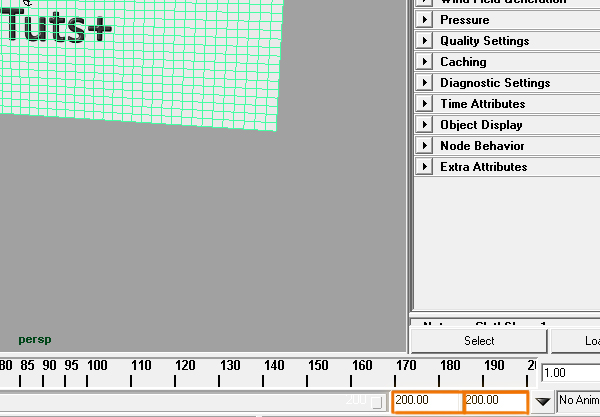

Increase the number of frames of the animation.

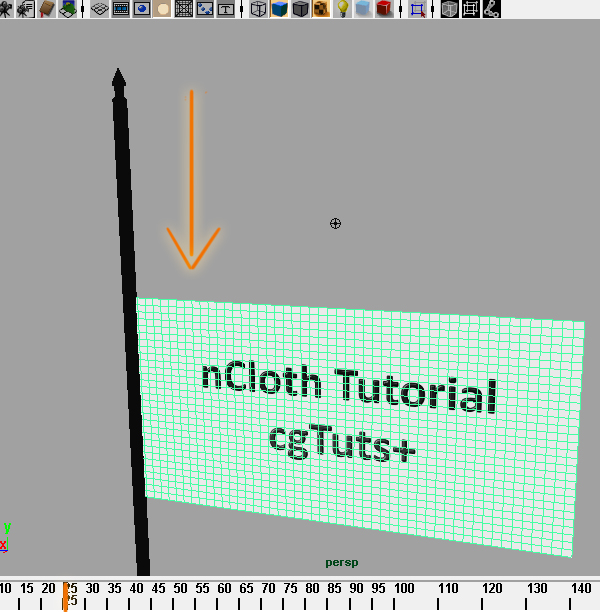

Step 28
If you play the animation now, you will see that the flag just falls down. This is because the flag is not attached to the pole.

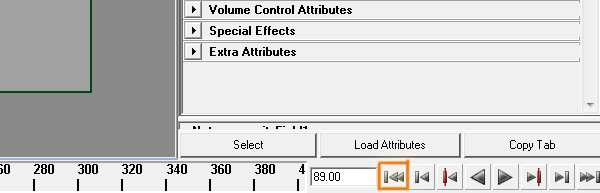

Step 29
Rewind the animation.
Step 30

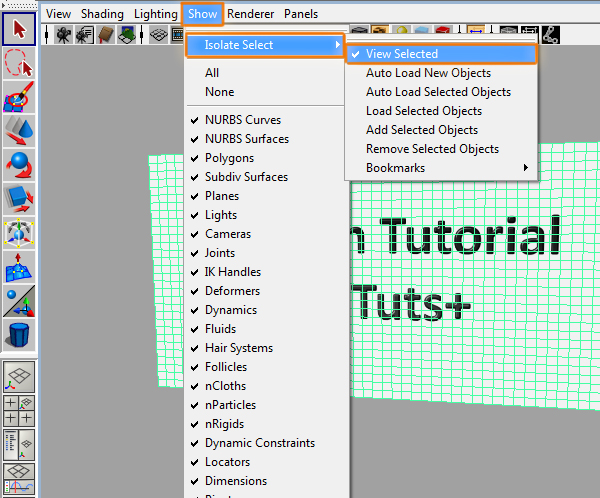

Select the flag, and in the “Window” menu, go to “Show > Isolate Select > View Selected”.
Step 31
You should now only see the flag, which will make it easier to work with.
Step 32

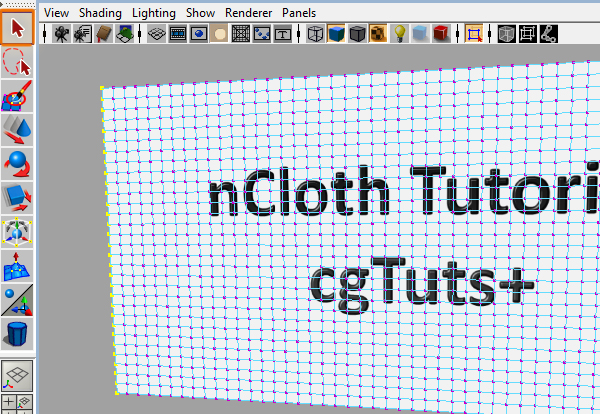

Select all of the vertexes that you want to be attached to the pole.
Step 33

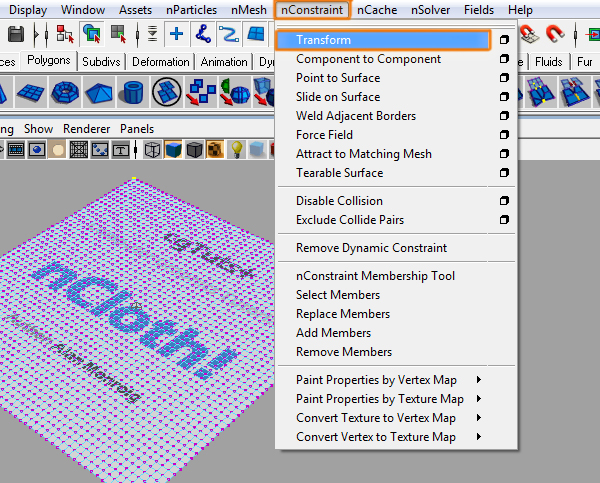

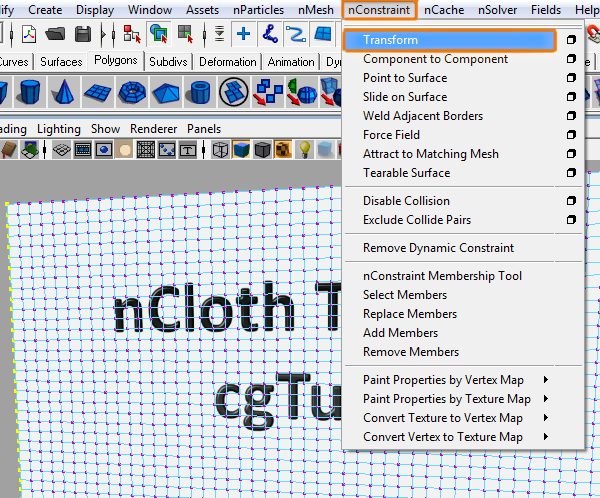

In the “nDynamics” menu, go to “nConstraint > Transform”.
Step 34

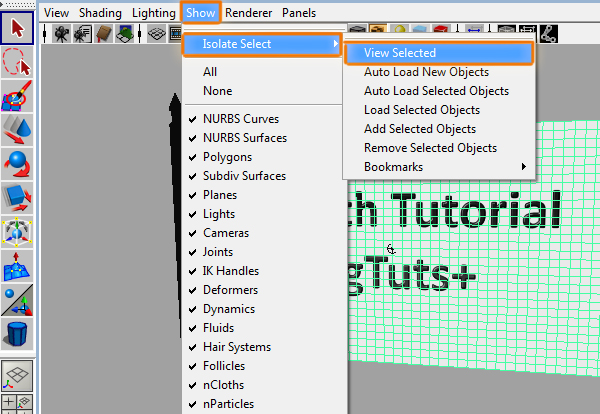

Select the flag, and in the “Window” menu go to “Show > Isolate Select > View Selected” this will make everything visible again.
Step 35

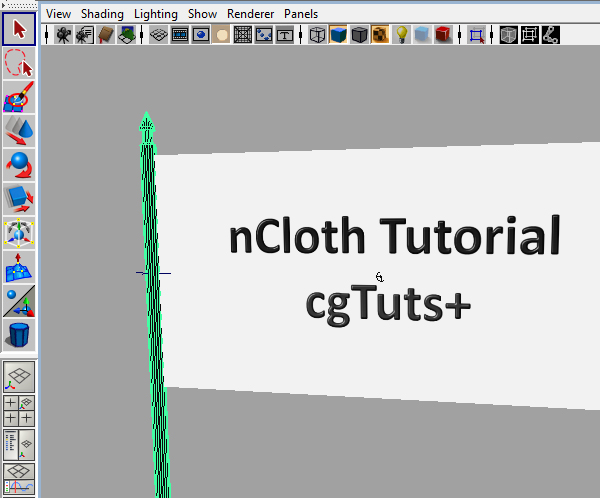

Select the pole.
Step 36

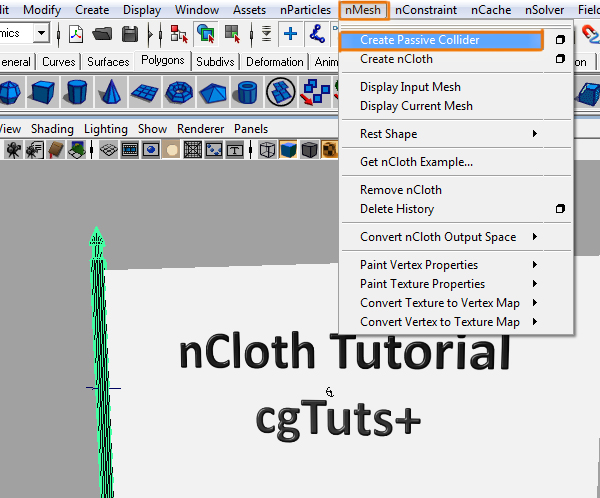

In the “nDynamics” menu, go to “nMesh > Create Passive Collider”.
Step 37

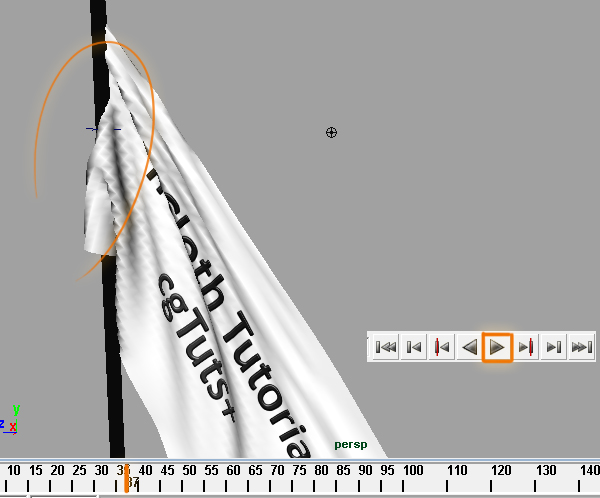

If you play the animation, you should now see the flag hanging from the pole. This is realistic, but an unmoving flag is not very dynamic, so let’s add some wind.
Step 38

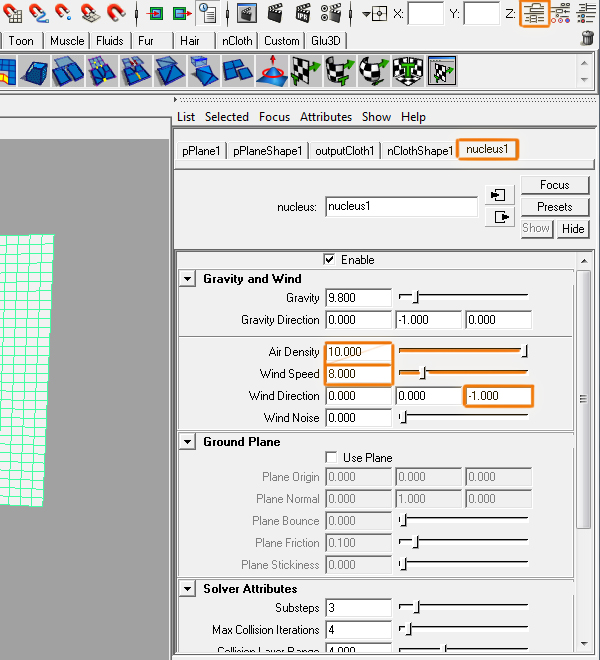

Go to the Attributes Editor of the flag´s “nucleus1”, and in the “Gravity and Wind” section, change the following values:
Step 39

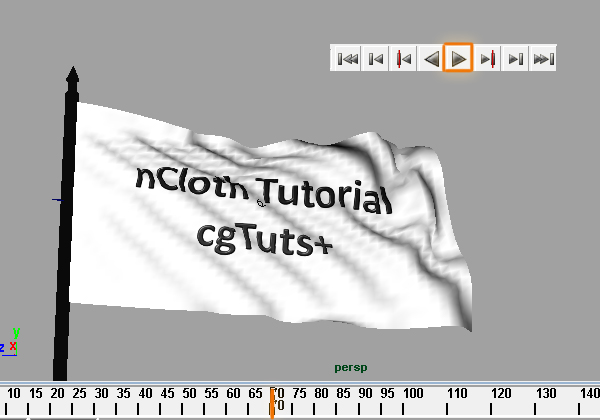

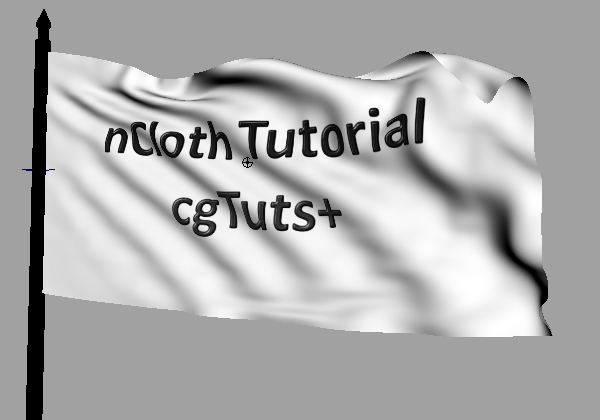

If you play the animation now, it should look pretty good. All you need to do is smooth the polygons by pressing ’3′ on the keyboard (with the flag selected).
Step 40
Perfect! We are done with the first section of this tutorial, just don´t forget to save your scene!
Step 41
Create a new scene, and go to “Create > Polygon Primitives > Plane”.
Step 42

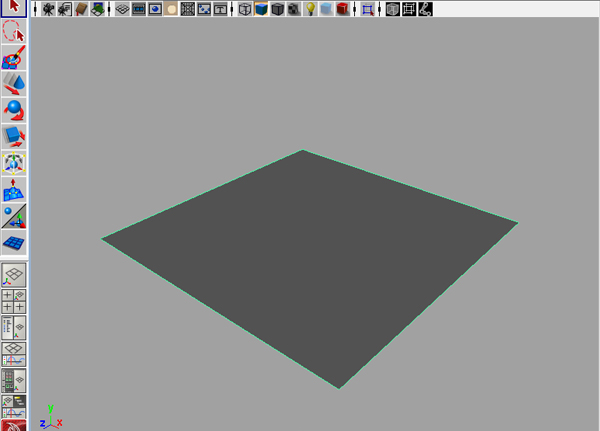

Create a square plane.
Step 43

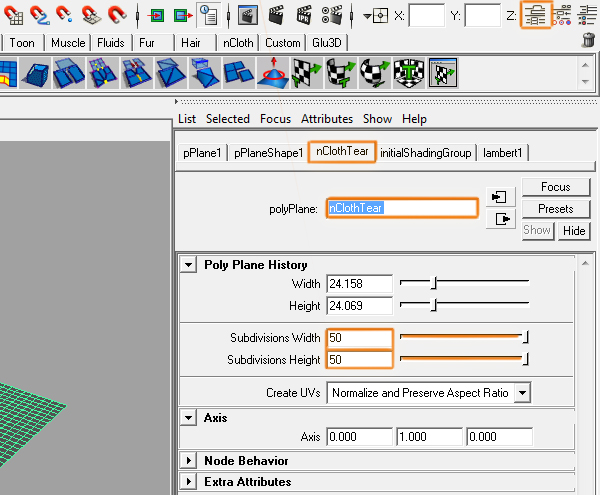

Go to the Attributes Editor of the plane, name it, and change the “Subdivisions Width” to ’50′, and the “Subdivisions Height” to ’50′
Step 44

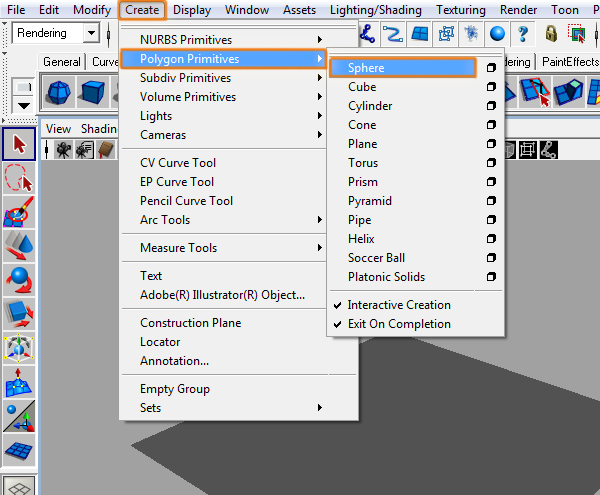

Go to “Create > Polygon Primitives > Sphere”.
Step 45

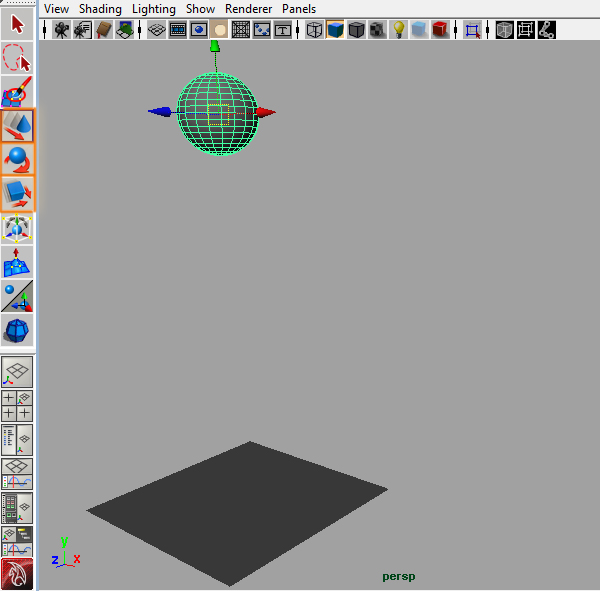

Create a sphere and position it very high above the plane.
Step 46

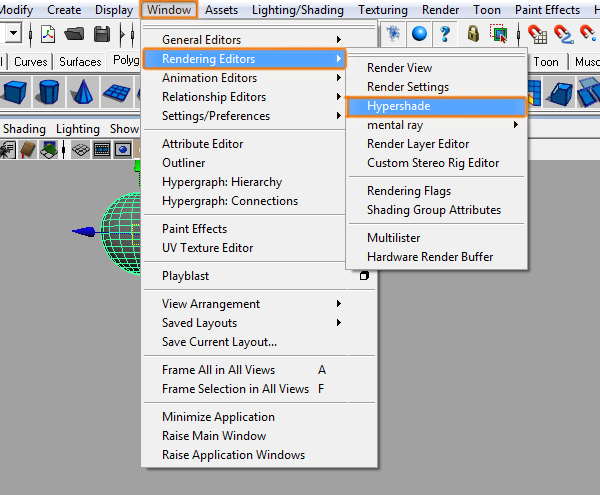

Go to “Window > Rendering Editors > Hypershade”.
Step 47

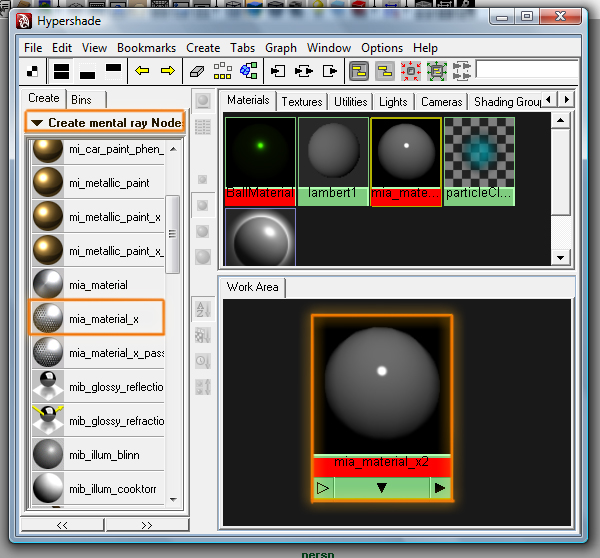

Make sure you have “Create mental ray Nodes” active, and create a new “mia_material_x”.
Step 48

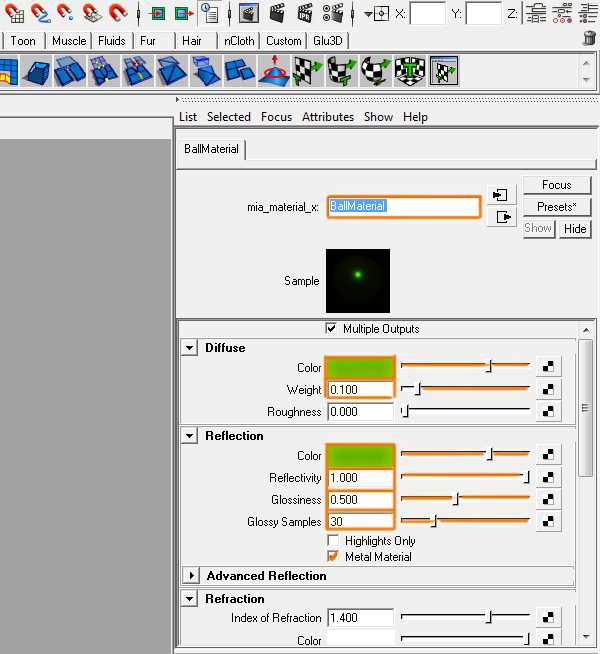

Go to the Attributes Editor of the material, name it, and change the following options:
Step 49

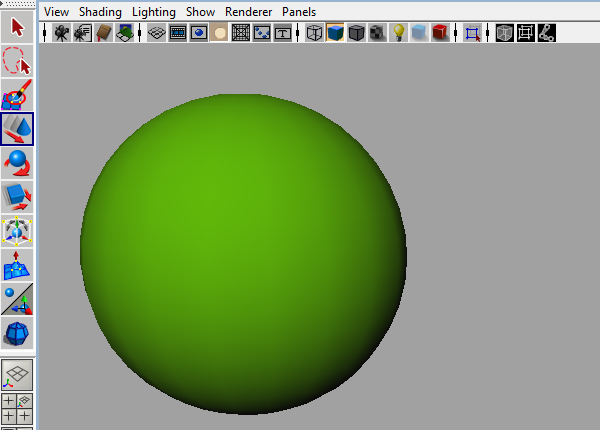

Apply the material to the ball.
Step 50

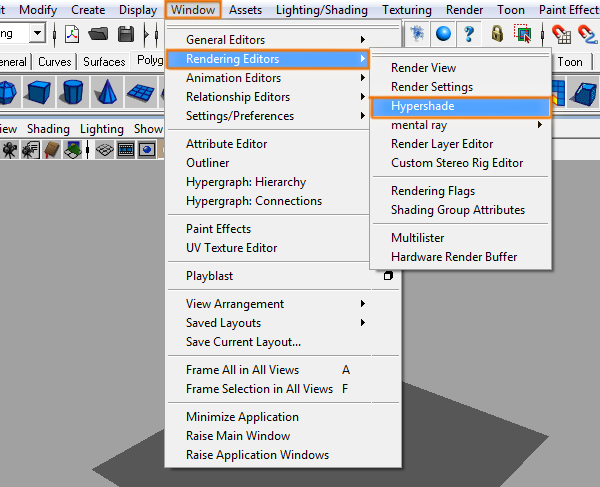

Go to “Window > Rendering Editors > Hypershade”.
Step 51
With “Create mental ray Nodes” active, create a new “mia_material_x”.
Step 52
Go to the Attributes Editor of the material, name it, and decrease the “Reflectivity” value to ’0′.
Step 53
Hit the checkerboard button to the right of the “Diffuse” Color value. This will open the file browser window where you can select the image that you want to use to texture the plane.
Step 54
Apply the material to the plane.
Step 55

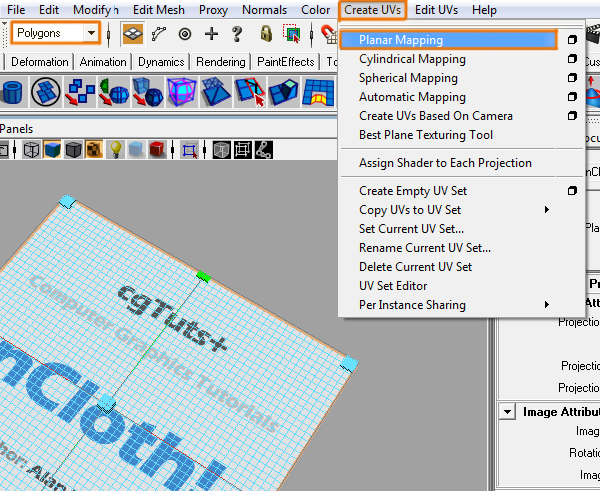

Select the plane, and in the “Polygons” menu, go to “Create UV´s > Planar Mapping”.
Step 56
Select the plane again, and in the “nDynamics” menu, go to “nMesh > Create nCloth”.

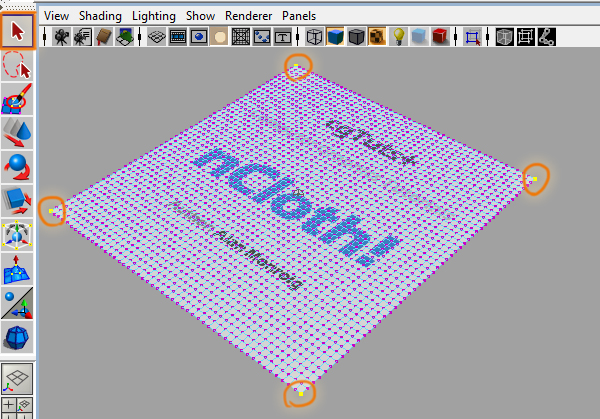

Step 57
Select one vertex from each corner of the plane.
Step 58
With the vertexes still selected, go to the “nDynamics” menu, and choose “nConstraint > Transform”.
Step 59

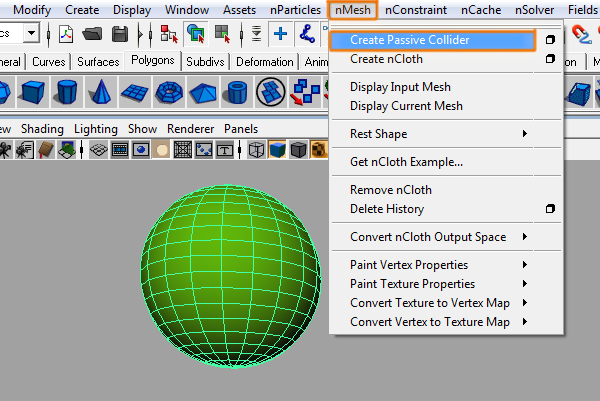

Select the ball, and in the “nDynamics” menu, go to “nMesh > Create Passive Collider”.
Step 60

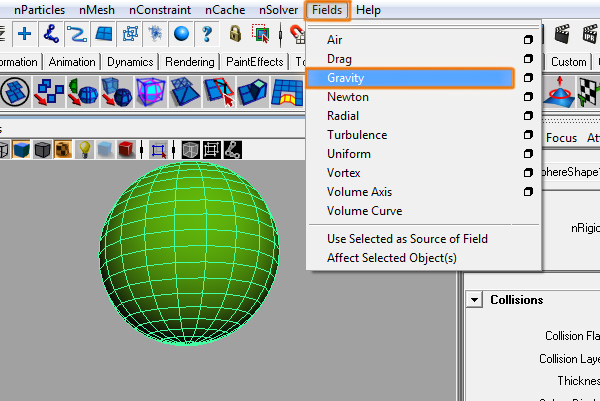

With the ball still selected, go to “Fields > Gravity”.

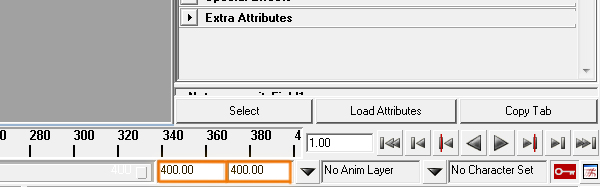

Step 61
Increase the number of frames of the animation.
Step 62
Position your camera.

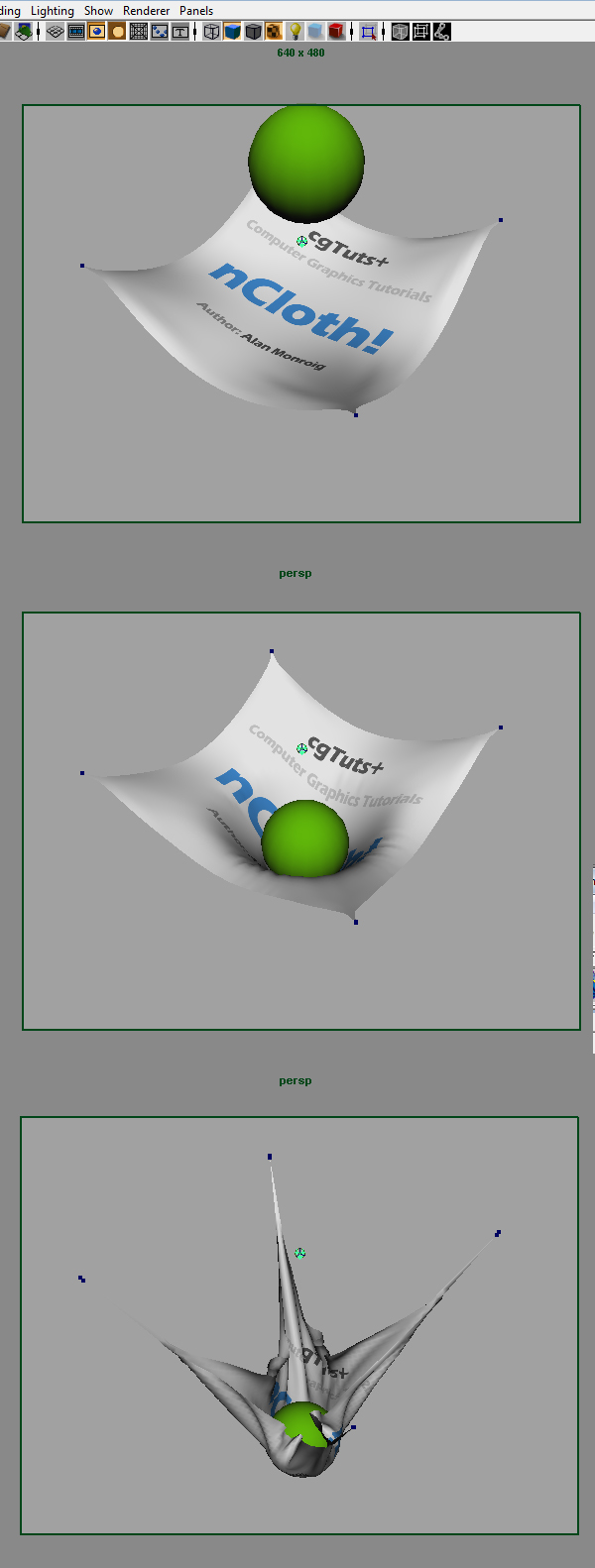

Step 63

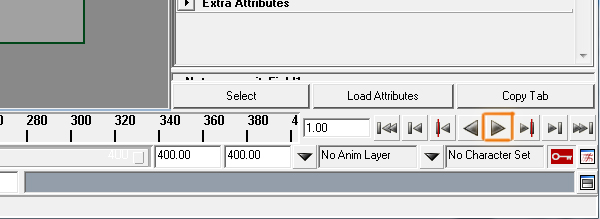

Play the animation.
Step 64
The plane should just stretch instead of tearing.
Step 65

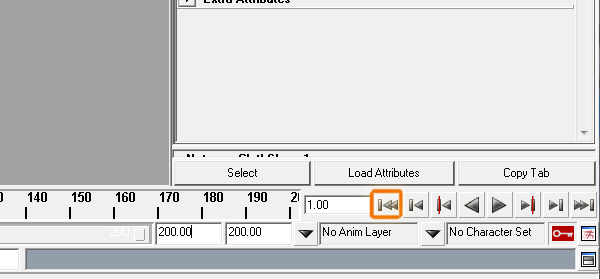

Rewind the animation.

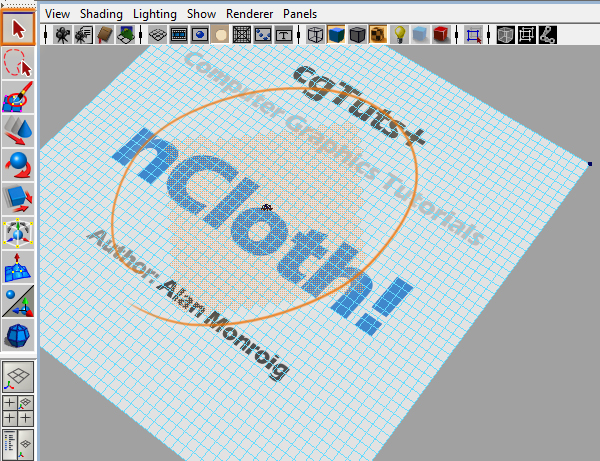

Step 66
Select the faces of the plane that you want to tear.
Step 67

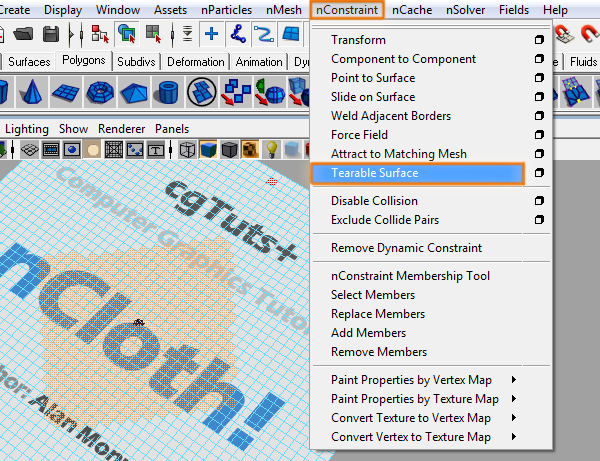

In the “nDynamics” menu, go to “nConstraint > Tearable Surface”.
Step 68
You should see some dots covering the faces you selected.

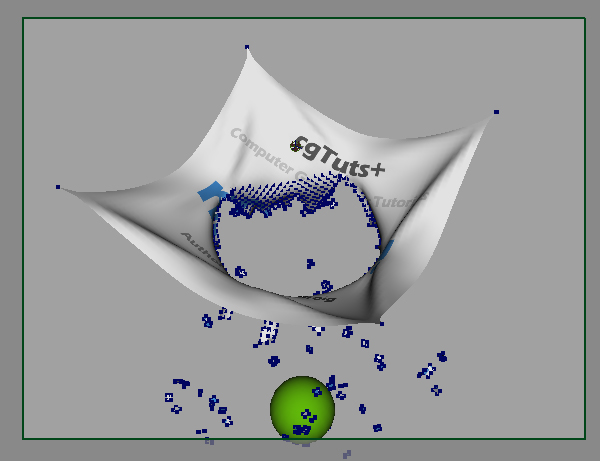

Step 69
If you play the animation now, your plane should tear naturally. End of tutorial! Hope you liked it!!
