Build an Advanced Drifting Car Rig in 3ds Max – Day 1
In this advanced level tutorial, you will learn all of the steps necessary to build a fully functioning car rig in 3D Studio Max. This rig features working suspension, steering and body roll, as well as some functionality for drifting and powerslides. You will learn how to set up internal functionality through links, constraints, expressions, and parameter wiring. The final result will be a robust rig with easy, and accessible controls.
This tutorial is Day 1 in a series – Go to Day 2

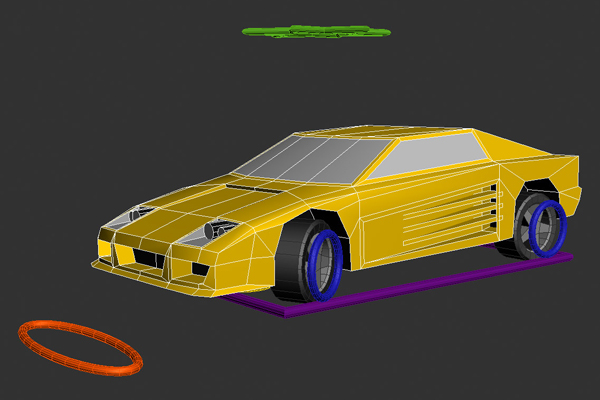

Final Effect Preview
Project Files Download: FinalCarRig.rar
Full Video
Download
Note: click the ‘Monitor’ icon to view tutorial in full-screen HD.
This tutorial is Day 1 in a series – Go to Day 2
Don’t miss more CG tutorials and guides, published daily – subscribe to Cgtuts+ by RSS.
Enjoyed this Post?
Subscribe to our RSS Feed, Follow us on Twitter or simply recommend us to friends and colleagues!
By Laurens Corijn
Join our newsletter!
Create a Tutorial, Get Paid!
Have something to teach the world? Want to earn money doing it? Tutorials, screencasts, and articles published here on Cgtuts+ are largely contributed by readers just like you! We'll pay you great money for good content. Find Out More
