Quick Tip: Understanding Support Edge Placement

on Mar 18th 2011 with 24 comments
Tutorial Details

Final Product What You'll Be Creating

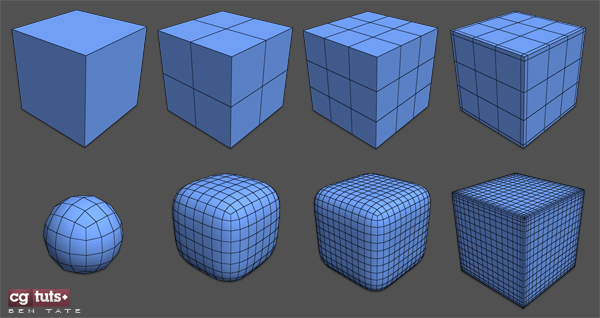

In today’s quick tip we’ll look at the basics of subdivision modeling and why it’s necessary to add extra geometry to a model before adding subdivision. We’ll briefly discuss how subdivision works and how to maintain control over a model’s look after smoothing has been applied.
