Model a Photorealistic Swiss Army Knife in Modo – Day 1

Sep 18th in 3D Art, Luxology Modo by Matt Brealey

Subdivision modeling is an extremely powerful tool that can allow you to add high levels of detail to your models in a relatively short amount of time. In order to use it effectively, however, one must know when, and more importantly, when not to use it.

In this three part, beginner to intermediate tutorial series, professional Modo artist, Matt Braeley, will demonstrate how to model a photorealistic Swiss Army knife, using polygonal and subdivision modeling in Luxology's Modo 302.

PG

Author: Matt Brealey

Matt is currently working as a freelance 3D designer in the UK, trying his hand at VFX work in his free-time. He loves learning new things, finding inspiring graphics, and dreaming up impossible fx shots.

This tutorial is Day 1 in a series - Go to Day 2, or Day 3

On day 1 Matt will be covering the creation of the main body, and on days 2 and 3, he will add in the tools and the final details.

You can download the reference images and scene file here: Reference Files.

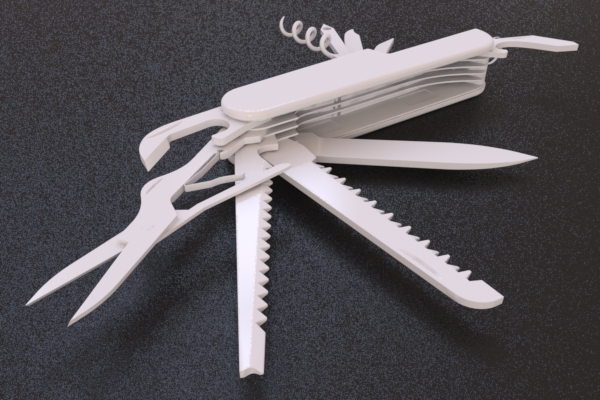

Final Effect Preview


Video 1

Download

Note: click the 'Monitor' icon to view tutorial in full-screen HD.

Video 2

Download

Note: click the 'Monitor' icon to view tutorial in full-screen HD.

This tutorial is Day 1 in a series - Go to Day 2, or Day 3

Don't miss the next part of this incredible tutorial series! Subscribe to Cgtuts+ by RSS.


Enjoy this Post?

We'd love your vote!
